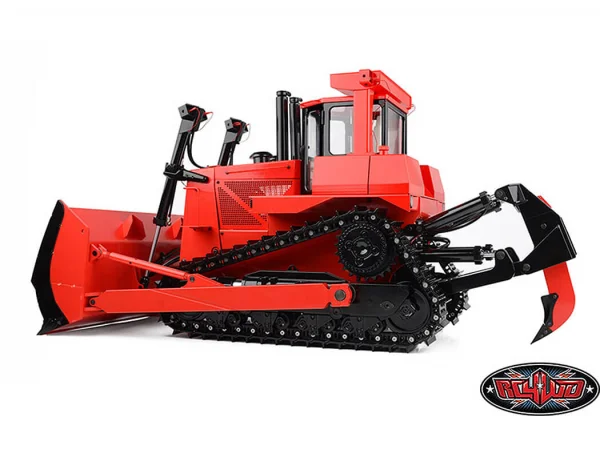

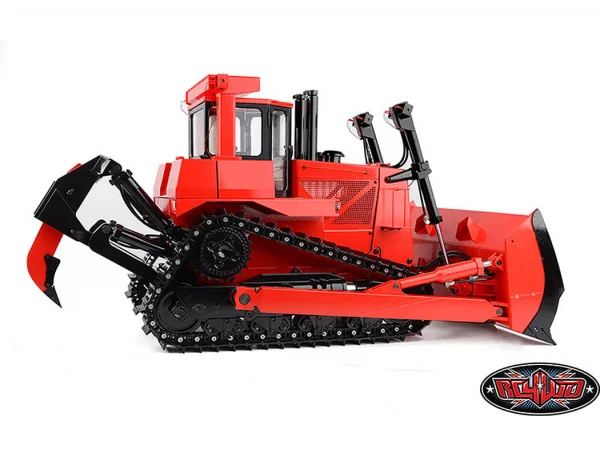

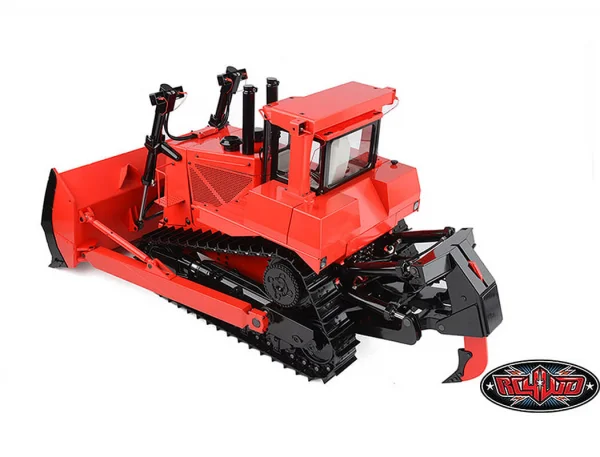

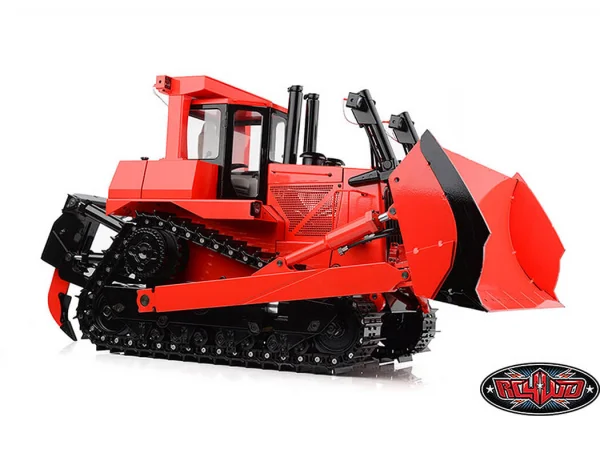

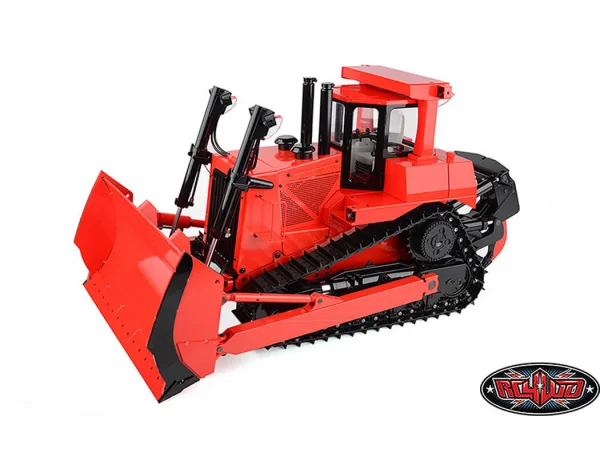

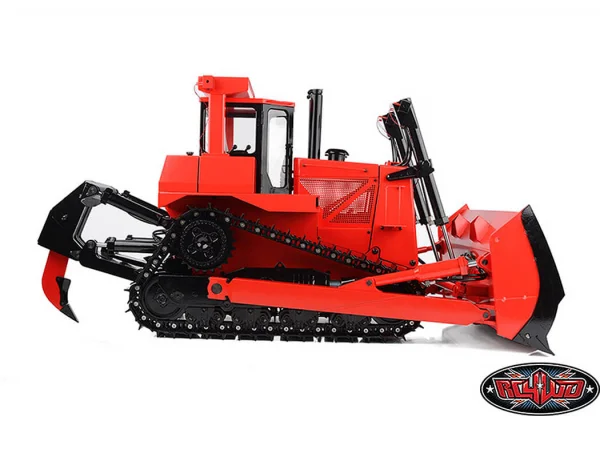

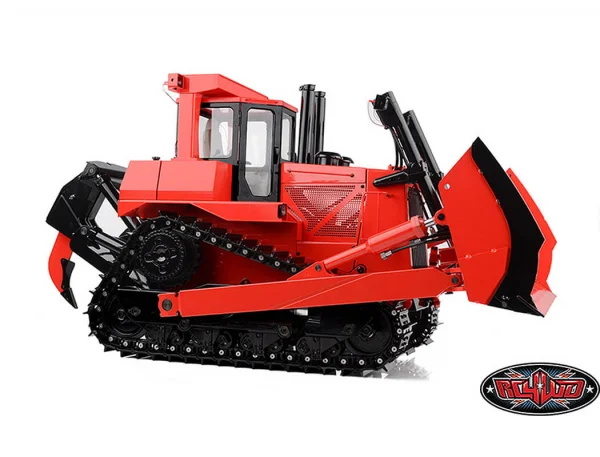

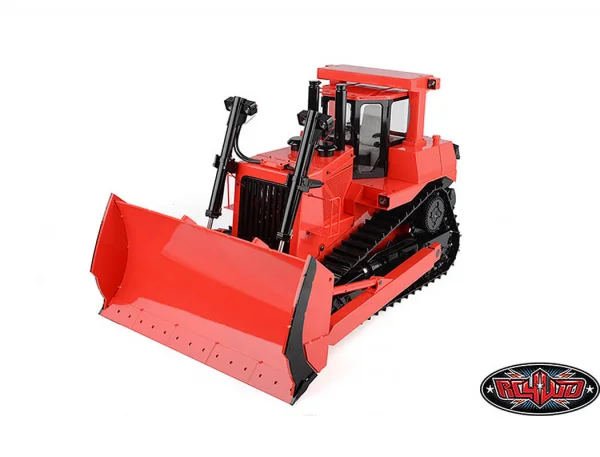

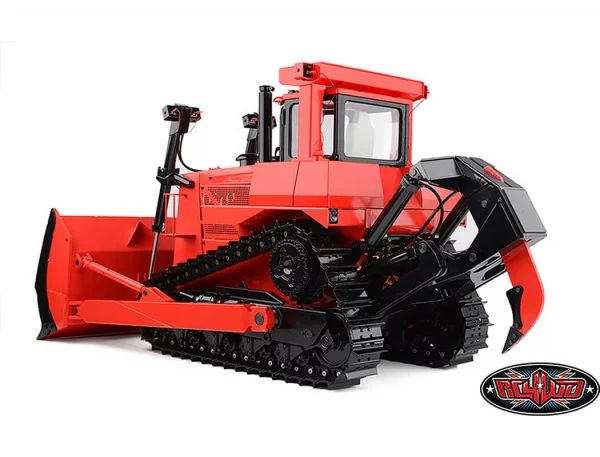

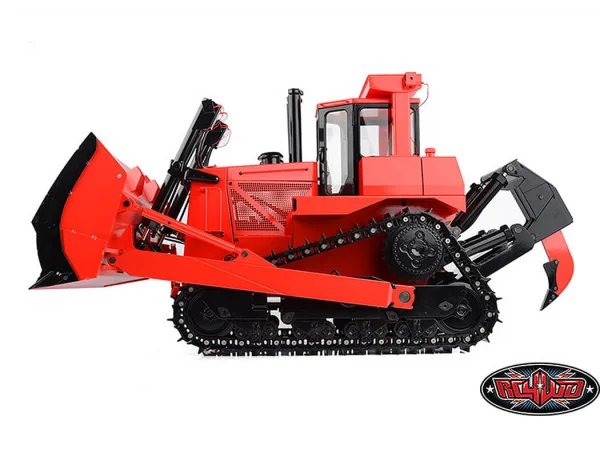

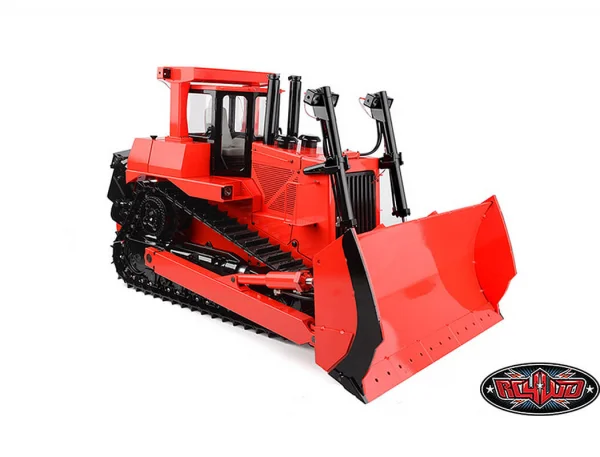

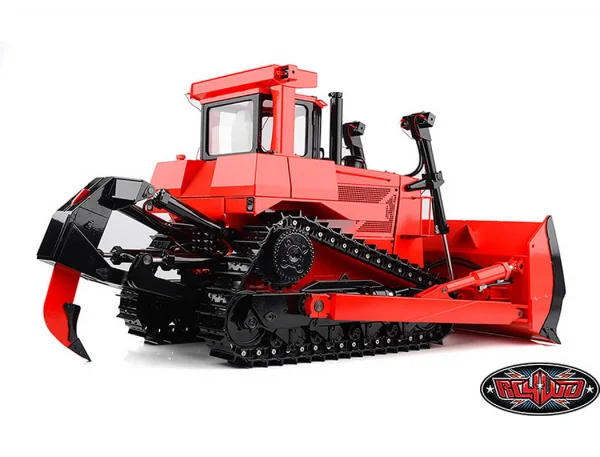

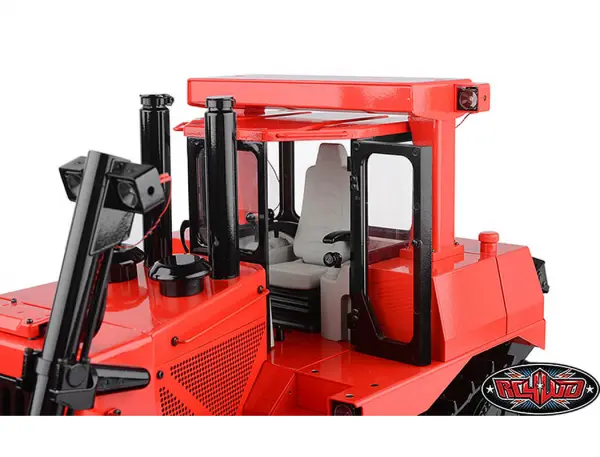

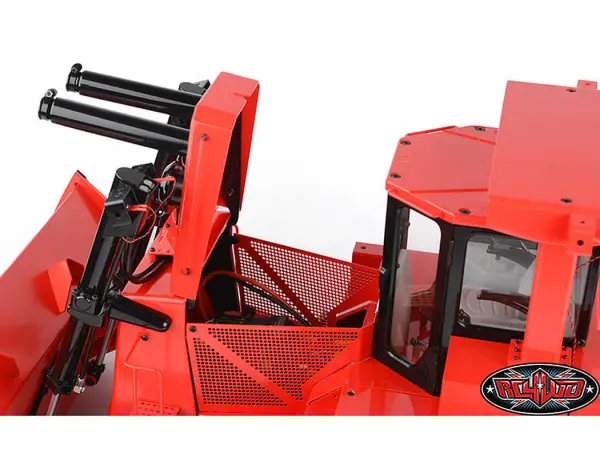

RC4WD 1:14 Scale Dxr2 Hydraulic Earth Dozer (Limited Edition)

The RC4WD 1:14 Scale DXR2 Hydraulic Earth Dozer (Limited Edition) brings pro‑level performance to RC construction. Built around an all‑metal chassis with zinc and aluminium castings and a welded steel bucket, the DXR2 delivers robust power and precision. Part number VV-JD00071 features an optimised steel hydraulic system with a reliable valve and adjustable pump, paired with a brushless hydraulic system and LiPo cutoff for consistent operation. A 540 brushed monster‑torque motor and full metal transmission (1:256 gear ratio) provide smooth, controlled movement, while the included 9‑channel 2.4GHz radio puts advanced functions at your fingertips.

Engineered for demanding jobs, the DXR2 offers strong bucket forces, large capacity, and an all‑terrain metal crawler undercarriage. With a quoted run time of up to 38 minutes using a 5300mAh battery and a driving speed of 408 metres per hour, this limited edition model is designed for serious RC earthmoving enthusiasts.

Key Features

• Alloy zinc and alloy aluminium casting (except track and hydraulic pump)
• Welded steel bucket
• 9‑channel 2.4GHz radio
• Heavy‑duty hoses (OD 3.2mm nylon, ID 2.2mm)
• Main heavy‑duty hoses (OD 4mm nylon, ID 2.5mm)
• Optimised steel hydraulic system
• Reliable hydraulic valve and adjustable pump
• Brushless hydraulic system
• LiPo cutoff
• Full metal scale construction

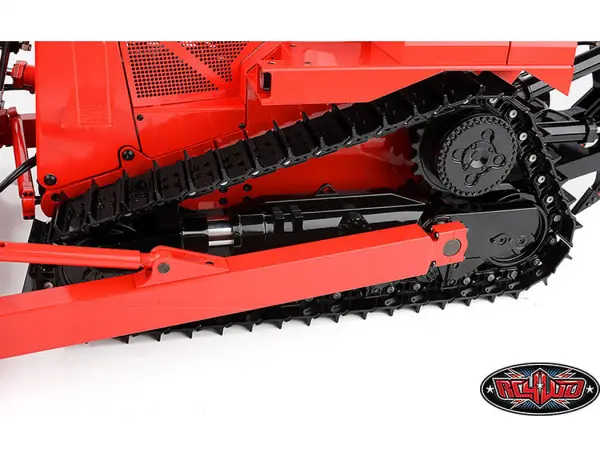

• All‑terrain metal crawler
• 540 brushed monster torque motor
• Full metal transmission (1:256 gear ratio)
• Run time: 38 minutes (5300mAh battery)
• Chrome steel oil pump (47.5mm x 35mm x 36mm)
• Large bucket capacity
• Maximum bucket force (down): 76kg / 167 pounds
• Maximum bucket force (up): 50kg / 110 pounds
• Maximum bucket force (thrust): 50kg / 110 pounds
• Driving speed: 408 metres per hour

Specifications

• Scale: 1:14
• Length: 27 in / 685 mm
• Width: 13.8 in / 351 mm
• Height: 12.7 in / 323 mm
• Bucket height: 6.87 in / 174.6 mm
• Maximum bucket up/down angle: 29 degrees
• Maximum bucket tilt angle (left/right): 9 degrees

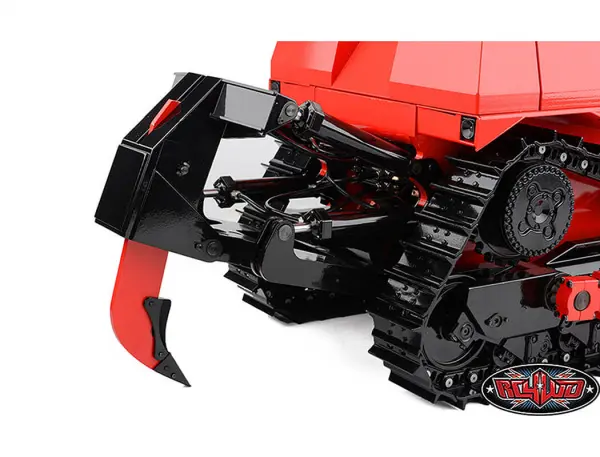

• Maximum ripper depth of the ground: 1.97 in / 50 mm
• Total mass load: 37 kg / 82 lbs
• Operating oil pressure: 25 bar / 362.5 psi
• Dead weight: 26 kg / 57 lbs

What’s Included

• 1 x 1:14 Scale DXR2 Hydraulic Earth Dozer (Limited Edition)

Notes

• Check all hardware is secure after shipping; consider thread lock on appropriate metal‑to‑metal screws.

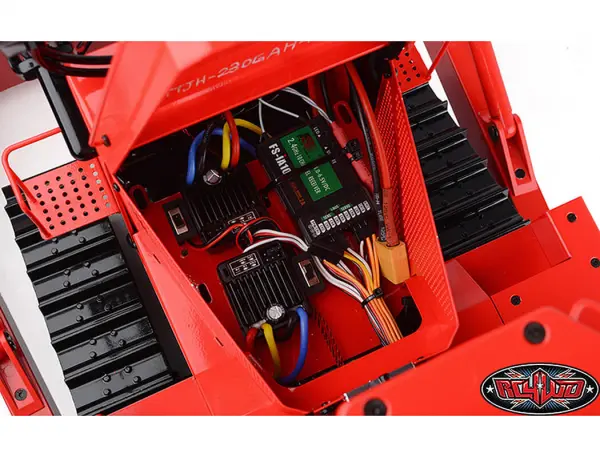

• ESC supports bullet connector.
• Use good quality hex drivers to avoid stripping screw heads.
• Steps marked with an asterisk (*) require thread lock; use sparingly.
• Do not overtighten screws to avoid stripping threads.
• Do not adjust the oil pressure switch.
• Each unit is professionally assembled, adjusted and tested.
• Oil pressure may drop over time with use.
• Recommended battery size within 140 x 40 x 44 mm (L x W x H).
