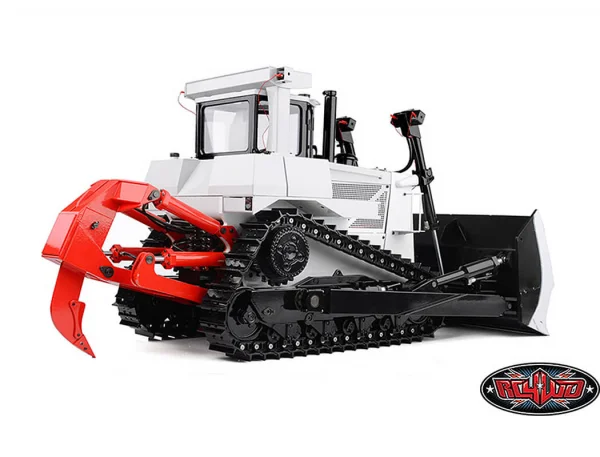

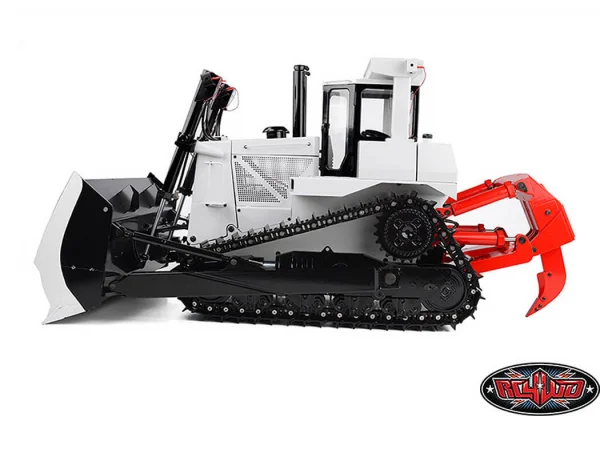

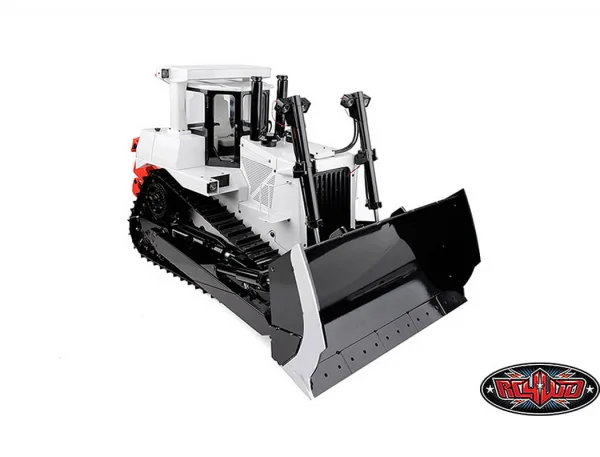

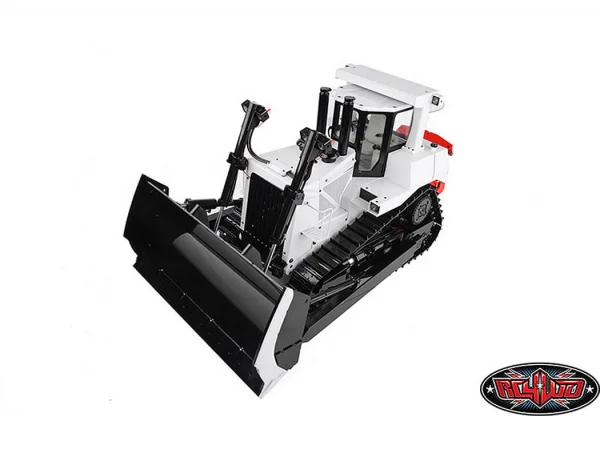

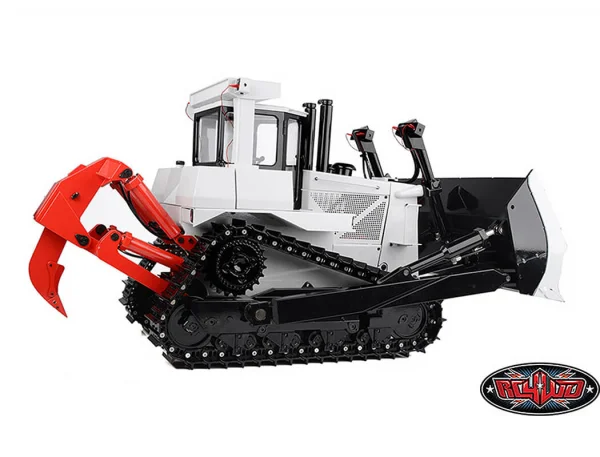

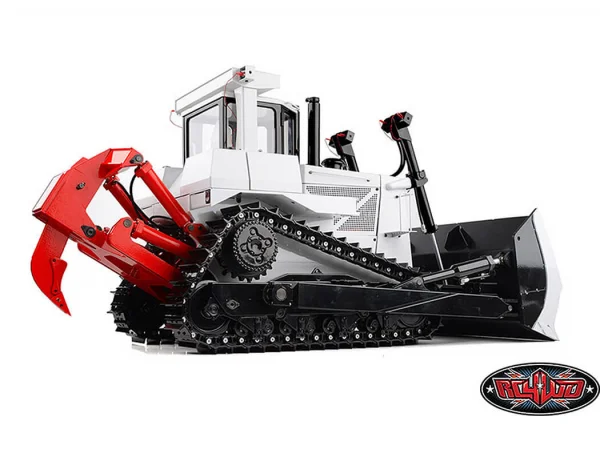

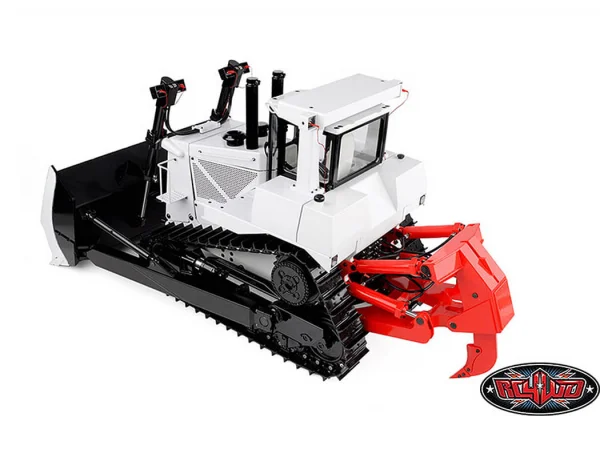

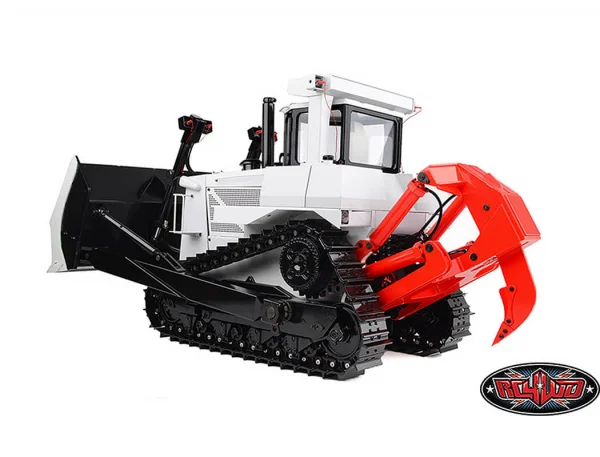

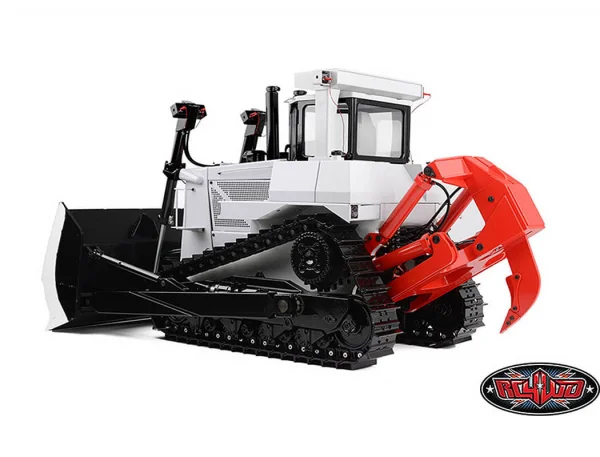

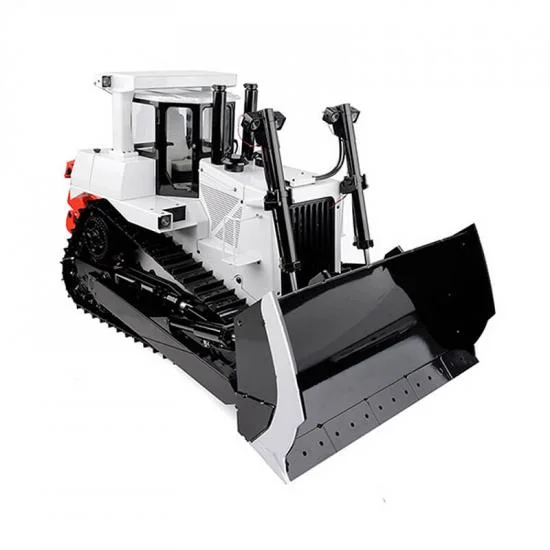

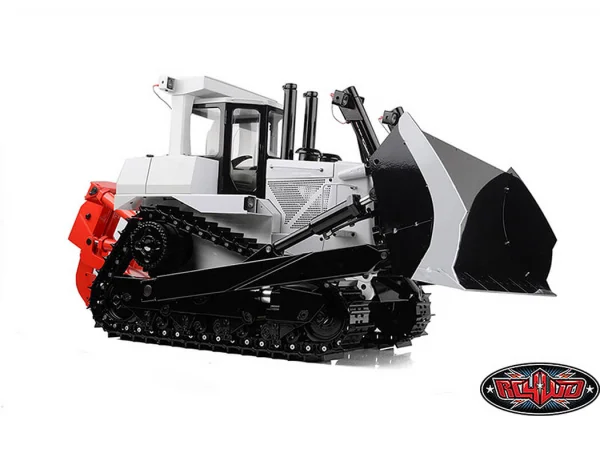

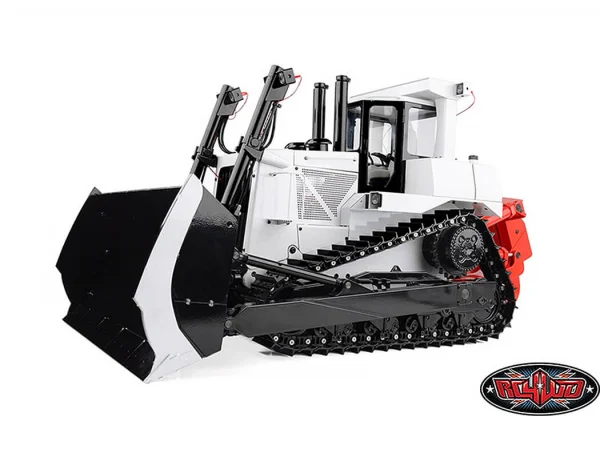

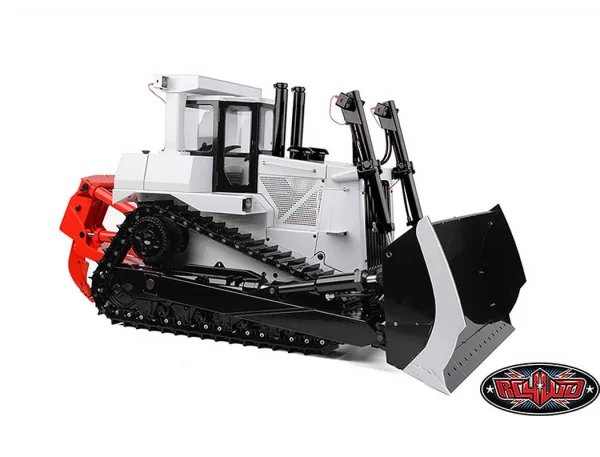

RC4WD 1:14 Scale Dxr2 Hydraulic Earth Dozer RTR (White)

The RC4WD 1:14 Scale DXR2 Hydraulic Earth Dozer RTR (White) combines rugged, full‑metal construction with a refined hydraulic system for powerful, realistic operation on your RC construction site. Precision cast alloy zinc and aluminium components, a welded steel bucket and an optimised steel hydraulic system deliver dependable performance and control straight out of the box.

Supplied ready to run with a 9‑channel 2.4GHz radio, the DXR2 pairs a brushless hydraulic system with a 540 brushed monster‑torque drive motor and a full‑metal transmission for smooth, controlled digging and dozing. RC4WD part number VV-JD00072.

Features

• Alloy zinc and alloy aluminium casting (except track and hydraulic pump)
• Welded steel bucket with large capacity
• 9‑channel 2.4GHz radio system
• Heavy duty hoses: OD 3.2mm nylon, ID 2.2mm
• Main heavy duty hoses: OD 4mm nylon, ID 2.5mm
• Optimised steel hydraulic system with reliable valve and adjustable pump
• Brushless hydraulic system with chrome steel oil pump (47.5mm x 35mm x 36mm)
• LiPo cutoff

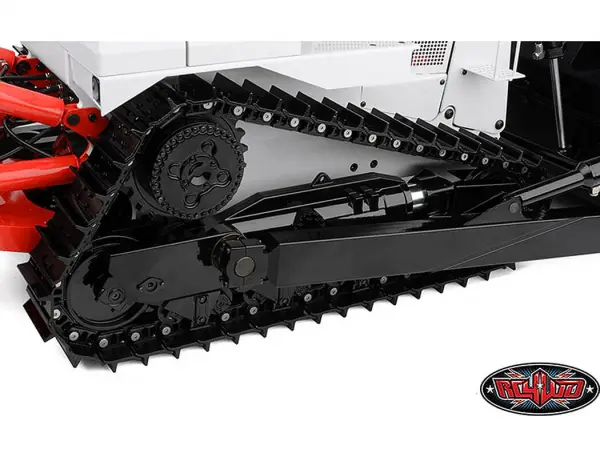

• Full metal construction; all‑terrain metal crawler
• 540 brushed monster‑torque motor
• Full‑metal transmission (1:256 gear ratio)
• Run time: up to 38 minutes with a 5300mAh battery
• Maximum bucket force (down): 76kg / 167lb
• Maximum bucket force (up): 50kg / 110lb
• Maximum bucket force (thrust): 50kg / 110lb
• Driving speed: 408 metres per hour

Specifications

• Scale: 1:14
• Length: 685mm (27in)
• Width: 351mm (13.8in)
• Height: 323mm (12.7in)
• Bucket height: 174.6mm (6.87in)
• Maximum bucket up/down angle: 29 degrees
• Maximum bucket tilt angle (left/right): 9 degrees

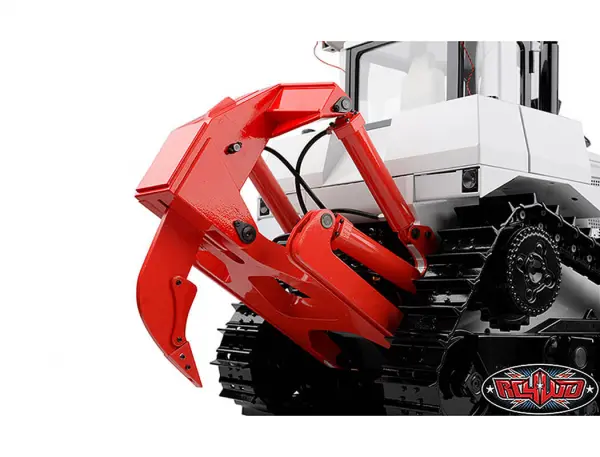

• Maximum ripper depth: 50mm (1.97in)
• Total mass load: 37kg (82lb)
• Operating oil pressure: 25 bar (362.5 psi)
• Dead weight: 26kg (57lb)

What’s Included

• 1 x 1/14 Scale DXR2 Hydraulic Earth Dozer RTR (White)

Important Notes

• Some components may arrive pre‑assembled. Check all hardware is secure after shipping; use thread lock on metal‑to‑metal screws as required.

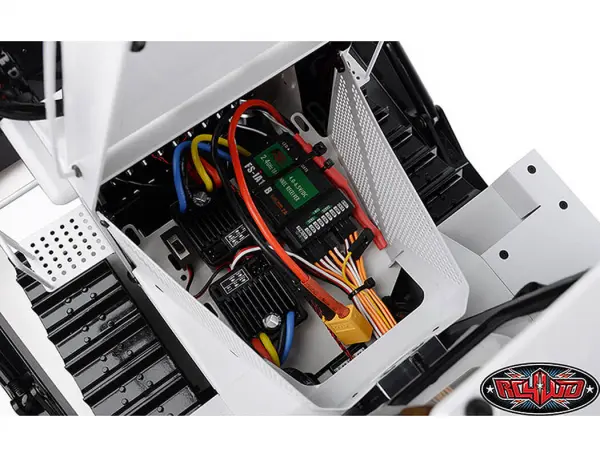

• ESC supports bullet connector.
• Use good quality hex drivers and avoid overtightening to prevent stripped threads.
• Steps marked with an asterisk (*) require thread lock; use sparingly.
• Do not adjust the oil pressure switch.
• Each unit is professionally assembled, adjusted and tested; oil pressure may drop over time with use.
• Recommended battery size envelope: up to 140 x 40 x 44mm (L x W x H).
