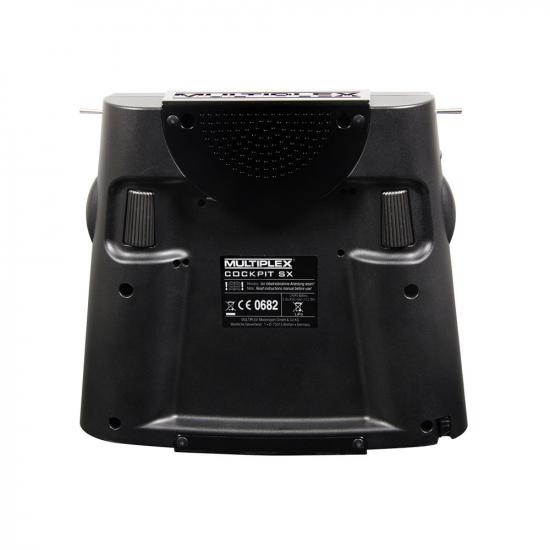

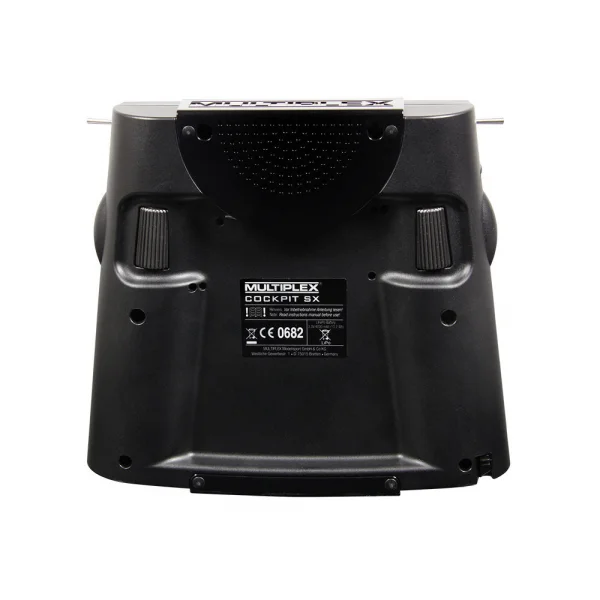

Multiplex Cockpit SX 9 Transmitter Only MPX45161
Brand: Multiplex
Part No: MPX45161
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the COCKPIT SX 9 Transmitter Only
Description

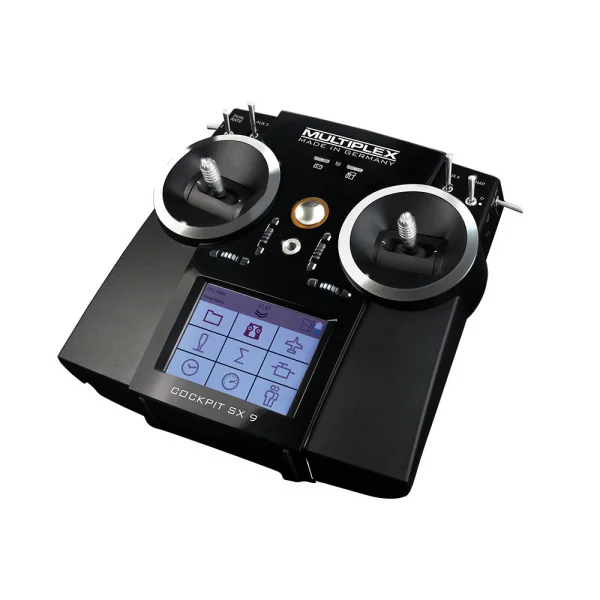

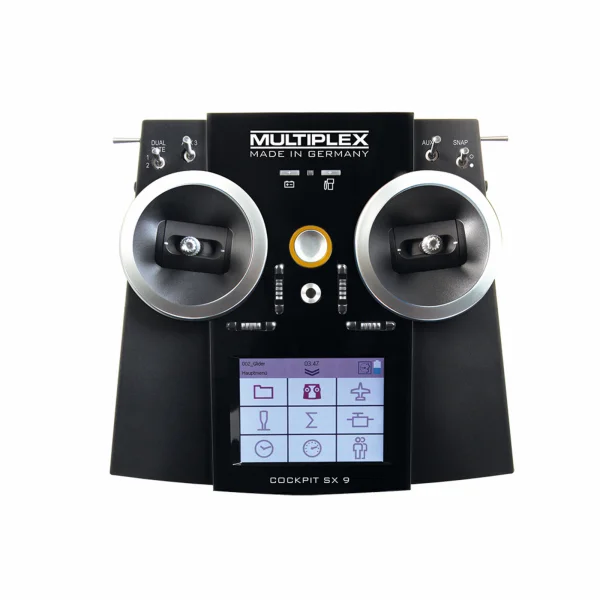

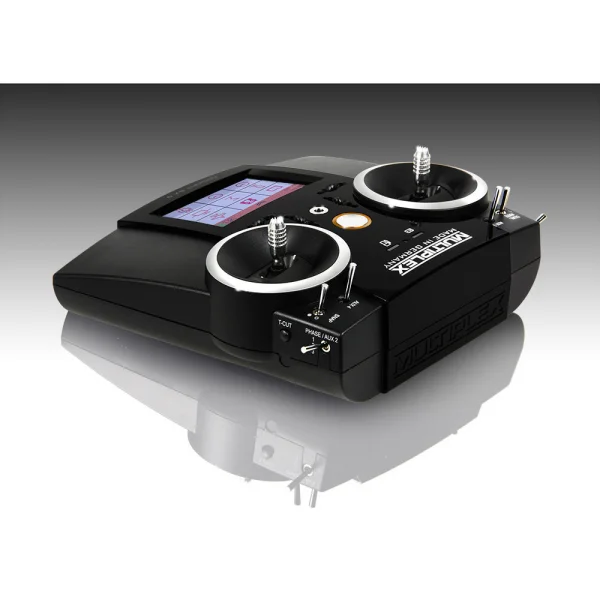

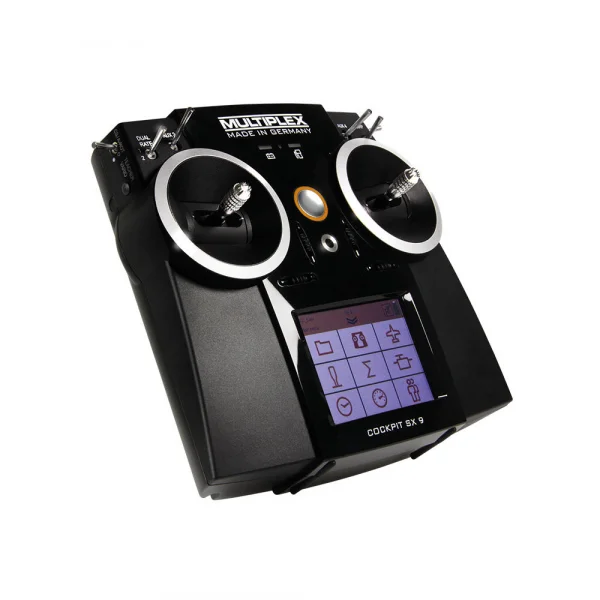

The Multiplex COCKPIT SX 9 Transmitter Only (MPX45161) is a 9-channel M-LINK radio transmitter for model aircraft, helicopters and multicopters, supplied as the transmitter alone. Developed and built in Germany, it is aimed at both beginners and more demanding leisure pilots. It uses M-LINK digital transmission with nine fully proportional channels, an integral aerial and a choice of analogue or digital servo mode.

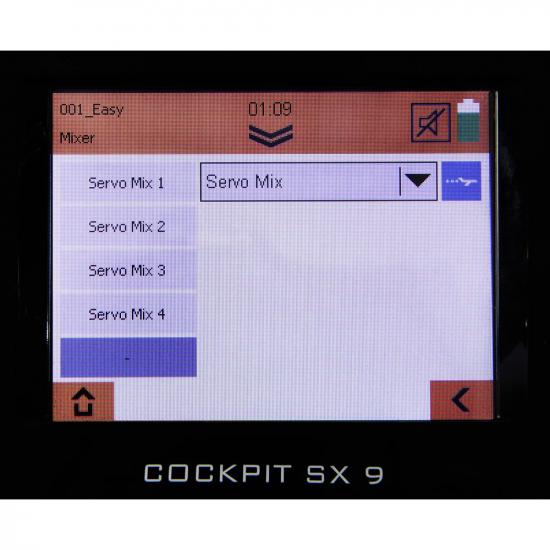

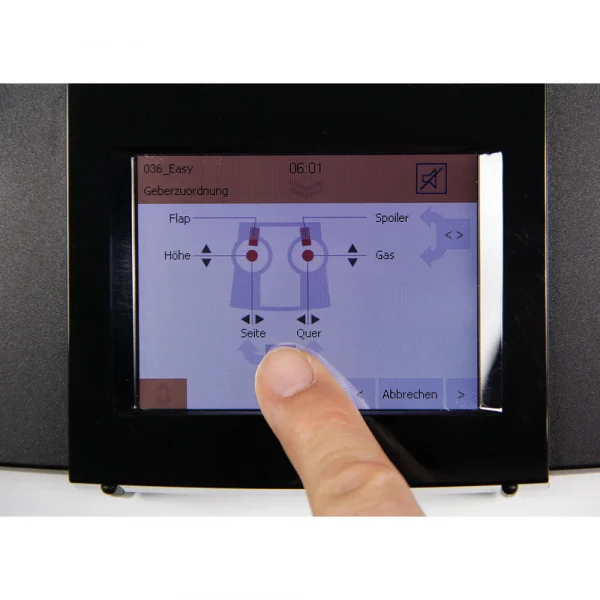

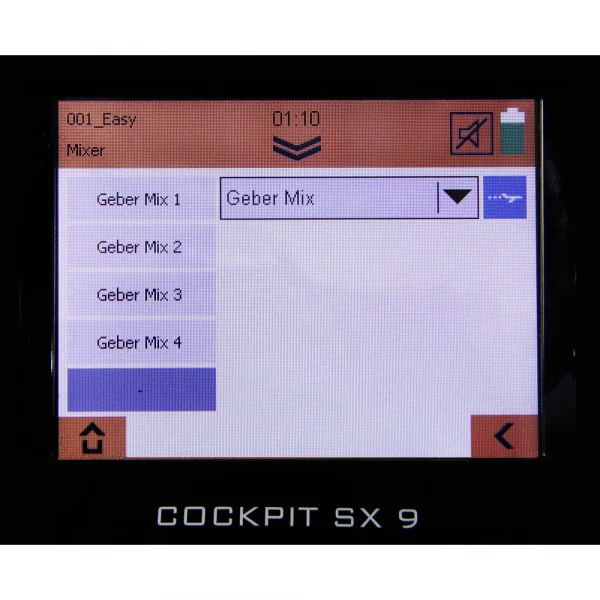

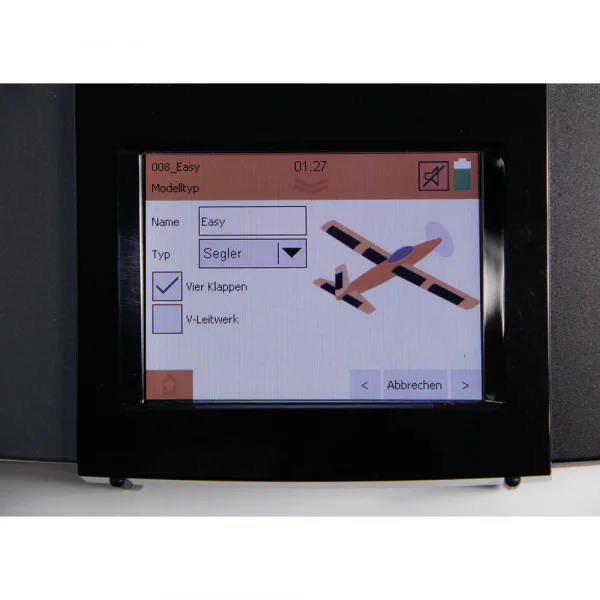

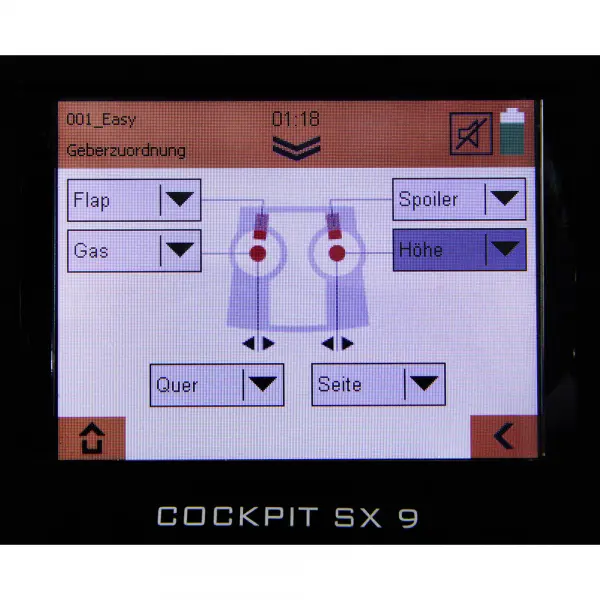

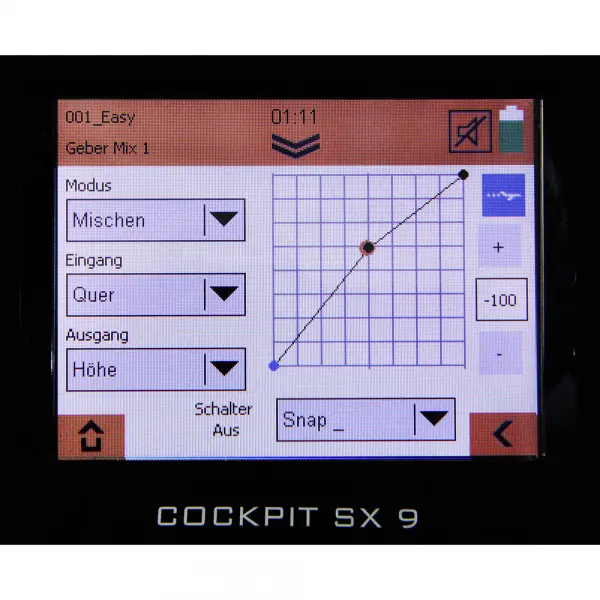

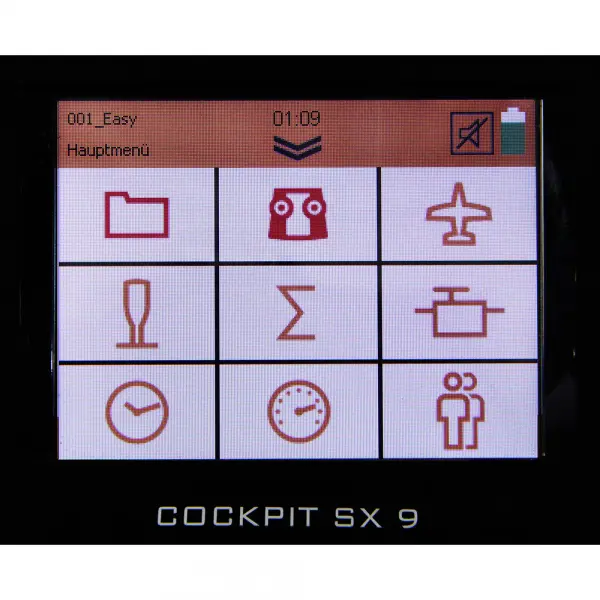

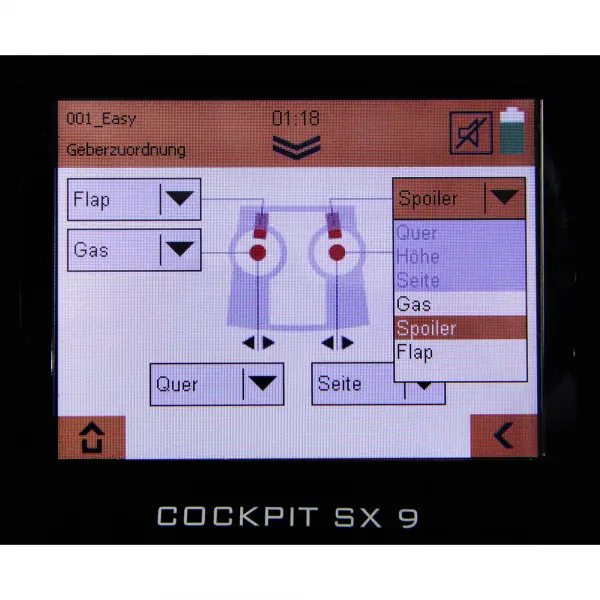

The 3.5-inch full-colour TFT touch screen measures 320 x 240 pixels and shows information as symbols and large letters and numerals. It has day and night switching and can be read in sunlight without backlighting. The menus are laid out like a smartphone, and a Model Assistant guides you through programming. Up to 200 model memories are managed through an SD card, and a multi-function USB socket handles PC connection and firmware updates.

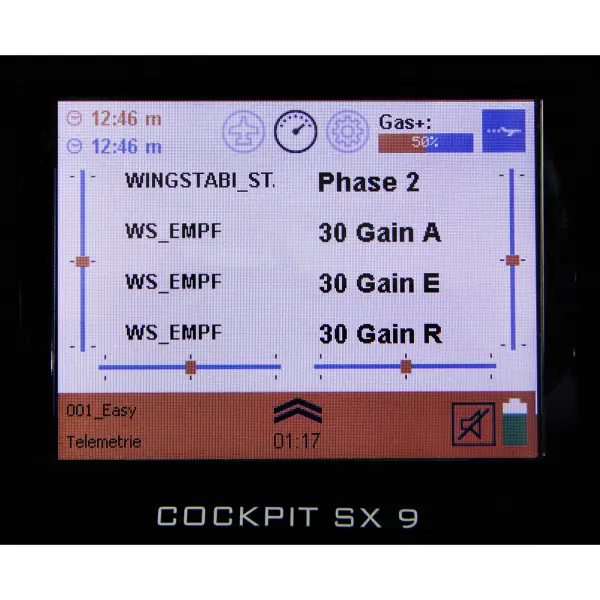

Speech output is a main feature, with more than 450 words, numbers and phrases played through the loudspeaker or an earphone socket. The transmitter can announce telemetry values and alarms so you do not need to look at the screen. Up to eight telemetry sensors can be connected, covering measurements from current to temperature, and the optional Flight Recorder can store telemetry data in the model. Vibration alarms and three timers with speech output are also included.
Programming covers gliders, V-tails, fixed-wing power and aerobatic models, delta jets, flying wings, helicopters (120 degree CCPM and 90 degree flybarless) and multicopters. Fixed-wing models get three flight phases and helicopters four, with dual rate and expo, aileron differential, butterfly mixing and nine-point throttle and pitch curves. A wireless trainer system works with the optional Co-Pilot module, allowing the transmitter to act as instructor or pupil set alongside any M-LINK transmitter with a trainer facility. Selective Trainer Mode lets the instructor hand over all controls or only chosen functions, and take back control by moving the sticks. The gimbals use quadruple ball races, and operating time is up to 24 hours.
What's Included
- 9-channel transmitter
- Charge lead (USB A-plug to USB mini-B 5-pin)
- Instruction manual
- Neck strap eyelet
- Decal sheet
Specifications
- Length: 190 mm
- Height: 210 mm
- Width: 60 mm
- Weight: 846 g
Secured by Stripe
COCKPIT SX 9 Transmitter Only Manuals & Guides
Specifications
Developed and built in Germany, the Multiplex Cockpit SX 9 is perfectly suited to both the forward-looking beginner and the demanding leisure pilot. Offering a full-colour TFT touch-screen of 320 x 240 pixels, pilot information is offered via symbols and large, clearly legible letters and numerals. Its visible in sunlight, too, without backlighting, which makes it perfect for R/C flying. Boasting a highly intuitive programming logic that includes many self-explanatory graphics, plus super-convenient SD card management of the 200 internally stored model memories, youll quickly grow to love its user-friendly persona.
Since were beginning to get used to our transmitters talking to us - whod have thought it? - many R/C flyers are now looking for a radio with speech output, and in this respect the SX 9 leads the way with more than 450 words, numbers and phrases in its vocabulary. In fact, where speech is concerned its one of the most advanced systems of its type ever to have been incorporated in a hand-held transmitter. This, of course, keeps you aware of critical telemetry data and transmitter functions without you having to take your eyes off the model. Also, when necessary, the Cockpit SX 9 speaks specific sensor values to you and, moreover, if an alarm should be triggered, you dont have to look at the screen to see whats happened, the SX 9 just tells you. Eight telemetry sensors can be connected that measure anything from current to temperature, whilst telemetry data can also be stored in the model using the optional Flight Recorder.
Featuring a wireless trainer system the SX 9 can (in tandem with the optional Co-Pilot module) operate both as an instructor or pupil transmitter, whilst the second transmitter can be any M-LINK set with a trainer facility. Meanwhile, Selective Trainer Mode allows full control transfer to the trainee or, depending on the trainees skill level, the transfer of individual control functions. Better still, the teacher can resume control of the model simply by moving the sticks. All in all, its a powerful system. Take a look at the features and functions, weigh them against the price, and decide for yourself.
Comprehensive feature list:Model categories catered for
- Glider (two flap)
- Glider (four flap plus airbrakes)
- V-tail
- Fixed-wing power
- Fixed-wing aerobatic
- Delta (jets)
- Flying wing
- Helicopter (120 degree CCPM)
- Helicopter (90 degree flybarless
- Multicopter
- Throttle check
- Transmitter battery monitor
- Intelligent speech output
- Spoken telemetry data via speaker or earphone
- Real-time data transmission
- Optional sensors (Vario, GPS, fuel, temperature, voltage, current, rpm etc.)
- Vibration alarms
- Flight phase specific digital trims
- Timers (x3) with speech output
- Variable stick modes
- Comprehensive servo adjustment (travel, centre, limit, reverse)
- Dual rate and Expo (variable for each flight phase)
- 3 flight phases (fixed wing)
- 4 flight phases (helicopter)
- Heli throttle and pitch curves (9 point)
- Aileron differential (variable for each flight phase)
- Snap flap
- Butterfly (Crow) mix
- Unrestricted servo assignment
- Wireless trainer mode
- Multi-function USB socket
- 200 model memory storage via SD card
- Model copy
Special functions
Specification:
| Length (mm): | 190 |
| Height (mm): | 210 |
| Width (mm): | 60 |
| Weight (g): | 846 |
COCKPIT SX 9 Transmitter Only Tech Specs:
COCKPIT SX 9 Transmitter Only Key Features:
- Developed and built in Germany, the Multiplex Cockpit SX 9 is perfectly suited to both the forward-looking beginner and the demanding leisure pilot. Offering a full-colour TFT touch-screen of 320 x 240 pixels, pilot information is offered via symbols and large, clearly legible letters and numerals. It's visible in sunlight, too, without backlighting, which makes it perfect for R/C flying. Boasting a highly intuitive programming logic that includes many self-explanatory graphics, plus super-convenient SD card management of the 200 internally stored model memories, you'll quickly grow to love it's user-friendly persona.
Since we're beginning to get used to our transmitters talking to us - who'd have thought it? - many R/C flyers are now looking for a radio with speech output, and in this respect the SX 9 leads the way with more than 450 words, numbers and phrases in its vocabulary. In fact, where speech is concerned it's one of the most advanced systems of its type ever to have been incorporated in a hand-held transmitter. This, of course, keeps you aware of critical telemetry data and transmitter functions without you having to take your eyes off the model. Also, when necessary, the Cockpit SX 9 speaks specific sensor values to you and, moreover, if an alarm should be triggered, you don't have to look at the screen to see what's happened, the SX 9 just tells you. Eight telemetry sensors can be connected that measure anything from current to temperature, whilst telemetry data can also be stored in the model using the optional Flight Recorder.
Featuring a wireless trainer system the SX 9 can (in tandem with the optional Co-Pilot module) operate both as an instructor or pupil transmitter, whilst the second transmitter can be any M-LINK set with a trainer facility. Meanwhile, Selective Trainer Mode allows full control transfer to the trainee or, depending on the trainee's skill level, the transfer of individual control functions. Better still, the teacher can resume control of the model simply by moving the sticks. All in all, it's a powerful system. Take a look at the features and functions, weigh them against the price, and decide for yourself.Comprehensive feature list:
Model categories catered for- Glider (two flap)
- Glider (four flap plus airbrakes)
- V-tail
- Fixed-wing power
- Fixed-wing aerobatic
- Delta (jets)
- Flying wing
- Helicopter (120 degree CCPM)
- Helicopter (90 degree flybarless
- Multicopter
- Throttle check
- Transmitter battery monitor
- Intelligent speech output
- Spoken telemetry data via speaker or earphone
- Real-time data transmission
- Optional sensors (Vario, GPS, fuel, temperature, voltage, current, rpm etc.)
- Vibration alarms
- Flight phase specific digital trims
- Timers (x3) with speech output
- Variable stick modes
- Comprehensive servo adjustment (travel, centre, limit, reverse)
- Dual rate and Expo (variable for each flight phase)
- 3 flight phases (fixed wing)
- 4 flight phases (helicopter)
- Heli throttle and pitch curves (9 point)
- Aileron differential (variable for each flight phase)
- Snap flap
- Butterfly (Crow) mix
- Unrestricted servo assignment
- Wireless trainer mode
- Multi-function USB socket
- 200 model memory storage via SD card
- Model copy
Special functions
Specification:
Length (mm): 190 Height (mm): 210 Width (mm): 60 Weight (g): 846 - 9 fully proportional channels.
- M-LINK transmission for secure ultra-fast, digital signal transmission.
- Real-time telemetry.
- Analogue and digital servo mode.
- Integral aerial technology with extremely high range.
- 3.5" TFT full colour touch screen with day / night switching.
- Gimbal units with quadruple ball races.
- Speech output via loudspeaker or earphone socket.
- Multi use USB socket for PC interface and firmware updates etc.
- Light weight.
- Long operating time of up to 24 hours.
- Model Assistant feature to guide you through the programming procedure.
- Clear, efficiently organised smartphone-like menu structure.

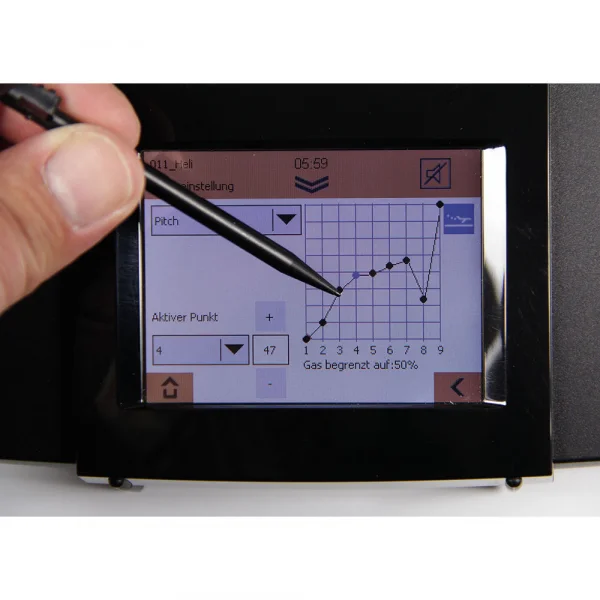

- Collective pitch curve adjustment using the 'touch and pull' slide function.
What's in the Box:
- 1x 9-channel transmitter.
- 1x Charge lead (USB A-plug to USB mini-B 5-pin).
- 1x Comprehensive instruction manual.
- 1x Neck strap eyelet.
- 1x Decal sheet.
COCKPIT SX 9 Transmitter Only Tech Specs:
- Shipping Weight: 1.49kg / 3.29lbs
Key Info:
- Brand: Multiplex
- Part No: MPX45161
- Barcode: 4041033121610
- Receivers Included: 0
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Stick
