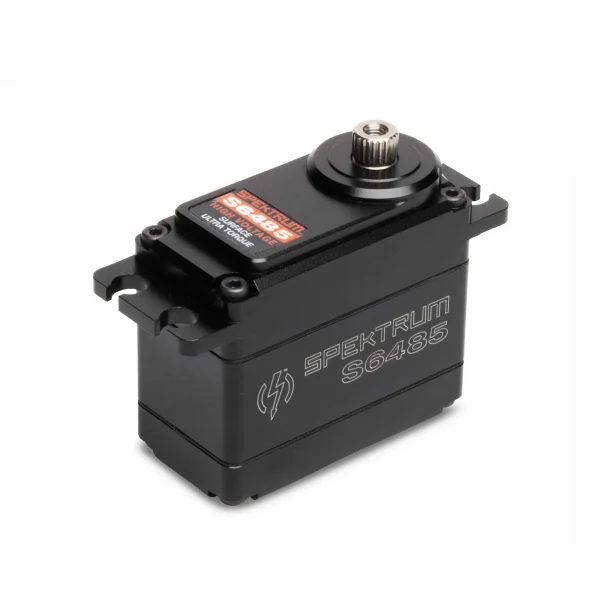

Spektrum SPMSS6485 Competition High Torque Servo 25T

The Spektrum SPMSS6485 Competition High Torque Servo 25T delivers premium power, precision and performance for demanding RC applications. With a 25T output spline and high-voltage operation from 6.0–8.4V, this standard-size digital servo combines an all-black anodised aluminium case for improved heat dissipation with a precision-engineered metal gear train. At 8.4V it produces 496 oz-in (35.7 kg-cm) of torque with a swift 0.10 sec/60° transit speed, making it a strong choice for 1/8 off-road, crawling and bashing where maximum torque and holding power are essential. A removable servo lead adds convenience, letting you choose different cable lengths to suit your vehicle layout.

Key Features

• 25T output spline
• Class-leading torque: 35.7 kg-cm (496 oz-in) at 8.4V
• Impressive transit speed: 0.10 sec/60° at 8.4V
• High-voltage capable: 6.0–8.4V
• All-black anodised aluminium case
• Powerful coreless motor
• Hardened steel gears
• Precision-engineered gear train with tight, low-wear mesh
• Dual bearings
• Removable servo lead for selectable cable lengths

Specifications

• Application: 1/8th scale racers, RC crawlers and scalers
• Servo type: Digital; standard size
• Operating voltage: 6.0–8.4V (HV)
• Maximum speed: 0.10 sec/60° at 8.4V
• Torque: 496 oz-in at 8.4V (35.7 kg-cm)
• Spline count: 25-tooth
• Gear type: Metal; hardened steel
• Bearings: Dual
• Dimensions (L × W × H): 41 × 21 × 35 mm
• Weight: 2.80 oz

Suggested Compatibility

• 1/8th scale off-road racers
• RC crawlers and scalers
• Crawling and bashing applications requiring maximum torque and holding power

What’s Included

• Competition High Torque Servo 25T (SPMSS6485)
