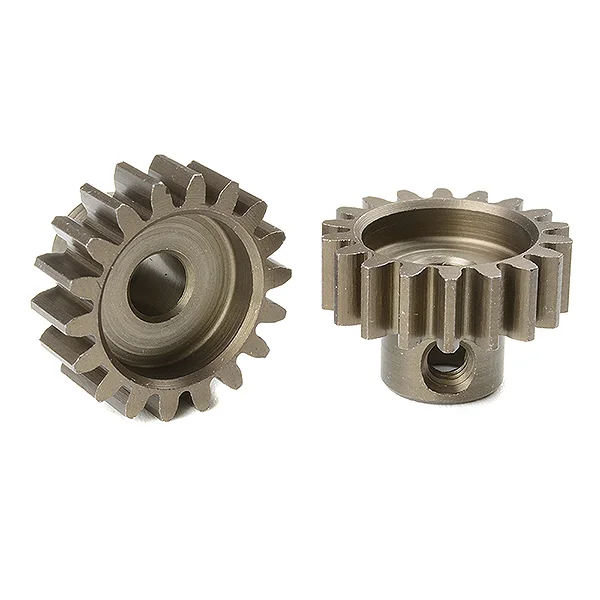

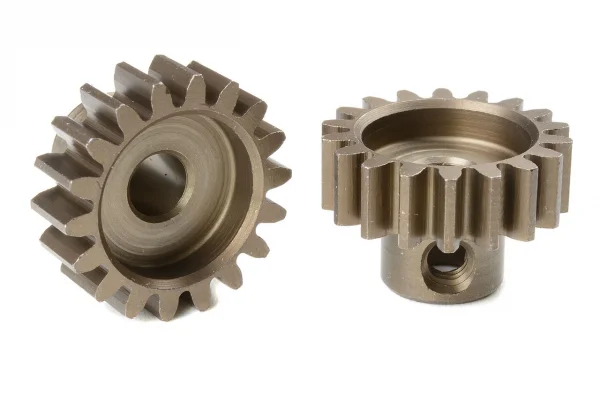

Corally M1.0 Pinion - Short - Hardened Steel - 18 Teeth

The Corally M1.0 Short Hardened Steel Pinion (C-72718) is an 18-tooth gear built for dependable power transfer in RC drivetrains. Manufactured from hardened steel, it is designed to resist wear and deliver consistent performance over extended use.

This pinion features a Module 1 (MOD1) tooth profile and a 5 mm shaft bore. The short-length design provides a compact option where a MOD1 pinion with a 5 mm shaft is required. The MOD1 profile is intended to mesh with MOD1 spur gears.

Key Details

• Tooth Count: 18T
• Gear Pitch: Module 1 (MOD1)
• Bore/Shaft Diameter: 5 mm
• Material: Hardened steel
• Short-length pinion design
• Brand: Corally | Part number: C-72718
