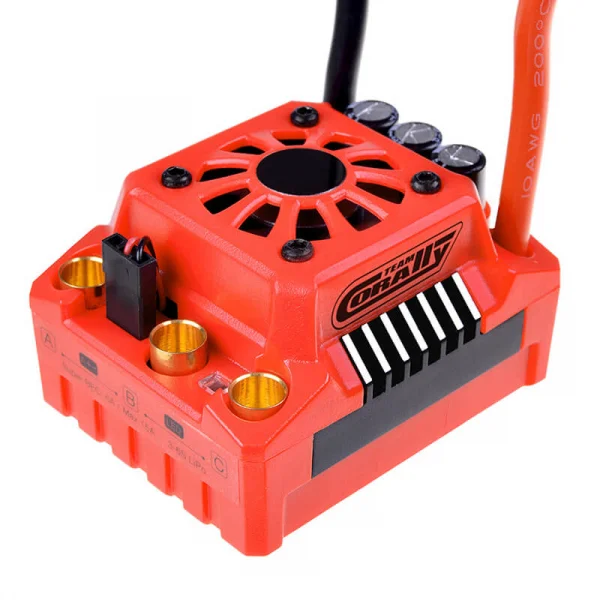

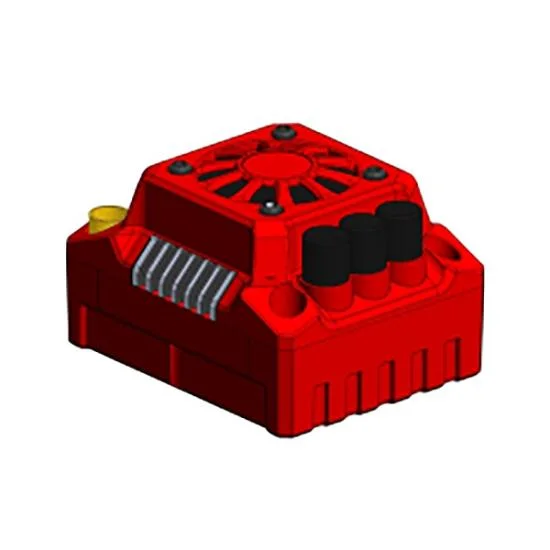

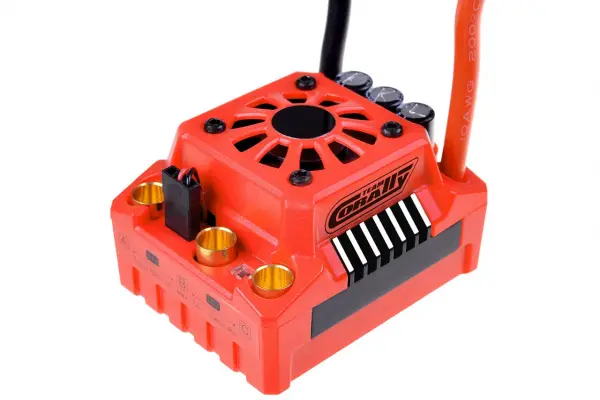

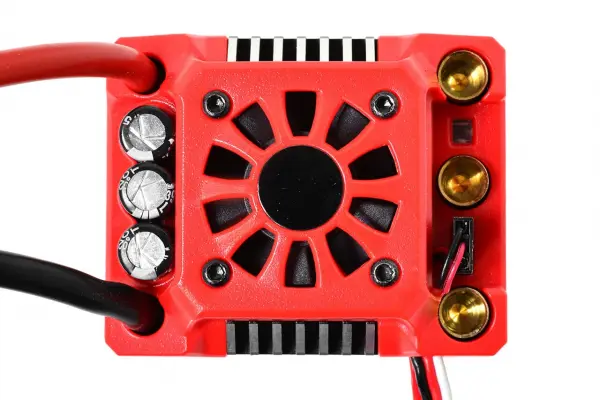

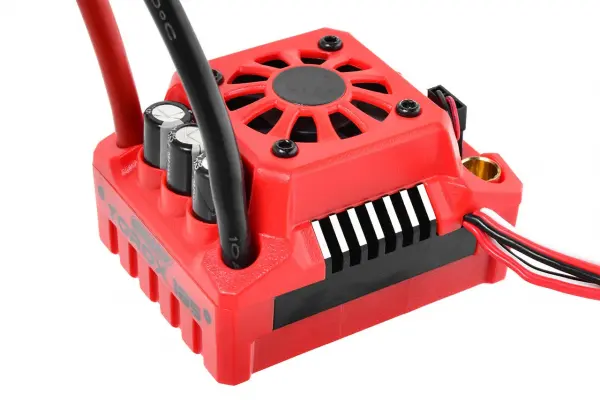

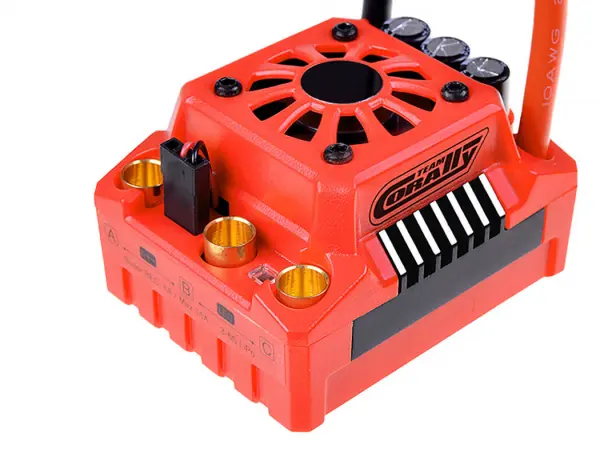

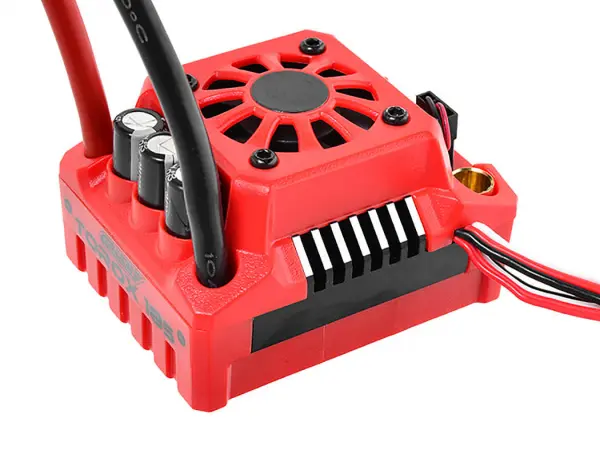

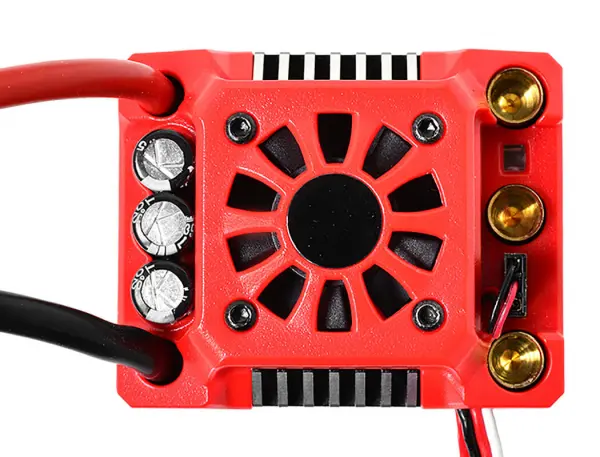

Corally Speed Controller - Torox 185 - Brushless - 2-6S

The Corally Torox 185 Brushless Speed Controller (C-54011) delivers robust, efficient power management for high-performance models. With a 185A continuous rating and support for 3–6S LiPo, it pairs strong delivery with extensive programmability, a selectable 6–7.4V BEC, and comprehensive protection features. Designed for 1/8 scale applications, it includes XT90 battery connectivity and 6.5 mm motor terminals for secure, low-resistance connections.

Key Specifications

• Max. continuous current: 185A; peak current: 950A
• Input voltage: 11.1–22.2V (3–6S LiPo) or 9–18 cell NiMH
• Motor limit: up to 3000Kv on 4S (40XX); up to 2400Kv on 6S (40XX)
• Motor type: sensored/sensorless brushless (sensorless mode only)
• BEC output: programmable 6–7.4V, 6A
• Car type use: 1/8 scale

Tuning And Protection

• Programmable modes: NiMH/LiPo battery mode and LiPo cut-off
• Throttle modes: forward/reverse with programmable reverse lockout
• Drag brake: 0–16% adjustable
• Thermal protection thresholds: 105°C / 125°C (programmable)
• Water and element protection for all-weather running
• Programmable via optional Hobbywing LED program card

Dimensions And Hardware

• Size: 60.0 x 48.0 x 36.5 mm
• Cooling fan: 30 x 30 x 10 mm
• Battery connector: XT90; battery wire: 10 AWG
• Motor connectors: 6.5 mm female

This Torox 185 ESC offers precise setup and reliable safeguards for demanding conditions, making it a solid choice where strong current delivery, flexible tuning, and durable construction are required.
