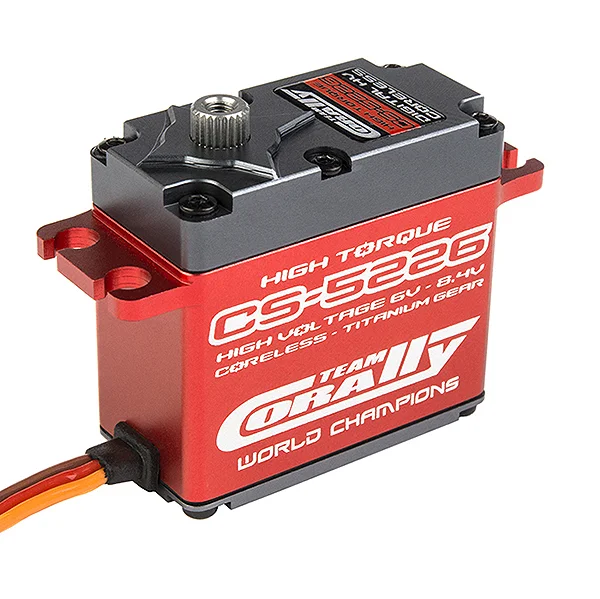

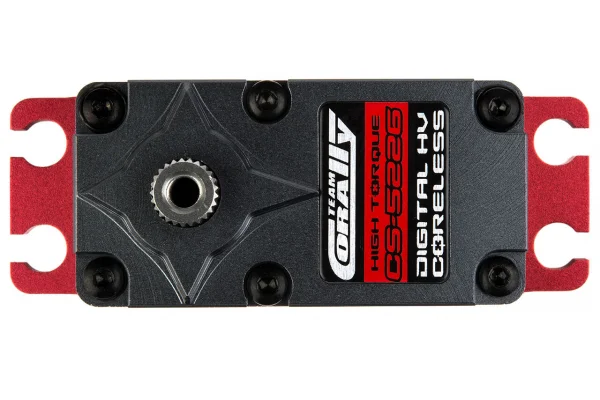

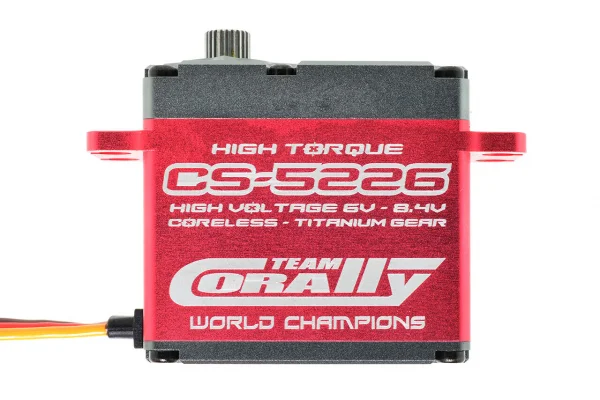

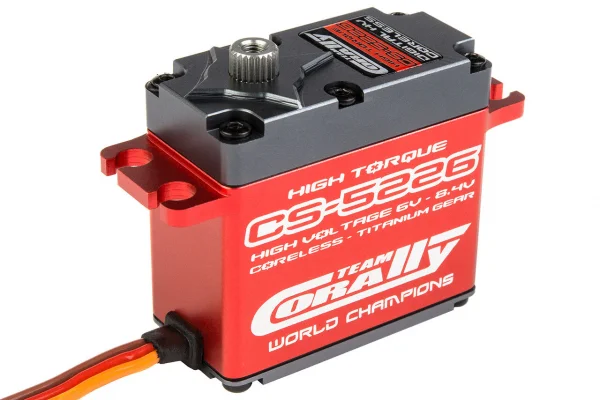

Corally CS-5226 HV High Speed Servo 25.6kg 0.07s (C-52001)
Brand: Corally
Part No: C-52001
In Stock: Usually ships same day
Finance options available at checkout.
Fits These Models (5)
Frequently Bought With
Other items customers often buy with the Corally CS-5226 HV High Speed Servo - 25.6kg 0.07s
Description
The Corally CS-5226 HV High Speed Servo delivers digital high-voltage performance with precise, reliable control. Built around a coreless motor with titanium gears and a full CNC-machined alloy case, it offers ultra-fast transit speeds and strong torque, achieving 25.6 kg/cm and 0.07s at 8.4V. This standard-size servo features a 25T spline and JR connector. Part number C-52001.
Developed with racers in mind, the CS-5226 combines power, speed and durability in a water-protected, ball-raced design to handle demanding RC applications.
Features
- Full CNC machined alloy case
- High Voltage 6.0 - 8.4V
- Titanium gears
- Ball Raced
- Coreless motor
- Ultra high speed and torque
- Water resistant
Specifications
- Motor Type: Coreless motor
- Servo Technology: Digital ultra high voltage
- Input Voltage: 6.0–8.4V
- Speed (60°): 0.09s @ 6.0V, 0.08s @ 7.4V, 0.07s @ 8.4V
- Torque: 18.3 kg/cm @ 6.0V, 22.6 kg/cm @ 7.4V, 25.6 kg/cm @ 8.4V
- Size: Standard; 40.5 x 20.5 x 36.0 mm
- Weight: 72 g
- Gear Material: Titanium
- Bearings: Ball raced
- Case: CNC alloy
- Connector: JR
- Spline: 25T
- Water Protection: Waterproof
- Part Number: C-52001
Secured by Stripe
Corally CS-5226 HV High Speed Servo - 25.6kg 0.07s Manuals & Guides
How-To Guides & Articles
Specifications
CORALLY CS5226 HV HIGH SPEED SERVO HIGH VOLT CORELESS MOTOR TITANIUM/BALLBEARING/ALLOY CASE
Are looking for some powerful control?
We have developed these servos with the racer in mind, ultimate digital power, precision and reliablity.
Features
- Full CNC machined alloy case
- High Voltage 6.0 - 8.4V
- Titanium gears
- Ball Raced
- Coreless motor
- Ultra high speed and torque
- Water resistant
Specifications
Motor Type: Coreless Motor
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V - 8.4V
Weight (g): 72 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Titanium Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Height (mm): 36.0 mm
Servo Case: CNC alloy
Servo Power - Torque Kg/cm: > 25 Kg/cm
Servo Speed 60°/sec: 0.05 - 0.10 Sec/60°
Protection: Waterproof
Speed 60°/Sec @ 6.0V: 0.09 Sec/60°
Speed 60°/Sec @ 7.4V: 0.08 Sec/60°
Speed 60°/Sec @ 8.4V: 0.07 Sec/60°
Torque kg/cm @ 6.0V: 18.3 Kg/cm
Torque kg/cm @ 7.4V: 22.6 Kg/cm
Torque kg/cm @ 8.4V: 25.6 Kg/cm
Connector type: JR
Spline size: 25T Spline
Thermal Protection Temperature: Waterproof
Water Protection: Waterproof
Key Info:
- Brand: Corally
- Part No: C-52001
- Barcode: 8718057120764
- Fitment: Option Part
- Fitment: Standard Part
