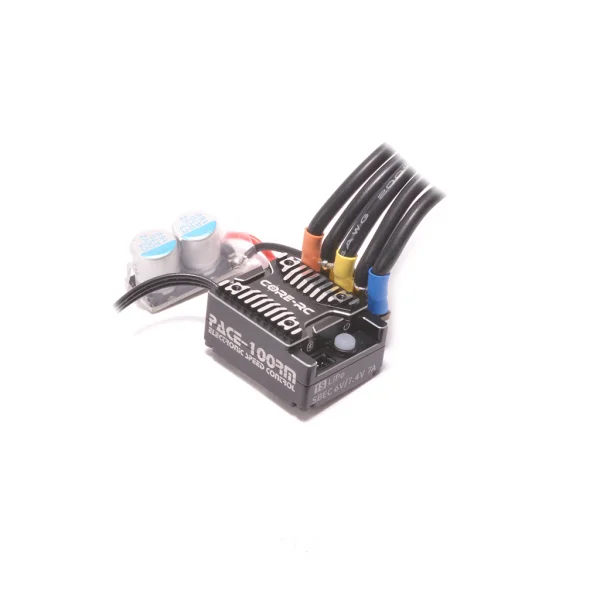

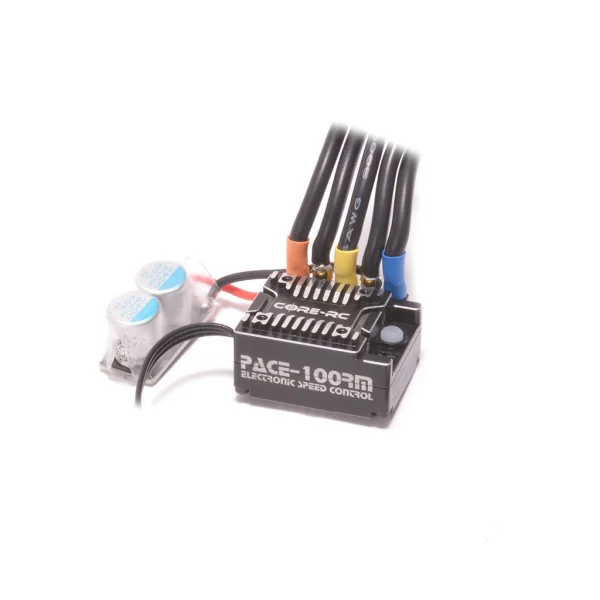

Core RC Pace 100RM - Mini Brushless ESC - 1S

The Core RC Pace 100RM (SCH-CR899) is a 1S mini brushless competition speed controller engineered for tight chassis layouts in classes such as LMP12 and GT12. Despite its ultra-compact footprint of just 31.5 x 25 x 16 mm, this sensored ESC delivers precise, consistent power with a 32-bit microprocessor and a robust 100A continuous current rating. A full aluminium case with integrated heatsink aids thermal performance, while comprehensive protection features help safeguard your electronics during demanding 1/12th on-road racing.

Setup is straightforward and flexible. The Pace 100RM is fully programmable using the CORE RC Bluetooth Set Up Module (CR886) and app-based technology, allowing you to tailor throttle feel and drive modes to track conditions. It is BRCA 'Blinky' legal for zero-timing racing and supports multiple drive configurations, making it a versatile choice across a wide range of 1S racing classes.

Key Features

• PACE 100RM brushless 100A ESC in a mini form factor
• Supports 1S LiPo or 3-cell NiCd/NiMH battery packs
• Drive modes: Forward/Brake/Reverse, Forward/Brake, or Forward/Reverse
• Fully programmable via optional CORE RC Bluetooth Set Up Module and mobile app
• Full aluminium case and heatsink design for improved heat dissipation
• Extensive adjustable parameters to suit most 1S racing classes
• 32-bit microprocessor for accurate motor output and control
• Enhanced throttle response, acceleration, linearity and drivability
• Multiple protections: low-voltage cut-off, over-temperature and throttle signal loss
• BRCA 'Blinky' legal

Specification

• Type: Sensored
• Continuous Current: 100A
• Burst Current: 360A
• Input Voltage: 1S LiPo
• BEC Output: 6.0V or 7.4V, 7A
• Dimensions (L x W x H): 31.5 x 25 x 16 mm
• Weight: 48 g
• ESC Programming: Mobile phone app (via Bluetooth module)
• Firmware Upgrade: Supported
• Waterproof: No
• Car Applicable: 1/12th On-Road

Designed for serious club and national-level racing, the Core RC Pace 100RM provides the compact size, tuning flexibility and consistent power delivery demanded by modern 1/12th on-road platforms.
