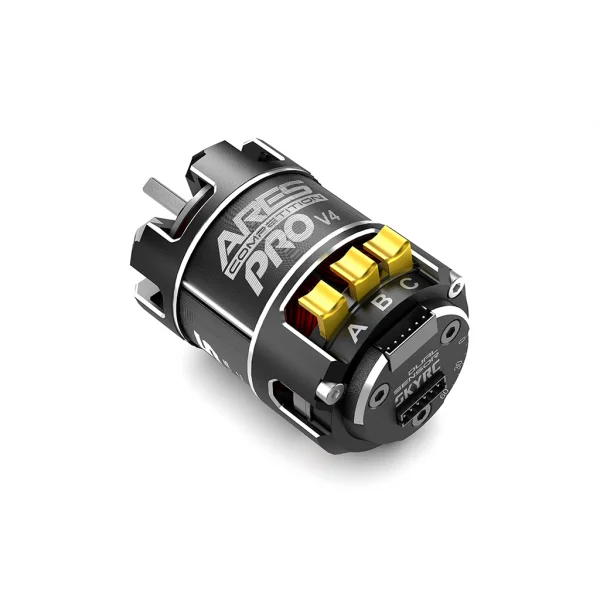

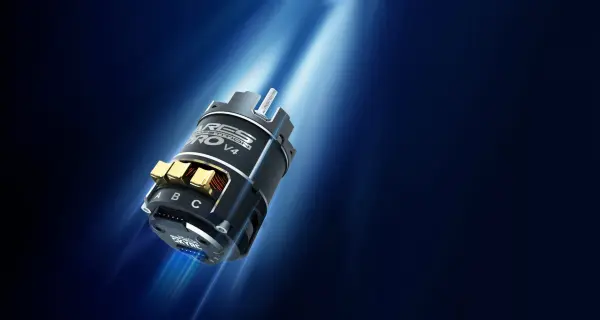

SKY RC ARES PRO V4 Brushless Motor SPEC 10.5T

The SkyRC Ares Pro V4 (ARES PRO 4) SPEC 10.5T is a ROAR-approved 1/10 sensored brushless motor engineered for competition. Its new, precision CNC aluminium heatsink case with rear venting enhances cooling around the Hall sensor for stable, repeatable performance. Built with high-temperature materials and balanced to perfection, it delivers smooth, accurate power lap after lap. Part number SCH-SK-400034-01.

Key Features

• ROAR approved for competitive racing.
• Low-resistance solder tabs to minimise power loss.
• CNC aluminium heatsink can with rear venting for improved airflow and heat dissipation.
• Global-grade bearings and precision shaft for ultra-smooth operation.
• 220°C high-purity copper windings for efficient, low-heat power delivery.
• Precision-balanced, heat-resistant rotor with a 200°C, explosion-proof structure.
• 200°C neodymium magnets and high-efficiency iron core for strong, stable torque.
• Advanced sensor system for seamless low-speed control and cogging-free throttle response.
• Adjustable mechanical timing to suit a wide range of track conditions.
• Redundant dual sensor ports in different orientations for easy wiring and reliability.
• Fully modular, rebuildable design for straightforward cleaning and servicing with standard RC tools.
• Multiple turn options available across the Ares Pro V4 range to suit different driving styles.

Timing Guide

• Low Timing (0–20°): Later power delivery for smooth output, stable torque and linear starts; ideal for precise control through continuous corners, helping prevent sudden wheel spin.
• Mid Timing (20–40°): Balances instant punch with sustained acceleration; suited to mixed circuits with straights and curves, such as drift tracks.
• High Timing (40–60°): Earlier power delivery for rapid RPM climb and higher top speed; best for flat-out straights under the same voltage.

Specifications

• Scale: 1/10
• Size: 35.8 × 35.8 × 52 mm
• Weight: 148 g ±5 g
• Operating temperature: −10°C to 80°C
• Operating humidity: 20%–80% (non‑condensing)
• Storage temperature: 0°C to 50°C
• Storage humidity: 30%–60% (non‑condensing)

Setup Note

Before use, please confirm your ESC’s continuous/peak current, supported cell count and sensor port type to ensure compatibility with the motor’s specifications.
