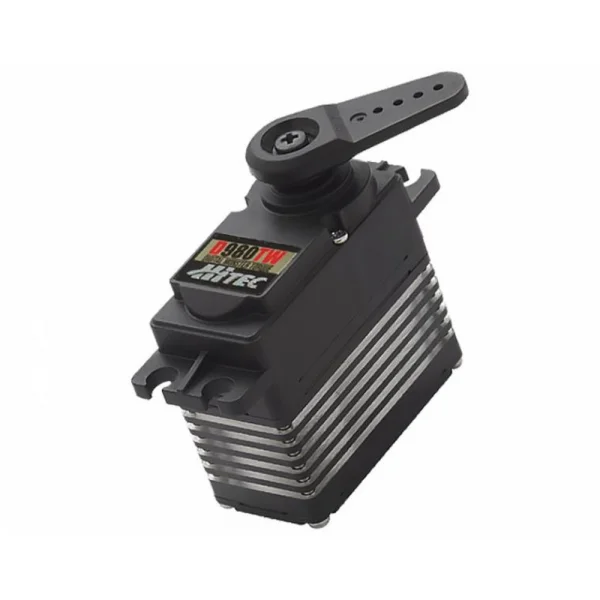

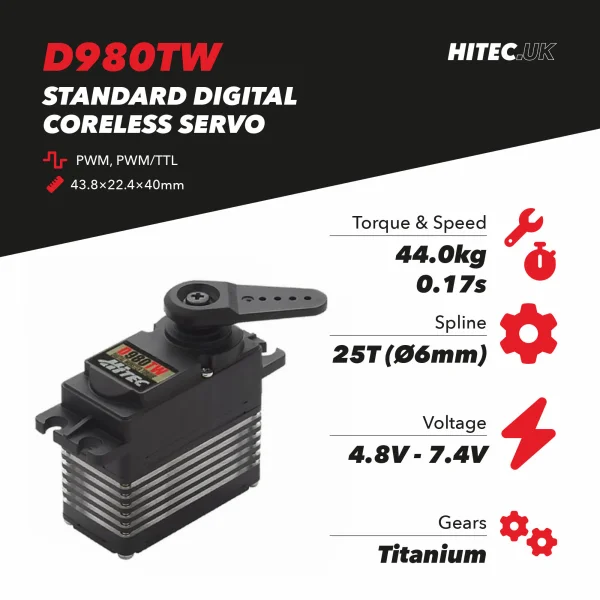

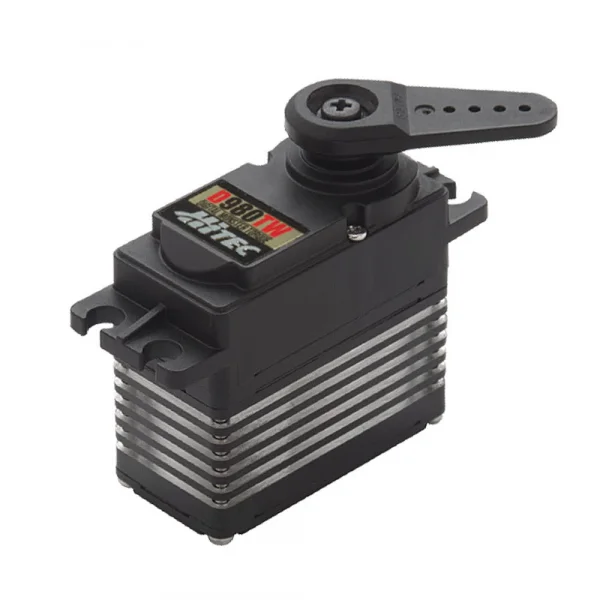

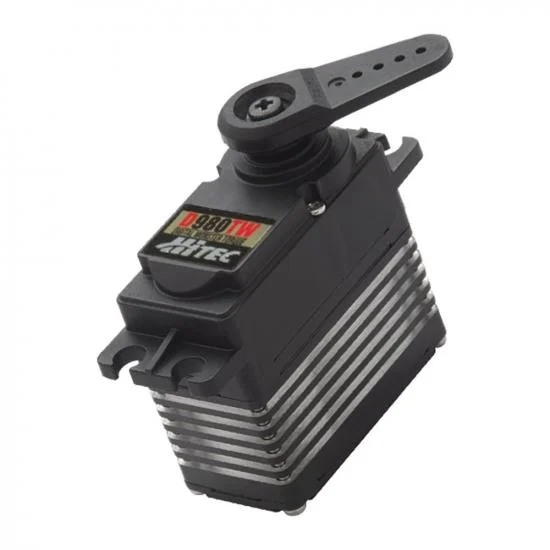

D980TW Wide Voltage Monster Torque Servo
Brand: Hitec
Part No: 2221020
Shadow Stock: Usually ships next day
The Hitec D980TW Wide Voltage Monster Torque Servo (part number 2221020) is part of the Hitec D‑Series, built around a 32‑bit MCU and 12‑bit ADC for ultra‑responsive, high‑resolution control and notably smooth movement. Operating across a wide 4.8–8.4V range, it supports common battery chemistries without external regulators or adapters. A titanium‑alloy gear train with dual ball bearings, an ultra‑hard gear shaft and a water‑ and dust‑resistant case deliver durability, while the integrated motor heat sink helps manage thermals. The standard‑size footprint and Hitec’s 25‑tooth output spline with 3mm hex screw make installation straightforward.
Engineered for demanding control surfaces and heavy‑duty applications, the D980TW combines strength and precision in a compact, standard‑size package from a trusted brand.
Key Features
- Hitec D‑Series architecture with 32‑bit MCU and 12‑bit ADC for smoother movement
- Wide 4.8–8.4V operating range
- Programmable digital amplifier with MOSFET drive
- Long life (1M cycles) indirect potentiometer
- Semipermanent magnetic rotary encoder
- Durable titanium alloy metal gears with dual ball bearings
- Ultra‑hard gear shaft with three axial metal bushings
- Water and dust resistant case
- Heat sink for motor
- Hitec 25‑tooth output spline with 3mm hex screw
Tech Specs
- Weight: 78.2g (2.76oz)
- Product length: 44mm (1.72in)
- Product width: 22mm (0.88in)
- Product height: 40mm (1.57in)
- Shipping weight: 0.17kg (0.37lbs)
- Servo size: Standard
Suggested Compatibility
- Large aeroplane models
Secured by Stripe
The titanium D-980TW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 - 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings a monster performance.
D980TW Wide Voltage Monster Torque Servo Key Features:
The titanium D-980TW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 - 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings a monster performance.
- Programmable digital amplifier with MOSFET drive
- Long life (1M cycles) indirect potentiometer
- Durable titanium alloy metal gears with dual ball bearings
- Semipermanent magnetic rotary encoder
- Ultra hardness gear shaft with 3 axial metal bushing
- Water and dust resistant case
- Heat sink for motor
D980TW Wide Voltage Monster Torque Servo Tech Specs:
- Weight: 78.2g / 2.76oz
- Shipping Weight: 0.17kg / 0.37lbs
- Product Height: 40mm / 1.57in
- Product Width: 22mm / .88in
- Product Length: 44mm / 1.72in
- Application: Large airplane models
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2221020
- Barcode: 669962369800
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
