E Flite Habu XS 80mm EDF - BNF Basic AS3X

E-flite Habu XS 80mm EDF RC Airplane Introduction

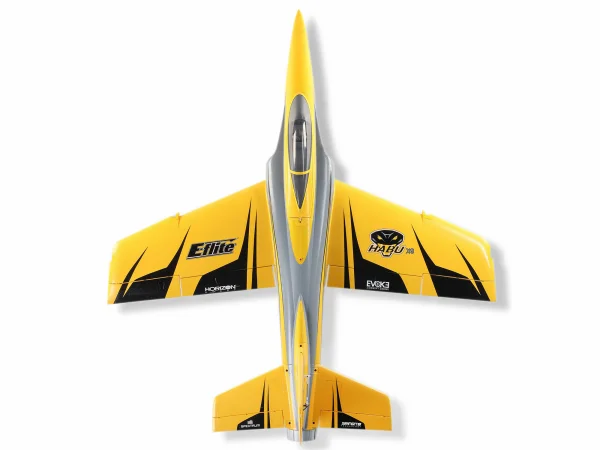

Inspired by one of the highest-performance EDF (Electric Ducted Fan) sport jet models ever designed – the iconic Habu 32x – the E-flite® Habu XS (eXtra Sport) 80mm EDF also features swept-back wing and stabilizer trailing edges to enhance the appearance and performance. The overall design, including the wing featuring leading edge extensions, was scaled up from the extremely popular Habu SS (Super Sport) 50mm and 70mm models to deliver incredible low-speed handling characteristics that make it easier to fly at slower speeds and to land. This makes it one of the best first-ever “full-house” jet models for low-time EDF pilots and one of the best-ever everyday sport jets for experienced pilots! Both versions are equipped with LED lights, shock-absorbing struts, and a power system that’s compatible with popular 6S 4000–7000mAh batteries and features a Spektrum Avian 130-amp Smart ESC with optional-use motor/thrust reversing. The BNF Basic version also includes a factory-installed AR637TA+ receiver that delivers real-time telemetry data along with the benefits of exclusive and expertly-tuned AS3X+ and SAFE Select technologies to make it quicker to get in the air – plus easier and more enjoyable to fly than other similar class models!

E-flite Habu XS 80mm EDF RC Airplane Features

• Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
• Receiver loaded with a Smart Transmitter File (STF) that allows you to import all settings for NX and iX series transmitters during the binding process
• A more powerful and capable “full-house” version of the popular Habu SS (Super Sport) 50mm and 70mm models that offers “eXtra” speed and aerobatic capability
• Unique wing design delivers incredible low-speed handling and slow-speed performance that makes it one of the easiest to fly and land jets
• Inspired by one of the highest-performance EDF (Electric Ducted Fan) sport jet models ever designed – the iconic Habu 32x
• Excellent choice for a first full-house and high-performance jet model for low-time to experienced EDF pilots
• Expertly engineered and optimized ducting for incredibly efficient performance without “cheater” holes
• Extremely wide performance envelope and speed range, capable of level flight top speeds up to 120 MPH
• 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
• Factory-installed 6S-compatible Spektrum brushless motor and Avian 130-amp Smart ESC
• Spektrum Avian Smart ESC provides real-time battery voltage, current draw, and other data – with Smart and non-Smart batteries – via compatible transmitters
• Fast and easy assembly – no glue required

• The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology
• Easier to fly with innovative and optional-use SAFE Select flight envelope protection
• Optional-use motor/thrust reversing to help shorten rollout after landing and for other unique ground-handling capabilities
• Eight factory-installed digital, metal-geared servos with ball-link equipped linkages and control surfaces with captured rod hinges

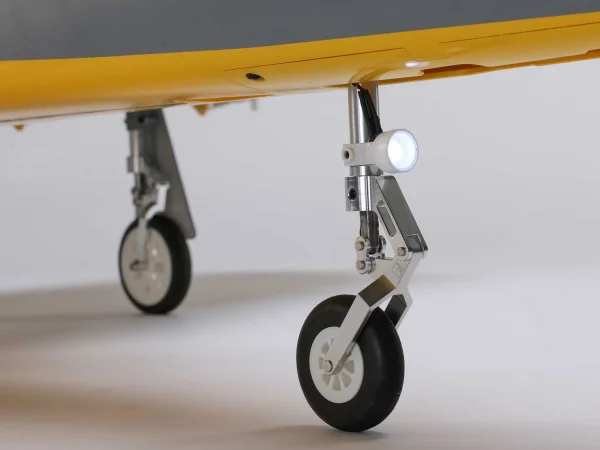

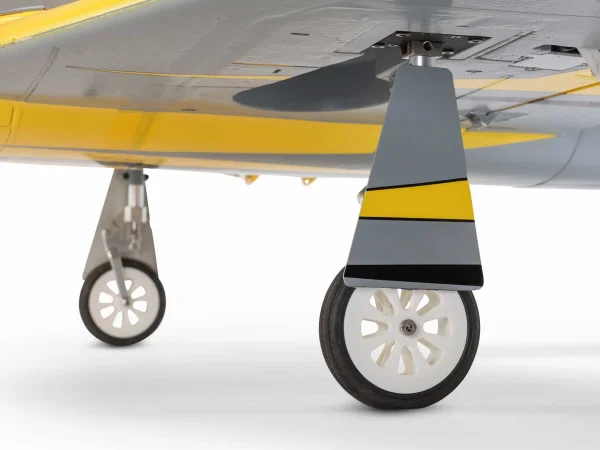

• Reliable electric retracts with shock-absorbing, trailing-link struts for grass and other field operation

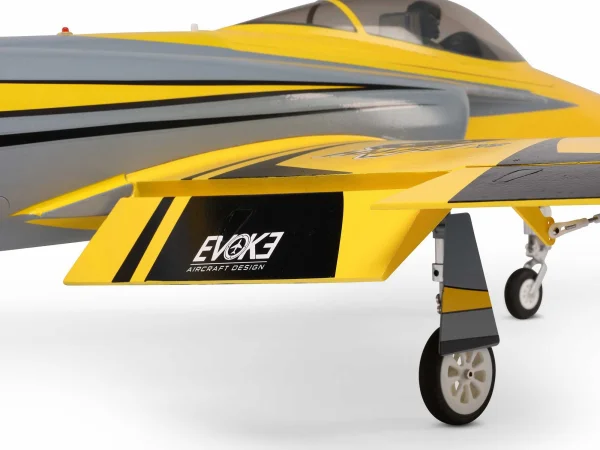

• Functional flaps for shorter takeoffs and landings, plus improved slow-flight performance

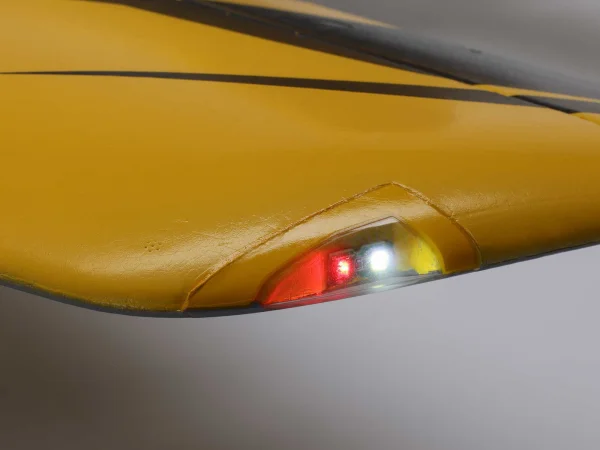

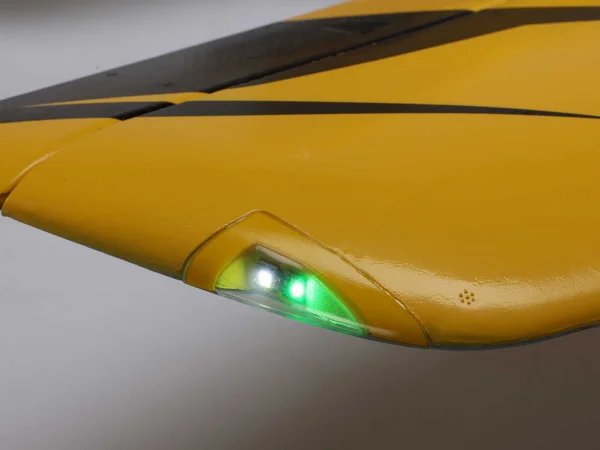

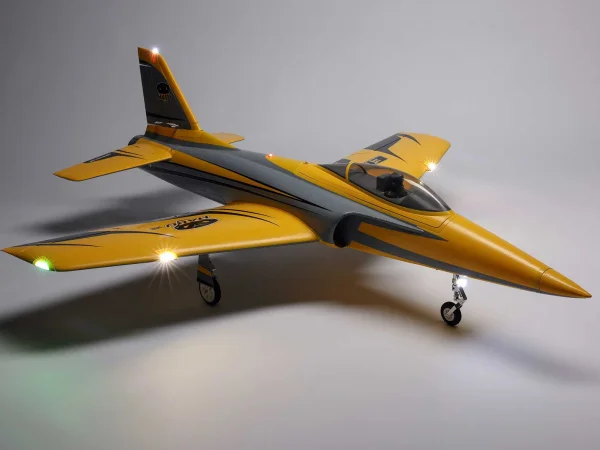

• LED navigation and landing lights for enhanced visibility and orientation
• Lightweight yet strong and durable composite-reinforced EPO construction

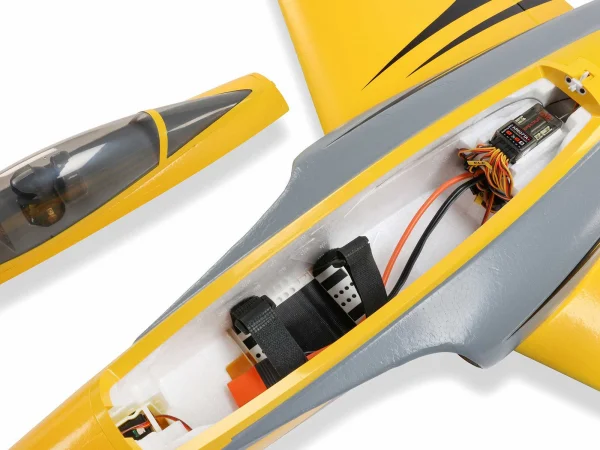

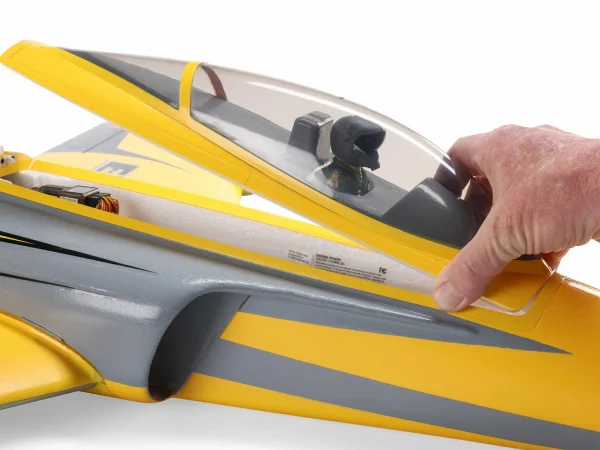

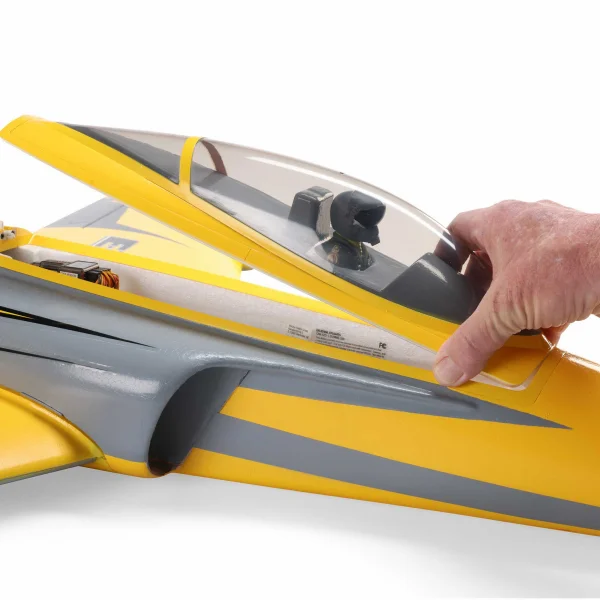

• Large and convenient top hatch with clear canopy, cockpit detail, and pilot figure
• Plastic capped hatch edges and opening for added durability to prevent paint chipping
• One-piece wing with convenient hands-free connections for more accessible storage and transport
• Factory-finished with a fully painted and high-visibility trim scheme
• Popular 6S 4000–7000mAh 30+C batteries deliver excellent performance and flight times

Habu XS (eXtra Sport) 80mm EDF BNF Basic with AS3X and SAFE Specfications:

• Approximate Assembly Time: Less than 1 hour
• Battery: Sold Separately
• CG (Center of Gravity): 125mm +/- 10mm
• Charger: Sold Separately
• Completion Level: Bind-N-Fly Basic
• Connector Type: IC5
• Flaps: Yes
• LiPo Compatibility: 6S
• Manufacturer #: EFL02450
• Minimum Required Radio: Full Range 6-Channel 2.4GHz w/ Spektrum DSM2/DSMX
• Motor Size: 3665–2170Kv Brushless Inrunner 4-pole
• Motor Type: Brushless
• Power Type: Electric
• Product Length: 49.2" (1252mm)
• Product Weight: Without Battery: 69.56oz (1972g). With Recommended Battery: 96.72oz (2742g)
• Radio: Sold Separately
• Receiver: Included
• Recommended Motor Battery: 5000mAh 6S 22.2V Smart G2 LiPo 50C: IC5
• Retracts: Included
• Servos: Included
• Skill Level: Level 2
• Technology: AS3X+, SAFE Select
• Wingspan: 48.8" (1113mm)

In The Box

• (1) E-flite Habu XS (eXtra Sport) 80mm EDF with:
• (1) Spektrum Brushless Inrunner Motor (installed)
• (8) Spektrum Digital, Metal-Geared Servos (installed)
• (1) Spektrum Avian 130-Amp Smart Brushless ESC (installed)

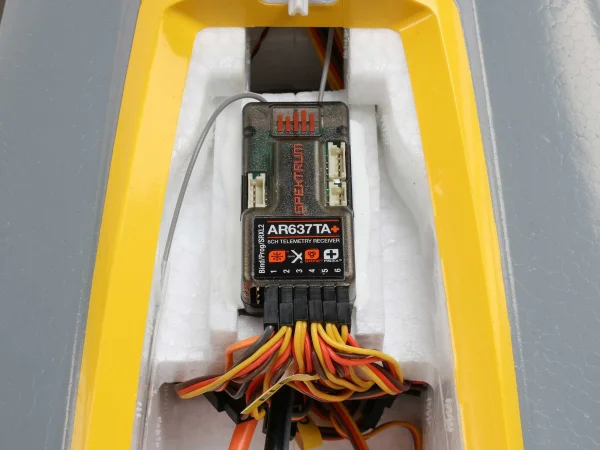

• (1) Spektrum AR637TA+ 6-Channel Receiver with AS3X+ and SAFE Select (installed)
• (1) Product Manual

Needed to Complete

• For Standard Functionality:
• (1) Full-range 6-channel Spektrum DSMX®/DSM2® compatible transmitter
• For SAFE Select OR Motor/Thrust Reversing Functionality:
• (1) Full-range 7-channel Spektrum DSMX/DSM2 compatible transmitter
• For SAFE Select AND Motor/Thrust Reversing Functionality:
• (1) Full-range 8+ channel Spektrum DSMX/DSM2 compatible transmitter
• (1) 6S 22.2V 4000–7000mAh 30+C LiPo with EC5 or IC5 Connector
• (1) Compatible LiPo charger

• Brand: E Flite
• Part No: EFL02450
• Barcode: 660132889500
• Assembly Level: BNF Basic
• Flying Style:
  • EDF Jets
  • Sport
• Power: Electric
