RC4WD EcoDrive 1:14 CVT for Tamiya Trucks – VVV-S0160
Brand: RC4WD
Part No: VVV-S0160
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description

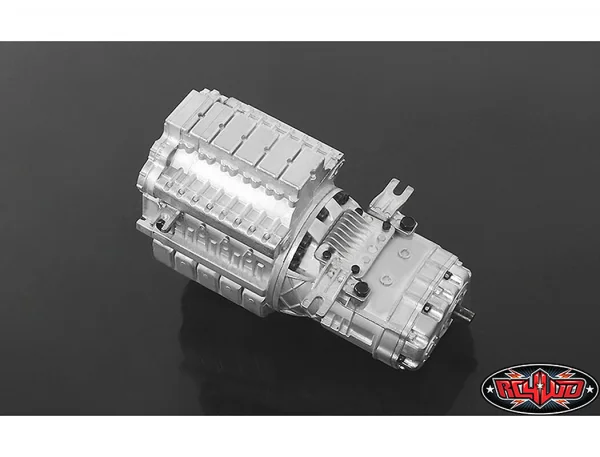

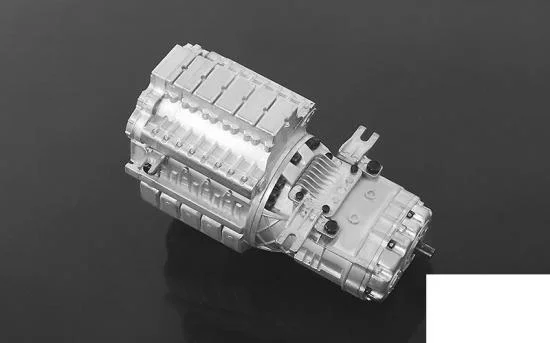

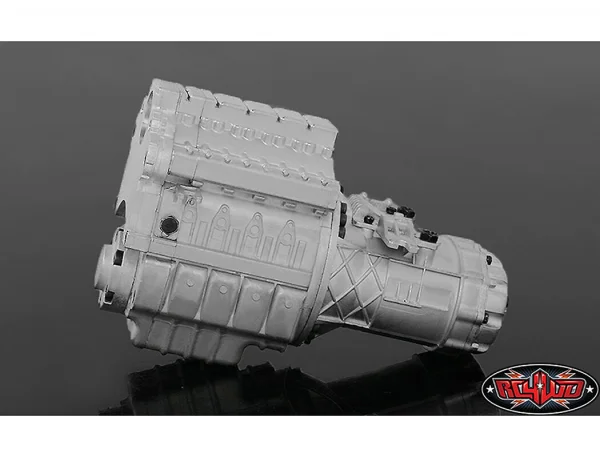

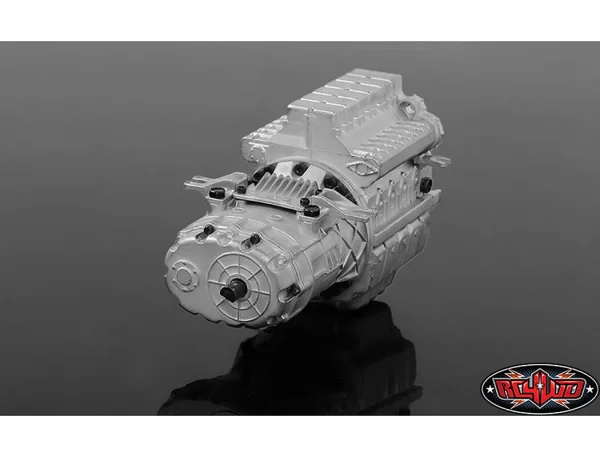

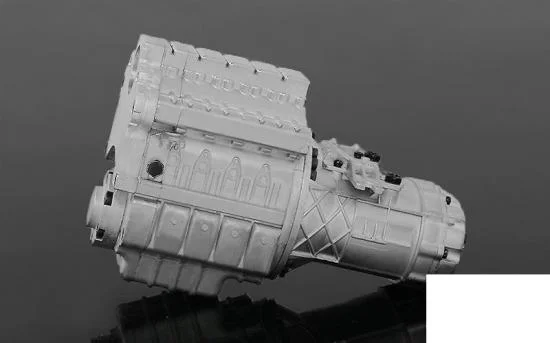

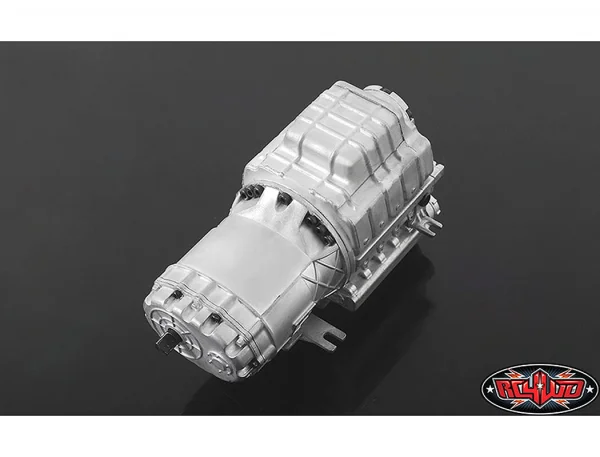

The RC4WD EcoDrive 1:14 CVT Automatic Transmission (VVV-S0160) brings continuously variable performance to scale semi trucks. A CVT delivers seamless ratio changes between minimum and maximum values, allowing the input shaft to maintain a near-constant angular velocity for smooth, controlled drivability compared with fixed-gear transmissions. Built from die-cast zinc alloy, this compact unit is suited to detailed builds and custom projects.
Key Specifications
- Processing Method: Die cast
- Material: Zinc alloy
- Surface Treatment: None
- Reduction Ratio: 1:61.44 (max); 1:9.83 (min)
- Gear Ratio: 1:24.57
- Pulley Ratio: 1:2.5 start, 2.5:1 maximum rotating speed
- Recommended Brushed Motor: 12V 540, 27T–35T; rotating speed range 13,200–16,500 rpm
- Recommended Brushless Motor: 12V 540, 1300KV–1500KV; rotating speed range 15,000–18,000 rpm
- Output Shaft: 5 mm diameter, 6 mm length
- Mounting Holes: X (55 mm), Y (53 mm)
- Transmission Length: 110 mm (4.33 in)
- Total Length with Motor Mounted: 162 mm (6.37 in)
- Weight: 742 g (26.17 oz)
Suggested Compatibility
- Tamiya 1/14 Series semi trucks and custom projects (driveshaft changes may be required)

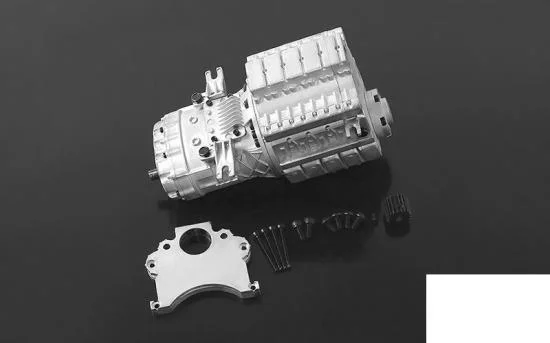

What’s Included
- EcoDrive 1/14 CVT Automatic Transmission for Tamiya 1/14 Semi Trucks

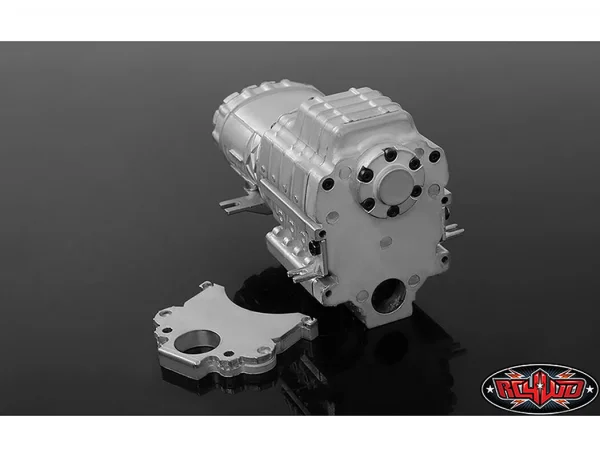

- Motor mount part (plain)
- 20T 30P hardened steel pinion gear (black)
- M3 x 4 mm set screw (black)
- 4x M2 x 14 mm SHCS (black)
- 4x M3 x 6 mm BHCS (black) (Z-S0651)
- 2x M3 x 6 mm SHCS (black)
Notes
- Suggested compatibility with Tamiya 1/14 Series trucks; a driveshaft change may be required.
- Can be painted with suitable metal paints.
- The transmission can become hot during use; avoid contact during operation and allow time to cool before handling.
- Motors shown in example images are not included.
Secured by Stripe
EcoDrive 1:14 CVT Automatic Transmission for Tamiya 1:14 Semi Trucks RC4WD Manuals & Guides
Specifications
EcoDrive 1/14 CVT Automatic Transmission for Tamiya 1/14 Semi Trucks
A continuously variable transmission (CVT) (also known as a single-speed transmission) is an automatic transmission that can change seamlessly through an indefinite number of effective gear ratios between maximum and minimum values. This contrasts with other mechanical transmissions that offer a fixed number of gear ratios. The flexibility of a CVT allows the input shaft to maintain a constant angular velocity.
Specifications:
- Surface Treatment: None
- Processing Method: Die Cast
- Material: Zinc Alloy
- Reduction Ratio: 1:61.44 (Max); 1:9.83 (Min)
- Gear Ratio: 1:24.57
- Pulley Ratio: 1:2.5 Start, 2.5:1 maximum Rotating Speed
- Recommended Brushed Motor: 12V540 Brushed Motor 27T~35T; Rotating Speed Range: 13200-16500 turn/MIN
- Recommended Brushless Motor: 12V540 Brushless Motor 1300KV~1500KV; Rotating Speed Range: 15000-18000 turn/MIN
- Output Shaft Diameter: 0.19in / 5mm; Length: 0.23in / 6mm

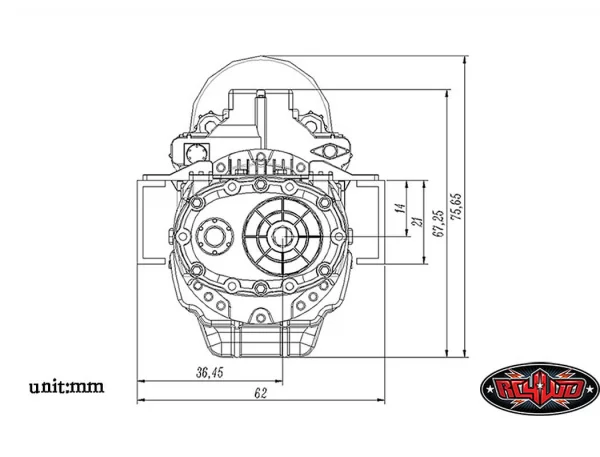

- Mounting Holes: Chassis Direction X(2.16in / 55mm); Axle Direction Y(2.08in / 53mm)
- Transmission Length: 4.33in / 110mm
- Mounting the Motor total Length: 6.37in / 162mm
- Weight: 26.17oz / 742g
- Designed to fit Tamiya 1/14 Semi Truck or Custom Project

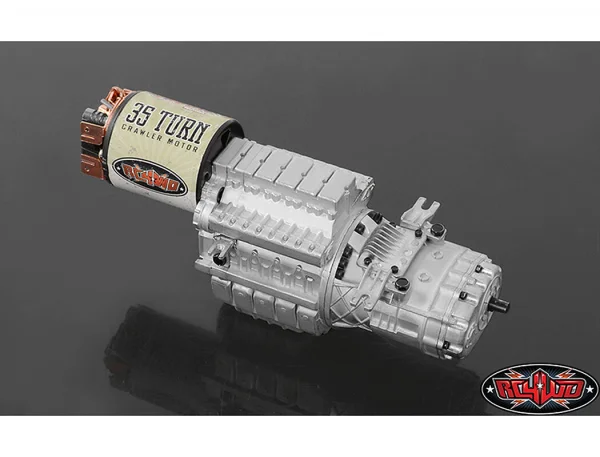

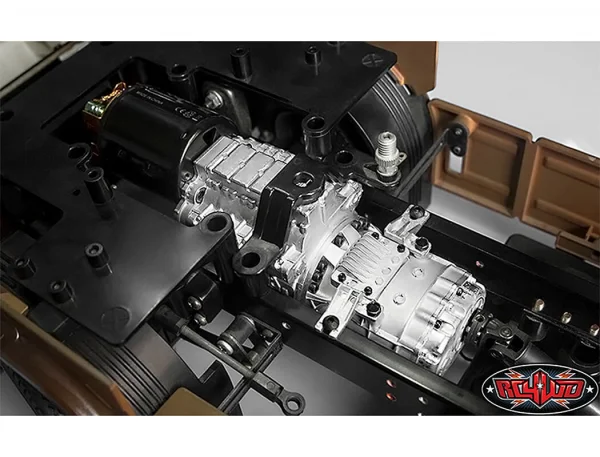

Shown installed with RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045) for example (Not Included)

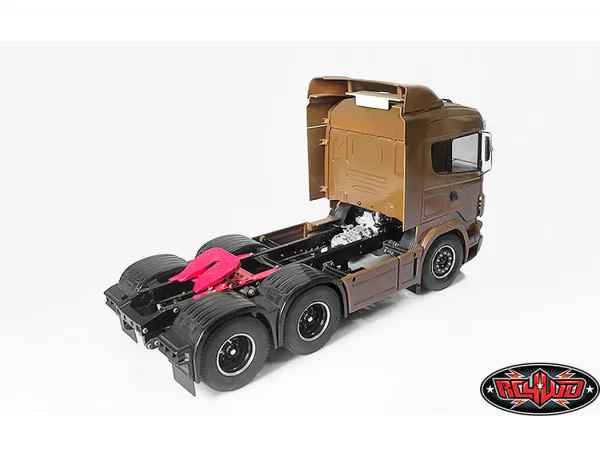

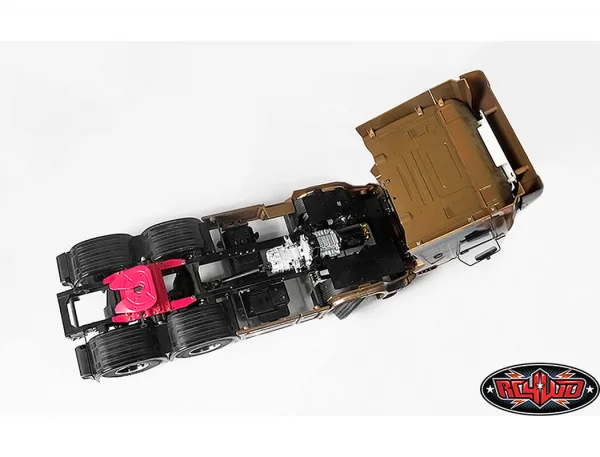

Shown installed with 35T Brushed Motor and Tamiya Semi Truck for example (Not Included)

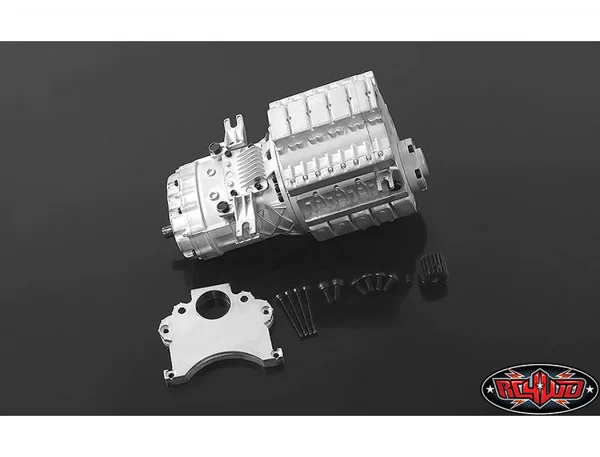

What's Included:
- 1x EcoDrive 1/14 CVT Automatic Transmission for Tamiya 1/14 Semi Trucks
- 1x Motor Mount Part (Plain)
- 1x 20T 30P Hardened Steel Pinion Gear (Black)
- 1x M3 x 4mm Set Screw (Black)
- 4x M2 x 14mm SHCS (Black)
- 4x M3 x 6mm BHCS (Black) (Z-S0651)
- 2x M3 x 6mm SHCS (Black)
Notes:
- Fits Tamiya 1/14 Series Truck,but you will need change Driveshaft. Click here for this detail.
- This product can be painted with Metal Paints.
- This product can become hot during use, please do not touch the unit during operation. Allow time for the unit too cool before you touch the transmission.
Key Info:
- Brand: RC4WD
- Part No: VVV-S0160
- Barcode: 639302585924
