Estes Rocket Motors - C6-3 (Pack3)

The Estes Rocket Motors - C6-3 (Pack3) are single-stage model rocket engines designed for reliable flights in lightweight rockets. Each 18 mm C6-3 is intended for rockets with a total lift weight under 4 oz (including the engine) and features a 3-second delay for ejection. Supplied as part number D-ES1613, this pack is ideal for frequent launches.

What’s Included

• 3 x C6-3 engines
• 4 x starters
• 4 x plugs

Features

• Single-stage, standard C6-3 engine
• 18 mm diameter
• 3-second delay
• Designed for model rocket flight in rockets weighing less than 4 oz (including engine)

Specifications

• Length: 2.8 in. (7 cm)
• Diameter: 18 mm
• Estimated Weight: 0.83 oz (23.5 g)
• Total Impulse: 10.00 N-sec
• Time Delay: 3 Seconds
• Estimated Max Lift Weight: 4.0 oz (113 g)

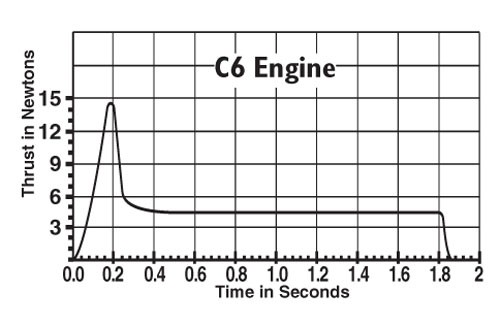

• Max Thrust: 15.30 Newtons (3.4 lbs)
• Thrust Duration: 1.60 Seconds
• Initial Weight: 0.83 oz (23.4 g)
• Propellant Weight: 0.43 oz (12.2 g)
• Quantity Per Pack: 3
