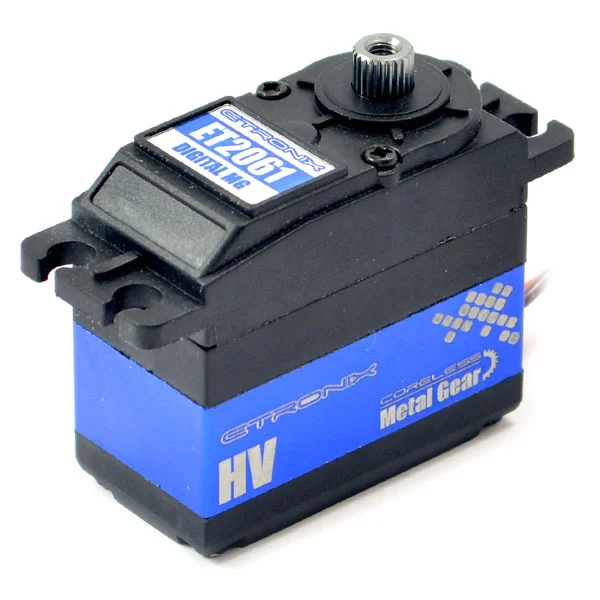

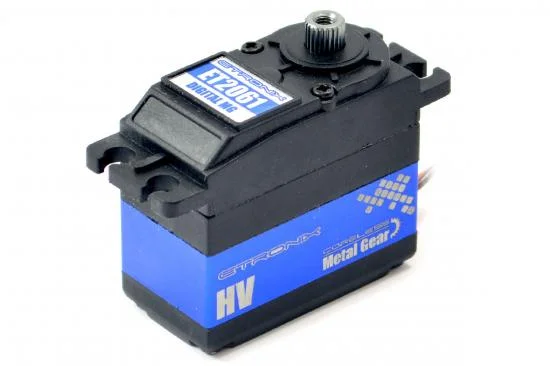

eTronix 15.8Kg 0.09s HV Metal Gear Digital Servo

The eTronix ET2061 is a high-voltage, standard-size digital servo designed for strong, precise control. Delivering up to 15.83 kg.cm of stall torque and a rapid 0.095 sec/60° transit speed at 8.4V, it pairs a coreless motor with high-precision aluminium metal gears, dual ball bearings and a CNC-machined aluminium middle case. The waterproof construction adds confidence when running in wet conditions.

Features

• High performance digital high voltage coreless standard servo
• High-precision aluminium gears with hard anodizing
• Dual ball bearings
• CNC aluminium middle hull
• Waterproof

Specifications

• Dead Band: 1 µs
• Working Frequency: 1520 µs / 330 Hz
• Motor: Coreless motor
• Operating Speed (6.0V): 0.112 sec/60°
• Operating Speed (8.4V): 0.095 sec/60°
• Stall Torque (6.0V): 12.86 kg.cm (178.59 oz/in)
• Stall Torque (8.4V): 15.83 kg.cm (219.83 oz/in)
• Dimensions: 40.5 x 20.5 x 36.5 mm (1.59 x 0.80 x 1.43 in)
• Weight: 59.3 g (2.09 oz)
• Connector Wire Length: JR 265 mm (10.43 in)
