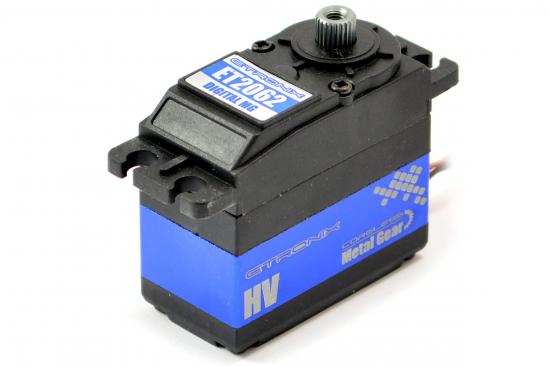

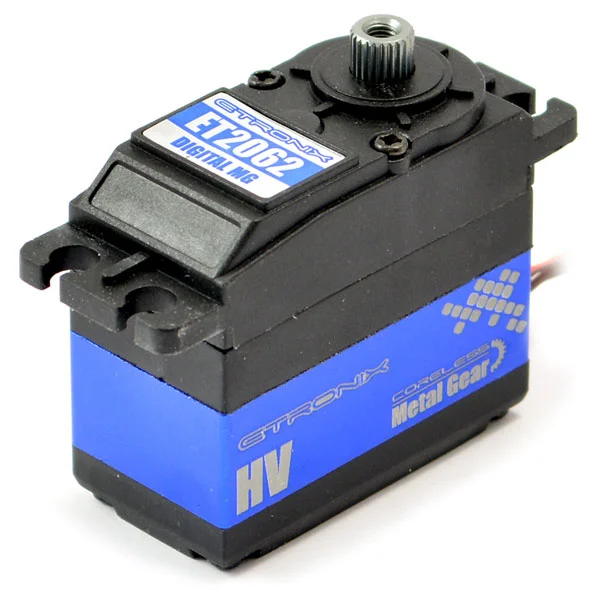

eTronix 20.3Kg/0.12S Std Digi High Voltage Servo Metal Gear

The eTronix ET2062 is a standard-size, high-voltage digital servo built for precision and durability. A coreless motor delivers responsive control with up to 20.32 kg.cm of holding torque and a swift 0.123 sec/60° transit time at 8.4V. High-precision aluminium metal gears, dual ball bearings and a CNC aluminium middle hull provide smooth operation and long service life, while a waterproof design helps protect performance in challenging conditions.

Features

• High performance digital high voltage coreless standard servo
• High-precision aluminium gears with hard anodizing
• Dual ball bearings
• CNC aluminium middle hull
• Waterproof

Specifications

• Dead Band: 1 μs
• Working Frequency: 1520 μs / 330 Hz
• Motor: Coreless motor
• Operating Speed (6.0V): 0.152 sec/60°
• Operating Speed (8.4V): 0.123 sec/60°
• Stall Torque (6.0V): 17.25 kg.cm (239.55 oz/in)
• Stall Torque (8.4V): 20.32 kg.cm (281.89 oz/in)
• Dimensions: 40.5 x 20.5 x 36.5 mm (1.59 x 0.80 x 1.43 in)
• Weight: 59.3 g (2.09 oz)
• Connector Wire Length: JR, 265 mm (10.43 in)
