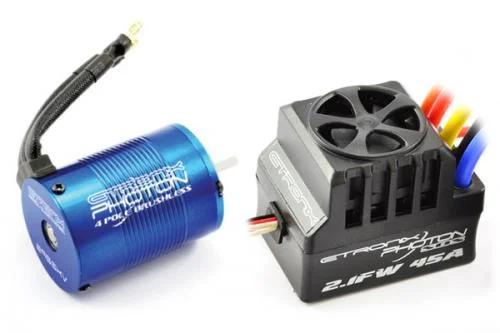

eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **
eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **

eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor ** CLEARANCE **

Brand: eTronix

Part No: ET0416

£60.89 RRP £86.99

In Stock: Usually ships same day

Collect Instore
Request Price Match Ask a Question Write a Review

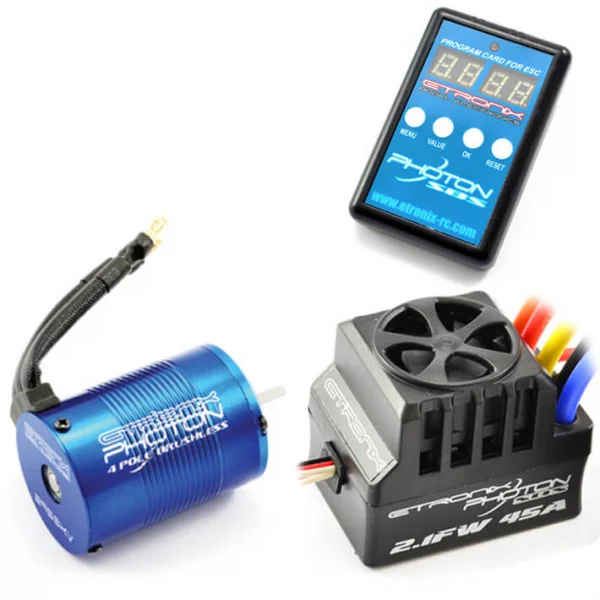

The eTronix Photon 2.1FW Waterproof 45A ESC Combo With 11.0R 3450kV Motor (ET0416) delivers the convenience and performance of brushless power in an easy-to-set-up, sensorless system. Supplied with a programmable set-up card (ET0107), it lets you fine-tune ten key parameters to match your driving style and surface. A practical upgrade from a stock brushed system and suggested for 1/10 buggy, truggy, short course and truck applications. Please observe the motor and battery limits below.

Key Features

  • Waterproof sensorless brushless system

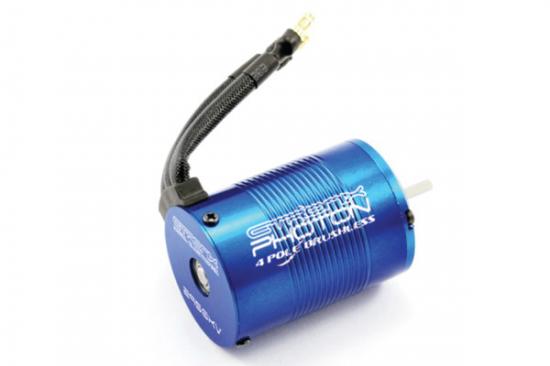

  • 11.0R 3450kV motor

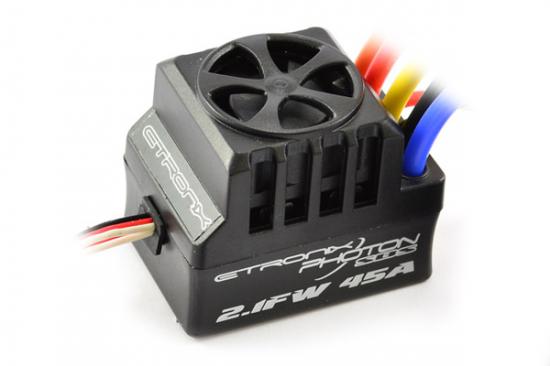

  • 45A constant current ESC, 260A burst
  • Supports 2–3S LiPo or 5–10S NiMH/NiCd
  • 2A 6V BEC output
  • Programmable with supplied set-up card (ET0107)
  • Simple installation and tuning

ESC Motor Limit

  • 2S battery: up to 4350kV
  • 3S battery: up to 2950kV
  • 4S battery: not compatible

Adjustable Parameters

  • Cutoff Voltage (auto cell count detection)
  • Running Mode (forward w/o reverse; forward/reverse; forward with pause then reverse)
  • Motor Timing (very low, low, normal, high, very high)
  • Initial Acceleration (low, medium, high, very high)
  • Throttle Percent Reverse (20% to 100%)
  • Throttle Limit (0% to 90%)
  • Percentage Braking (10% to 100%)
  • Percentage Drag Brake (0% to 30%)
  • Motor Rotation (normal, reverse)
  • Neutral Range (deadband 2% to 10%)

Specifications

  • 2–3S LiPo
  • 5–10S NiMH/NiCd
  • 2A 6V BEC output
  • 4-pole sensorless brushless motor
  • 45A constant current
  • 260A burst current

Suggested Compatibility

  • 1/10 buggy
  • 1/10 truggy
  • 1/10 short course
  • 1/10 truck
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

ETRONIX PHOTON 2.1FW COMBO W/11.0R 3450KV MOTOR/45A ESC

The convenience and performance of brushless technology is available for everyone with the Photon Sensorless Waterproof System from Etronix. Simple to set-up and with a range of sensible KV rated motors for most r/c car applications and abilities the Photon is the ideal brushless start-up package or upgrade from a stock brushed set-up. An ideal choice for any 1/10th buggy, truggy, short course or truck application.

With the supplied programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs.

When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.


ESC Motor Limit:

  • 2S Battery - 4350KV
  • 3S Battery - 2950KV
  • 4S Battery - Not Compatible

Adjustable Parameters

  • Cutoff Voltage (automatically detects the number of cells)
  • Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)
  • Motor Timing (very low, low, normal, high, very high)
  • Initial Acceleration (low, medium, high, very high)
  • Throttle Percent Reverse (20% through to 100%)
  • Throttle Limit (0% through to 90%)
  • Percentage Braking (10% through to 100%)
  • Percentage Drag Brake (0% through to 30%)
  • Motor Rotation (normal, reverse)
  • Neutral Range (deadband setting 2% through to 10%)

Specifications

  • 2-3S Lipo
  • 5-10S NiMH/NiCd
  • 2A 6V BEC Output
  • 4 Pole sensorless brushless motor
  • 45A Constant current
  • 260A Burst current





Key Info:
  • Brand: eTronix
  • Part No: ET0416
  • Barcode: 5055323967849

Additional Categories:

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
I'm fitting to upgrade the brushed system on my traxxas stampede. Would this combo work? Also the batteries I am pairing with this is Voltz 5000mAh Hard Case LiPo - 7.4V 2S 50C - Deans VZ0317. Will it physically fit the Stampede?
Ricky Venter / 22nd January 2024

Yes, this combo would work for you in that car, those batteried would be OK too.

Si @ Wheelspin Models
Will the motor fit in a tamiya chassis
Jeremy / 2nd July 2022

Yes this will fit most Tamiya chassis that take a 540 size motor.

Si @ Wheelspin Models
hi we have an ftx edge and we are looking to upgrade the motor, batterie and tire do you have any suggestions for me
Azhar / 15th February 2021

This would work nicely in there.

You could then run a 2S LiPo such as VZ0317

Ben @ Wheelspin Models
What battery connector does this come with and does any of it need soldering (which I'm not keen on)?
Jeremy Ebdon / 30th September 2020

There's no connector on these so you would normally solder on your choice of connector.

Ben @ Wheelspin Models
Would this fit into a DHK wolf 1/10 brushed as a replacement ?
Neil / 9th September 2020

Yes that would fit

Ben @ Wheelspin Models
Hi there I was wondering what would be the best brushless waterproof engine and chip as its for my electric FTX carnage buggy
Darren Evans / 24th August 2018

This would fit your Carnage, but you'd be better looking at a higher Amp ESC such as ET0421 or ET0430

Ben @ Wheelspin Models
Was looking at one of these combo packages to replace the brushed motor in a Maverick Strada. If this suitable? What is t he difference between 13.0R 2950kV and 11.0R 3450kV?
Steve Sherwood / 28th May 2018

If it's a Strada TC these would just about be OK - however they are not powerful enough for a truck/buggy. For those we'd look at say ET0430

Ben @ Wheelspin Models
Hi would this work/fit in a hpi esavage ??
Barrie / 5th April 2017

Yes, this would physically fit in your e-savage.

Ben @ Wheelspin Models
Would this fit on an interceptor 400 heli?
Andy / 6th January 2017

This is a car system, and I'm afraid we don't sell that heli so are unable to advise

Ben @ Wheelspin Models
