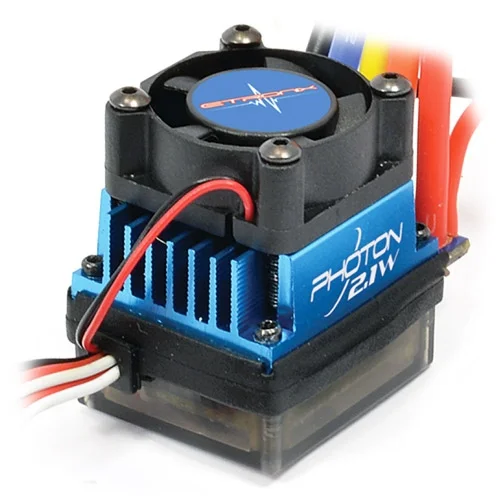

eTronix Photon 2.1W 60A Brushless ESC - FTX Spec
Brand: eTronix
Part No: ET0126FTX
In Stock: Usually ships same day
Finance options available at checkout.
Fits These Models (2)
Show all 2 models
Frequently Bought With
Other items customers often buy with the eTronix Photon 2.1W 60AMP Brushless ESC - FTX Spec
Description
The eTronix Photon 2.1W 60Amp Brushless ESC – FTX Spec (ET0126FTX) is a replacement ESC with short wires/connectors, with suggested compatibility for FTX cars. Suited to 1/10 applications, it provides a 60A constant current with 380A burst capability, splashproof construction and a 2A/6V BEC.
Supporting 2–3S LiPo or 5–10S NiMH/NiCd packs and 4‑pole sensorless brushless motors, this unit offers dependable control in a compact package. For fine tuning, pair it with the optional Etronix setup card (ET0107) to adjust up to ten parameters. Always observe the motor KV limits below when selecting batteries and motors.
ESC Motor Limit
- 2S Battery – 4350KV
- 3S Battery – 2950KV
- 4S Battery – Not compatible
Spec Check
- Splashproof
- 2–3S LiPo
- 5–10S NiMH/NiCd
- 2A 6V BEC output
- 4‑pole sensorless brushless motor
- 60A constant current
- 380A burst current
- Dimensions: 45 x 33 x 37 mm (without fan)
- Weight: 90 g
Secured by Stripe
eTronix Photon 2.1W 60AMP Brushless ESC - FTX Spec Manuals & Guides
Specifications
A replacement ESC wired specifically for FTX cars.
With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application. With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)
When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.
ESC Motor Limit:
- 2S Battery - 4350KV
- 3S Battery - 2950KV
- 4S Battery - Not Compatible
- Splashproof
- 2-3S Lipo
- 5-10S NiMH/NiCd
- 2A 6V BEC Output
- 4 Pole sensorless brushless motor
- 60A Constant Current
- 380A Burst Current
- Dimensions 45x33x37mm (without fan)
- Weight 90g
Key Info:
- Brand: eTronix
- Part No: ET0126FTX
- Barcode: 5056135717288
- Motor Type: Brushless
- Fitment: Standard Part
- LiPo Compatible: Yes
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Yes they are 3.5mm bullets exact spec of the ready to run versions in their cars..
Yes that should work OK in the FTX5571
For more in depth queries, please contact us.
