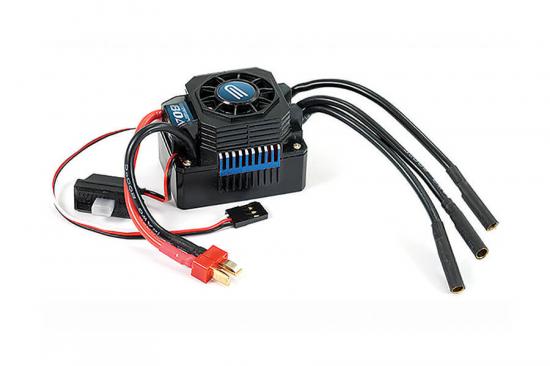

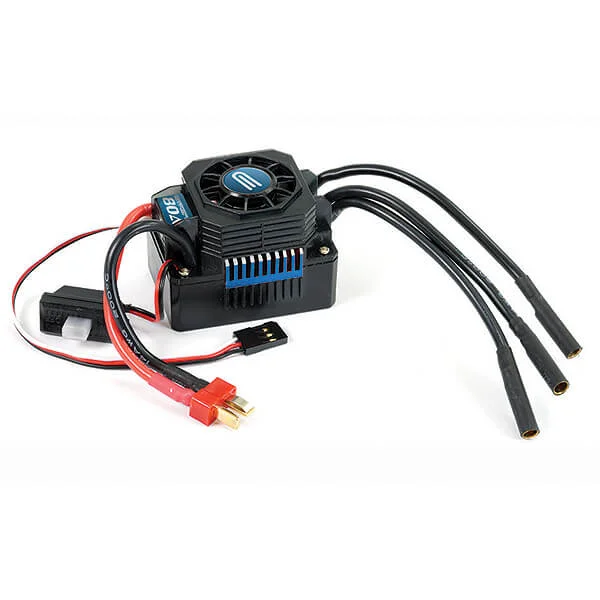

eTronix Photon 80A Brushless Speed Control

The eTronix Photon 80A Brushless Speed Control (ET1210) is a sensorless ESC offering 80A continuous and 480A burst performance, with waterproofing when the cooling fan is not installed. It supports 2–3S LiPo or 6–9S NiMH/NiCd packs and provides a 3A, 6.1V BEC for dependable receiver and servo power. Suggested compatibility is for 1/10th applications within the Photon range.

Fine-tune throttle and braking behaviour using the optional eTronix programmable set-up card (ET0449), allowing parameters to be adjusted to suit your driving needs.

Key Features

• Waterproof (without fan installed)
• 2–3S LiPo support
• 6–9S NiMH/NiCd support
• 3A 6.1V BEC output
• Sensorless brushless motor compatible
• 2S: 3670 size or smaller, 3000kV motor limit
• 3S: 3670 size or smaller, 2500kV motor limit
• 80A constant current
• 480A burst current

Specifications

• Dimensions: 51.5 x 38.5 x 38.5 mm (without fan)
• Weight: 84 g
