Spektrum Firma 1/10 Smart Outrunner Combo SPMXSEMC22
Brand: Spektrum
Part No: SPMXSEMC22
Expected 12th October 2026
Request Stock NotificationFinance options available at checkout.
Fits These Models (7)
Description

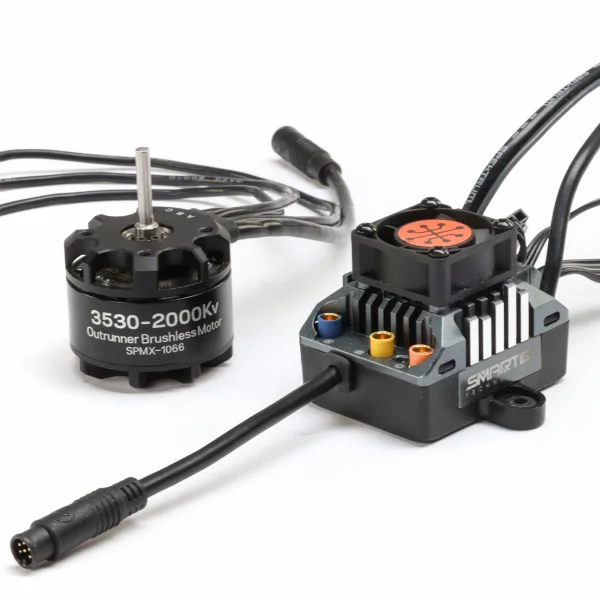

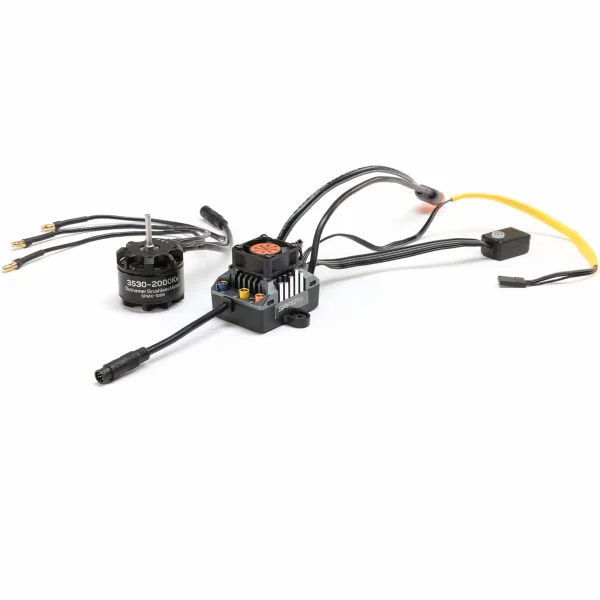

The Spektrum Firma 1/10 Smart Sensored Outrunner Motor/ESC 2-in-1 Combo (SPMXSEMC22) delivers smooth, precise low-speed control for crawling and scale trail driving. Developed specifically for 1/10 crawlers and scalers, it combines the matched Firma 80A Smart ESC (SPMXSE2060S) with the sensored Firma 3530-2000Kv 14-pole outrunner motor (SPMX-1066) for dependable performance and excellent throttle feel.
Engineered for durability and efficiency, the motor features a low-cog 12-pole, 14-magnet rotor design inside a CNC-machined aluminium housing, with insulated high-purity copper windings, a 3.175mm (1/8") alloy steel output shaft, and precision bearings for smooth rotation. Pre-installed 3.5mm gold-plated bullet connectors simplify installation, while Smart all-in-one telemetry and flexible programming on the ESC make setup and tuning straightforward.
Spektrum Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S) Features
- Smart All-In-One Telemetry
- Enable/Disable Drag Brake From Compatible Spektrum Transmitters
- Fast, Powerful 32-Bit ARM M4 Processor
- Multiple Programming Options
- Multi-Point Protection
- Waterproof (See Instructions For Details)
Spektrum Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor (SPMX-1066) Features
- 2-3S LiPo Power Compatible
- 12-pole Outrunner
- 3.175mm Output Shaft
- Pre-installed 3.5mm Gold-plated Bullet Connectors
Suggested compatibility includes 1/10-scale crawlers and scale trucks where ultra-smooth, sensored low-speed control and reliable Smart telemetry are desirable.
Secured by Stripe
Firma 1:10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo Manuals & Guides
Manuals & Guides
Specifications
The Spektrum™ Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).
Spektrum Firma 80A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S) FeaturesFirma 1:10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo Specifications:
- Auto Cutoff: Yes
- BEC Voltage: 6V/7.4V at 6A
- Brakes: Yes
- Connector Type: IC3, 3.5mm Bullet
- ESC Type: Sensored Brushless Ourunner
- Forward: Yes
- Input Voltage: 2-4S LiPo
- LiPo Compatibility: 2S,4S
- Low-Voltage Cutoff Programmable: Yes
- Maximum Burst Current: 360A
- Maximum Continuous Current: Yes
- Motor Limit: 2000Kv (4S)
- Number of Poles: 12
- Overload Protection: Yes
- Reverse: Yes
- RPM/Volt (Kv): 2000Kv
- Shaft Diameter: 3.175" (81 mm)
- Shaft Length: 18.5" (470 mm)
- Technology: Smart
What's in the Box:
- (1) Firma 60A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S)
- (1) Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm (SPMX-1066)
Key Info:
- Brand: Spektrum
- Part No: SPMXSEMC22
- Barcode: 0660132888299
- Fitment: Standard Part
