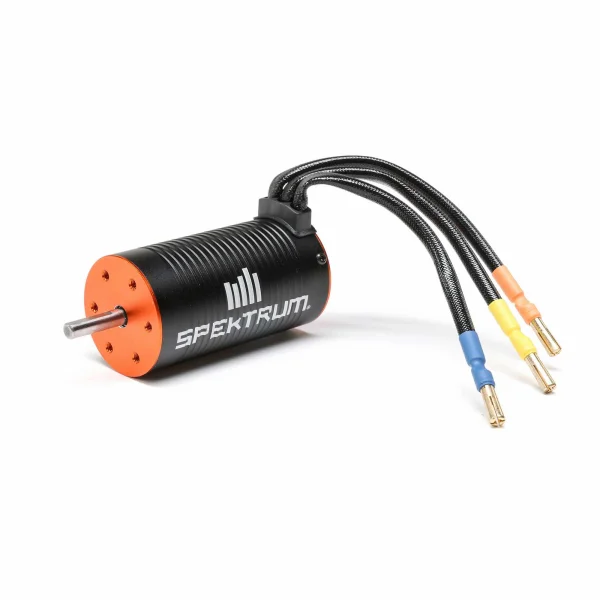

Spektrum Firma 1900Kv 550 Brushless Motor
Brand: Spektrum
Part No: SPMXSM2200
Supplier Stock: Expected September 12th
Request Stock NotificationFinance options available at checkout.
Fits These Models (12)
Description
The Spektrum Firma 1900Kv 550 Brushless Motor (SPMXSM2200) delivers smooth, efficient power for 1/10 scale applications. Its low-cog 4‑pole, 8‑magnet inrunner design is housed in a CNC‑machined aluminium can with insulated high‑purity copper windings, a hardened 4 mm output shaft and precision bearings for durability and smooth rotation. Preinstalled 4 mm gold‑plated bullet connectors make installation straightforward, and it is perfectly matched to the Spektrum Firma 100 Smart ESC.
Suggested compatibility includes 1/10 buggies, truggies and monster trucks running 2S–4S LiPo power.
Features
- Perfect upgrade for 1/10 scale buggies, truggies or monster trucks running on 2–4S LiPo batteries
- High‑efficiency design
- 4S LiPo power capable
- High‑quality 4‑pole sintered rotor
- Preinstalled 4 mm gold‑plated bullet connectors
- High‑quality construction with precision ball bearings and hardened steel 4 mm shaft
Specifications
- Motor Size: 3660
- Motor Type: Brushless
- Motor Design: Inrunner
- Sensored: No
- RPM/Volt (Kv): 1900Kv
- Efficiency: 86%
- Number of Poles: 4
- Input Voltage: 12–25.2V (2S–6S range stated; designed for 2S–4S LiPo setups per application)
- Maximum Continuous Current: 60A
- Output: 985W (3S)
- Connector Type: 4 mm bullet
- Shaft Diameter: 0.157" (4 mm)
- Outer Diameter: 1.41" (36 mm)
- Product Length: 2.68" (68 mm)
- Product Weight: 0.91 lb (416 g)
What’s In The Box
- Firma 1900Kv 4‑Pole Brushless Motor
Required To Complete
- 100A ESC
Secured by Stripe
Firma 1900Kv 550 Brushless Motor Manuals & Guides
Specifications
The Firma 1900Kv brushless motor is a perfect option for 1/10 scale buggies, truggies or monster trucks with 2S-4S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 100 Smart ESC.
- Perfect upgrade for 1/10 scale buggies, truggies or monster trucks running on 2-4S LiPo batteries
- High efficiency design
- 4S LiPo power capable
- High-quality 4-pole sintered rotor
- 4mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 4mm shaft
- Perfect upgrade for 1/10 scale buggies, truggies or monster trucks running on 2-4S LiPo batteries
- High efficiency design
- 4S LiPo power capable
- High-quality 4-pole sintered rotor
- 4mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 4mm shaft
Firma 1900Kv 550 Brushless Motor Specifications:
- Application: 1/10 scale buggy, truggy or monster trucks with 2S-4S LiPo powered setup
- Connector Type: 4mm Bullet
- Efficiency: 86%
- Input Voltage: 12 - 25.2V
- Maximum Continuous Current: 60A
- Motor Design: Inrunner
- Motor Size: 3660
- Motor Type: Brushless
- Number of Poles: 4
- Outer Diameter: 1.41" (36 mm)
- Output: 985W (3S)
- Part Type: Electronics
- Product Length: 2.68" (68 mm)
- Product Weight: 0.91lbs (416g)
- RPM/Volt (Kv): 1900Kv
- Sensored: No
- Shaft Diameter: 0.157" (4 mm)
What's in the Box:
- Firma 1900Kv 4-Pole Brushless Motor
Firma 1900Kv 550 Brushless Motor Requires to Complete:
- 100A ESC
Key Info:
- Brand: Spektrum
- Part No: SPMXSM2200
- Barcode: 605482719732
- Fitment: Option Part
- Fitment: Standard Part
