Firma 2800Kv Brushless Sensored Crawler Motor
Brand: Spektrum
Part No: SPMXSM3002
Out Of Stock
Request Stock NotificationThe Spektrum Firma 2800Kv Brushless Sensored Crawler Motor (SPMXSM3002) is designed for smooth, low-cog performance in 1/10 applications. It features a 4-pole, 8-magnet rotor within a CNC-machined aluminium housing, insulated high-purity copper windings, precision bearings and a hardened 1/8" output shaft. Preinstalled 3.5mm gold-plated bullet connectors and a waterproof sensor wire with locking plug and gasket make installation straightforward.
Key Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" bore).
- High-quality 4-pole sintered rotor.
- Polarity protection via magnetic encoder for consistent phase signals; match wire colour to ESC connectors when installing.

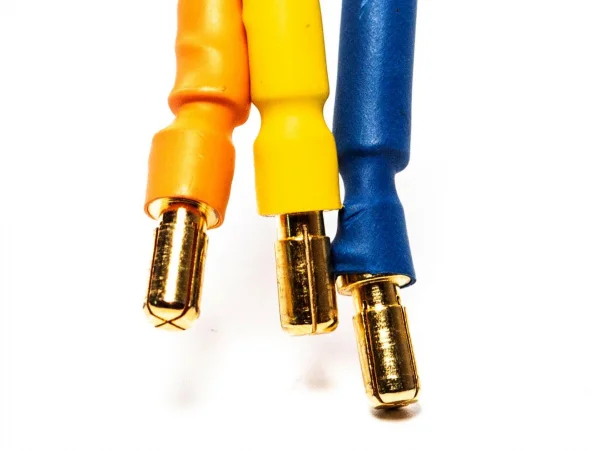

- 3.5mm gold-plated bullet connectors.

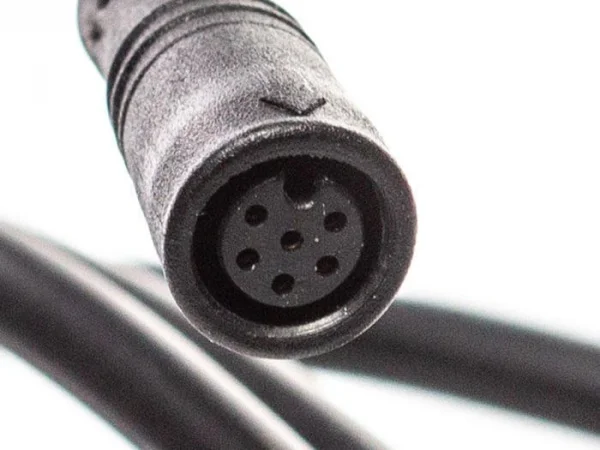

- Waterproof sensor wire with locking plug and gasket.
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft.
Specifications
- Motor class/size: 1/10 scale, 540 sensored, 2800Kv
- Input voltage: 7.4–11.1V (2S–3S LiPo)
- RPM/Volt (Kv): 2800Kv
- Number of poles: 4
- Connector type: 3.5mm bullet; motor output lead: 3.5mm
- Product length: 58 mm; outer diameter: 36 mm
- Shaft diameter: 0.125" (3 mm)
- Maximum continuous current: 50A
- Constant wattage: 500–749W
- Water-resistant; bearing-supported output shaft
- Forward/Reverse: Yes
- Recommended ESC: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Suggested Compatibility
- 1/10 scale crawlers, rock racers, rock bouncers and trailers using 2S–3S LiPo power
Secured by Stripe
The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The
Features- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect for high speed off-road applications such as rock bouncers and rock racers
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
- 3.5mm gold plated bullet connectors
- Waterproof sensor wire with locking plug and gasket
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Firma 2800Kv Brushless Sensored Crawler Motor Specfications:
- Connector Type: 3.5mm Bullet
- Motor Class: 1/10 Scale
- Motor Size: 540-2800Kv Brushless Sensored
- Product Length: 2.27" (58 mm)
- Input Voltage: 7.4 - 11.1V
- Kv Rating: 2500-2999Kv
- Motor Output Lead: 3.5mm
- Product Application: Crawling, Surface
- Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
- RPM/Volt (Kv): 2800Kv
- Sensored: Yes
- Sensor Type: Sensored FOC
- Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
- Number of Poles: 4
- Shaft Diameter: 0.125" (3 mm)
- Water-Resistant: Yes
- Constant Wattage: 500-749W
- Maximum Continuous Current: 50A
- Motor Type: Brushless
- Outer Diameter: 1.42" (36 mm)
- Integrated ESC: No
- Bushing Or Bearing: Bearing
- Forward: Yes
- Reverse: Yes
Key Info:
- Brand: Spektrum
- Part No: SPMXSM3002
- Barcode: 0605482725641
- Fitment: Option Part
