Spektrum Firma 80A Smart Outrunner Combo – SPMXSEMC23
Brand: Spektrum
Part No: SPMXSEMC23
Supplier Stock: Expected September 12th
Request Stock NotificationFinance options available at checkout.
Fits These Models (7)
Description

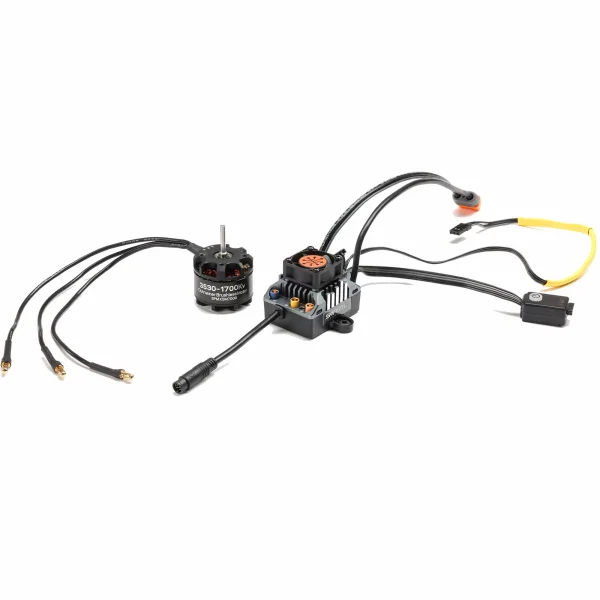

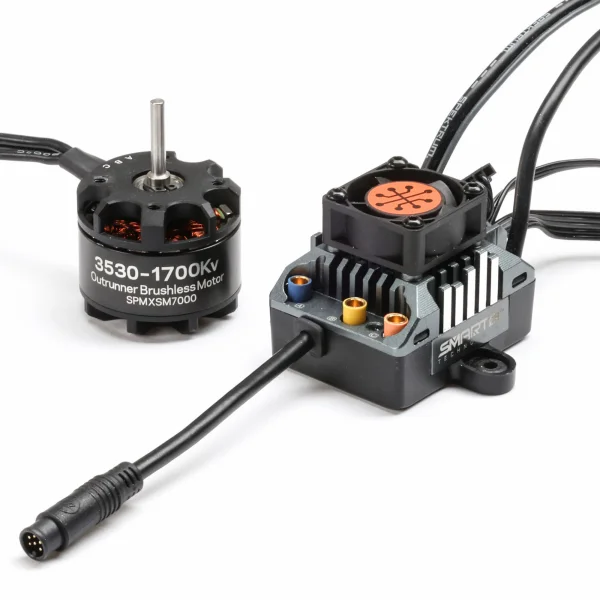

The Spektrum Firma 80A Sensored/Sensorless Smart Outrunner Motor/ESC 2-in-1 Combo (SPMXSEMC23) pairs the Firma 80A Smart ESC (SPMXSE2060S) with the Firma 3530-1700Kv 12-pole outrunner motor (SPMXSM7000) to deliver ultra-smooth, low-speed control and high reliability. Designed for 1/10 scale applications running on 2S–4S LiPo, it provides robust performance, real-time Smart telemetry to compatible Spektrum transmitters, and convenient drag brake enable/disable from the radio. A waterproof design (see instructions) helps keep you moving in varied conditions.
ESC Features
- Smart all-in-one telemetry
- Enable/disable drag brake from compatible Spektrum transmitters
- Fast, powerful 32-bit ARM M4 processor
- Multiple programming options
- Multi-point protection
- Waterproof (see instructions for details)
Motor Features
- 2–4S LiPo power compatible
- 12-pole outrunner with low-cog 14-magnet rotor design
- CNC machined aluminium housing
- Insulated high-purity copper windings
- High-quality alloy steel 3.175mm (1/8 in) output shaft
- Precision bearings for smooth rotation
- Pre-installed 3.5mm gold-plated bullet connectors
Suggested Compatibility
- 1/10 scale crawlers and scalers seeking ultra-smooth, low-speed throttle control
Secured by Stripe
Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2- Manuals & Guides
Manuals & Guides
Specifications
The Spektrum™ 1/10th Scale Smart Sensored-Sensorless ESC + Motor Combo is a great choice for 1/10th scale crawlers and models running on 2S – 4S LiPo power. This 1700Kv motor features a low cog 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed to provide ultra-smooth, low speed control, performance, and high reliability. The motor is preinstalled with 3.5mm gold-plated bullet connectors for easy installation, and perfectly matched for the included Firma 80A Smart ESC. This waterproof, 80A Sensored/sensorless ESC drives your 1/10th scale crawler or scaler through almost any conditions imaginable, with ultra-smooth control, performance, and reliability — while feeding real-time telemetry straight to your Spektrum™ transmitter! This ESC includes the ability to disable drag brake from compatible SPM transmitters.
Spektrum Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S) FeaturesFirma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2- Specifications:
- Amperage: 80A
- Auto Cutoff: Yes
- BEC Voltage: 6V/7.4V at 6A
- Connector Type: 3.5mm Bullet, IC3
- ESC Type: Sensored Brushless
- Forward: Yes
- Input Voltage: 2-4S LiPo
- LiPo Compatibility: 2S, 4S, 3S
- Low-Voltage Cutoff Programmable: Yes
- Maximum Burst Current: 360A
- Motor Limit: 4S less than 2000Kv, 3S up to 2500Kv
- Number of Poles: 12
- Overload Protection: Yes
- Reverse: Yes
- RPM/Volt (Kv): 1700Kv
- Shaft Diameter: 3.175" (81 mm)
- Shaft Length: 18.5" (470 mm)
- Technology: Smart
What's in the Box:
- (1) Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S)
- (1) Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor, 3.175mm (SPMXSM7000)
Key Info:
- Brand: Spektrum
- Part No: SPMXSEMC23
- Barcode: 0660132887490
- Fitment: Standard Part
