Description

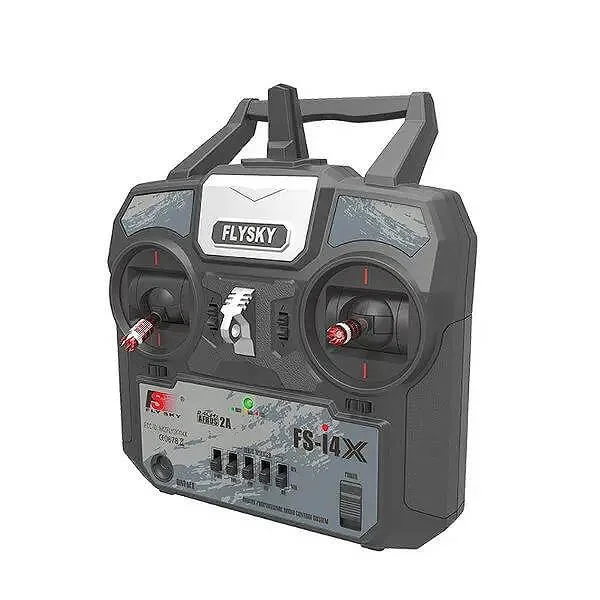

The FlySky FS-i4X 4-channel 2.4GHz radio system (Mode 1, right-hand throttle) pairs the FS-i4X transmitter with the FS-A6 6-channel receiver for reliable control across RC aeroplanes, gliders and helicopters. Built on AFHDS 2A/AFHDS with GFSK modulation, it delivers strong anti-interference performance, V-MIX mixing and DIY expandability up to 10 channels. Part number FS-I4X-A6M1.
Key Features
- 2.4GHz operation over 2.4055–2.475GHz with 140 channels
- AFHDS 2A system with automatic single/two-way mode switching
- High-gain, multi-directional antenna and high-sensitivity receiver
- Unique ID binding to improve interference immunity and safety
- Multiple channel coding and error correction for stable communication
- Low-power electronics and intermittent RF modulation to reduce consumption
- V-MIX mix control system; compatible with many model types
- DIY expansion available to increase from 4CH to 10CH
Transmitter Specifications (FS-i4X)
- Mode: Mode 1 (Right Hand Throttle)
- Band Range: 2.4055–2.475GHz (140 channels)
- Channels: 4–10CH (DIY expansion)
- Model Type: RC Airplane/Glider/Helicopter
- RF Power: less than 20 dBm
- Bandwidth: 500 kHz
- 2.4GHz System: AFHDS 2A / AFHDS
- Modulation: GFSK
- Stick Resolution: 1024
- Low Voltage Warning: below 4.2 V
- DSC Port: PS2 PPM
- Chargeable: No
- Antenna Length: 26 mm × 2
- Weight: 335 g
- Power: 6 V DC (4 × AA, not included)
- Display: LED indicators
- Size: 174 × 89 × 190 mm
- Colour: Black
- Certificates: CE0678, FCC
Receiver Specifications (FS-A6)
- Channels: 6
- Model Type: Fixed-wing/Glider/Helicopter
- RF Range: 2.4055–2.475GHz
- RF Channels: 140
- Receiver Sensitivity: -105 dBm
- Bandwidth: 500 kHz
- 2.4GHz System: AFHDS 2A
- Modulation: GFSK
- Power: 4.0–6.5 V DC
- Antenna Length: 26 mm
- Weight: 13 g
- Size: 45 × 23 × 9 mm
- i-BUS Port: No
- Data Acquisition Port: No
- Colour: Grey (Transparent)
- Certificates: CE0678, FCC
What’s Included
- 1 × FlySky FS-i4X Transmitter
- 1 × FlySky FS-A6 Receiver
Secured by Stripe
Specifications
FLYSKY FS-i4X 4CH 2.4GHZ RADIO SYSTEM w/A6 RECEIVER MODE 1Features
- With strong initiative and passive anti-interference ability and V-MIX mix control system,compatible with many models.
- According to your own needs,you can DIY expansion channel,this item can be expaned to 10CH.
- Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 140 independent channels.
- This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
- Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
- This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
- AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
- AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
Specifications (Tramsmitter)
Mode (optional): Mode 1 (Right Hand Throttle)
Band Range: 2.4055-2.475GHz
Band Amount: 140
Channel: 4-10CH
Model Type: RC Airplane/Glider/Helicopter
RF Power: <20dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFHDS
Modulation Type: GFSK
Stick Resolution: 1024
Low Voltage Warning: <4.2V
DSC Port: PS2 PPM
Chargeable: No
Antenna Length: 26mm *2
Weight: 335g
Power: 6V DC 1.5AA*4(Not included)
Display: LED Indicators
Size: 174*89*190mm
Colour: Black
Certificate: CE0678, FCC
Specification of Receiver
Channels: 6
Model Type: Fixed-Wing/Glider/ Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm
Weight: 13g
Size: 45*23*9mm
i-BUS Port: No
Data Acquisition Port: No
Colour: Grey (Transparent)
Certificate: CE0678, FCC
What's Included
- 1x Flysky FS-i4X Transmitter
- 1x Flysky FS-A6 Receiver
Key Info:
- Brand: FlySky
- Part No: FS-I4X-A6M1
- Barcode: 5056135759332
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 6 Channel
- Format: Stick
