Other items customers often buy with the FlySky FS-ST8 Transmitter with SR8 Receiver
Description

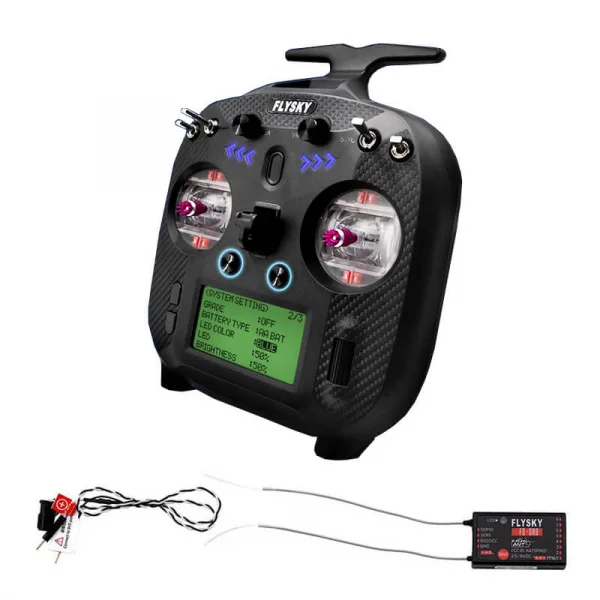

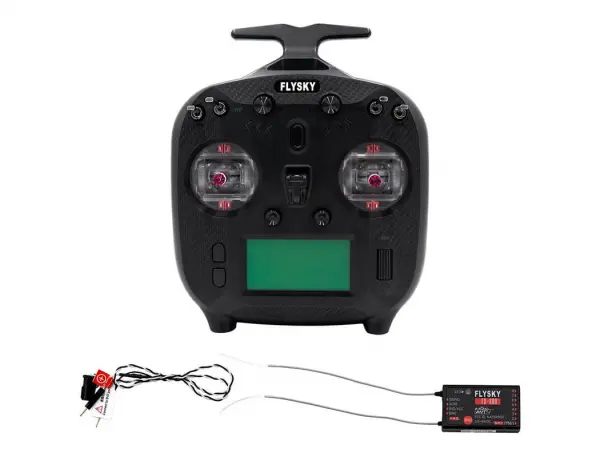

The FlySky FS-ST8 8-channel 2.4GHz radio system with SR8 8-channel receiver (part number FS-ST8+SR8-8CH) delivers digital proportional control with the ANT protocol, versatile outputs, and a clear LCD interface. Designed to be lightweight and ergonomic, it offers a comfortable grip for extended sessions and straightforward setup via an RX SET menu for comprehensive receiver configuration.
Features
- Digital proportional radio control system

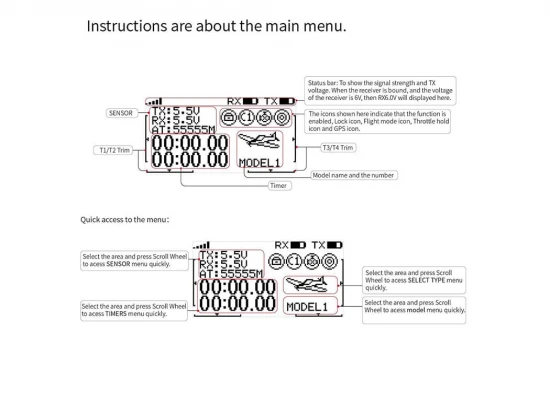

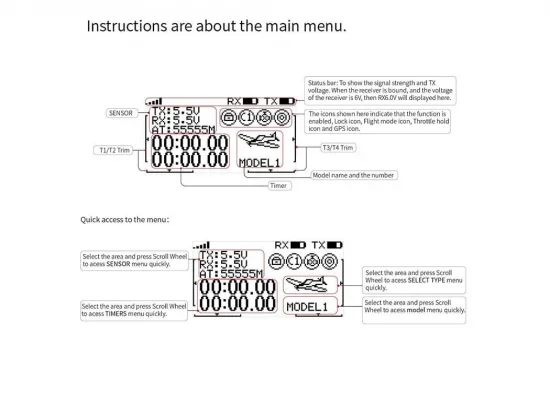

- RX SET menu for extensive receiver configuration
- User-friendly design for easy operation
- Lightweight and portable for convenient use
- Ergonomic grip with comfortable hand feel

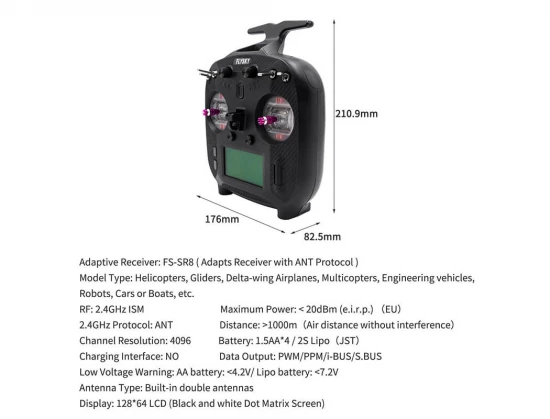

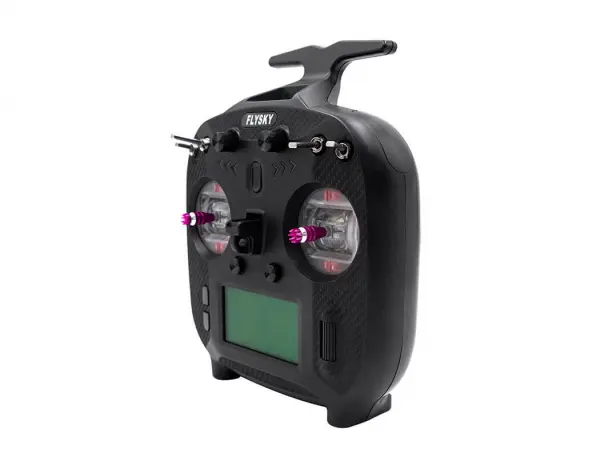

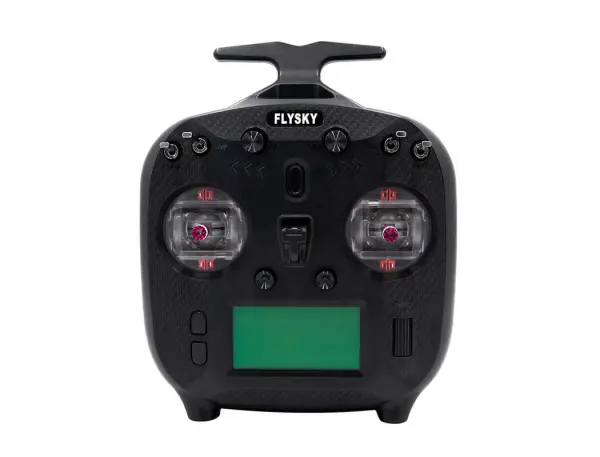

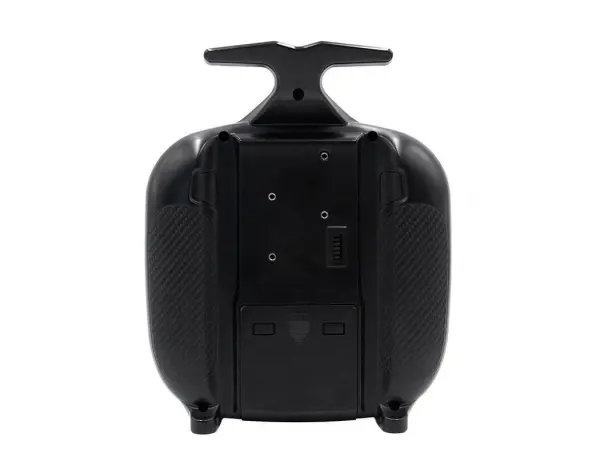

Specifications – Transmitter (FS-ST8)
- Channels: 8–10
- Adaptive Receiver: FS-SR8 (ANT protocol)
- RF/Protocol: 2.4GHz ISM, ANT
- Maximum Power: < 20dBm (e.i.r.p.) (EU)
- Distance: >1000 m (air distance without interference)
- Channel Resolution: 4096
- Data Output: PWM / PPM / i-BUS / S.BUS
- Battery: 4 x 1.5V AA or 2S LiPo (JST)
- Charging Interface: No
- Low Voltage Warning: AA < 4.2V; LiPo < 7.2V
- Antenna Type: Built-in double antennas
- Display: 128 × 64 LCD (black and white dot matrix)
- Languages: Chinese, English
- Online Update: Yes
- Colour: Black
- Temperature Range: -10℃ to +60℃
- Humidity Range: 20% to 95%
- Size: 176 × 210.9 × 82.5 mm
- Weight: 420 g

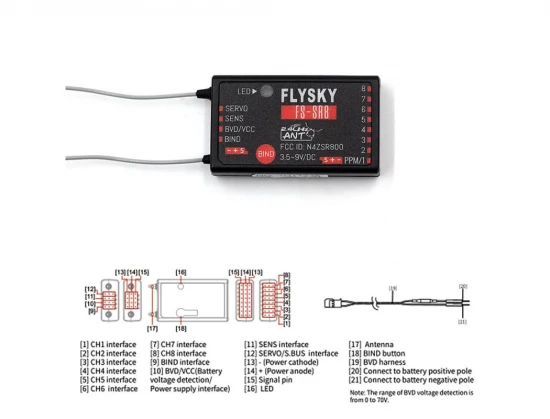

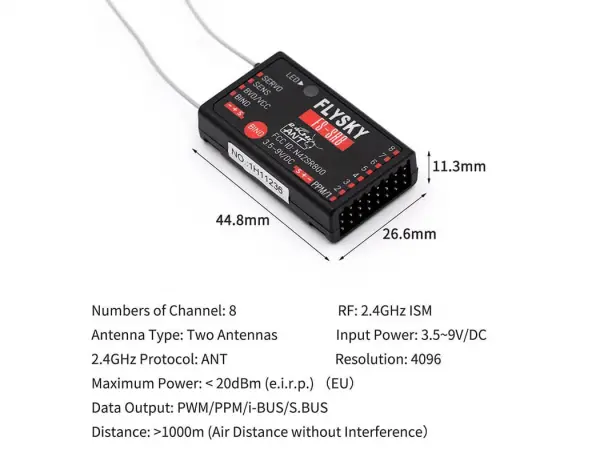

Specifications – Receiver (FS-SR8)
- Product Model: FS-SR8
- Adaptive Transmitter: FS-ST8 (ANT protocol)
- Numbers of Channels: 8
- RF/Protocol: 2.4GHz ISM, ANT
- Maximum Power: < 20dBm (e.i.r.p.) (EU)
- Distance: >1000 m (air distance without interference)
- Antenna Type: Two antennas
- Input Power: 3.5–9V DC
- Data Output: PWM / PPM / i-BUS / S.BUS
- Online Update: Yes
- Temperature Range: -10℃ to +60℃
- Humidity Range: 20% to 95%
- Size: 44.8 × 26.6 × 11.3 mm
Suggested Compatibility
Based on the manufacturer’s stated model types, suggested compatibility includes:
- Helicopters, gliders, delta-wing aeroplanes, multicopters
- Engineering vehicles, robots, cars or boats
What’s Included
- 1 x Transmitter
- 1 x Receiver
Secured by Stripe
Specifications
- Digital proportional radio control system.
- The RX SET (receiver setting) menu provides a number of the function setting menus to allow you to set up the receiver system in all aspects.
- Designed for ease of use with intuitive controls.
- Lightweight and compact making it easy to carry and use.
- The ergonomic shape ensures a comfortable grip and reduces hand fatigue, even during extended use.
- Also available as a 12 Channel upgrade version with extra buttons and shoulder wheels.

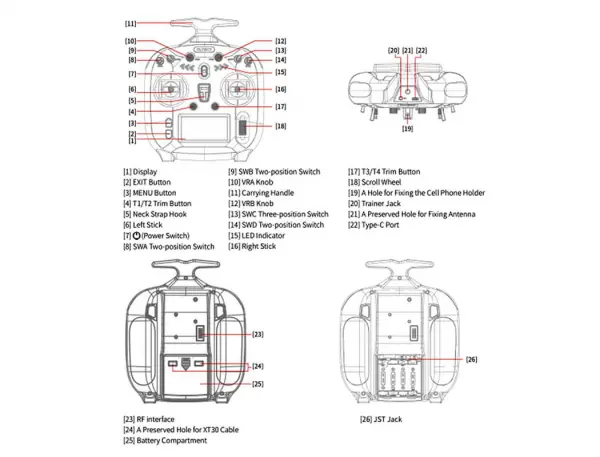

Product Model: FS-ST8
Number of Channels: 8-12
Compatible Receiver: FS-SR8 (Adapts receiver with ANT protocol)
Compatible RC Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, robots, cars or boats
Wireless Frequency: 2.4GHz ISM
Maximum Power: <20dBm (E.I.R.P)(EU)
RF Protocol: ANT
Distance: More than 1000m (Air distance without interference)
Resolution: 4096
Input Power: 1.5AA*4 or 2S Lipo (JST)
Charging Jack: None
Data Connector: USB Type-C, 3.5mm audio jack
Low Voltage Warning: AA battery <4.2V, Lipo Battery <7.2V
Antenna: Built-in double antennas
Display: 128*64 LCD (dot matrix screen)
Temperature Range: -10C ~ +60C
Humidity Range: 20% ~ 95%
Firmware Update: Supported
Colour: Black
Dimensions: 176 x 210.9 x 82.5mm
Weight: 420g
Certifications: CE, FCC ID: : N4ZST800
Product Model: FS-SR8
Compatible Transmitters: FS-ST8 (Adapts transmitter with ANT protocol)
Compatible RC Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, cars or boats
Number of PWM Channels: 8
Wireless Frequency: 2.4GHz ISM
RF Protocol: ANT
Resolution: 4096
Distance: More than 1000m (Air distance without interference)
Antenna: Two antennas
Operating Voltage: 3.5~9V DC
Data Output: PWM/PPM/i-BUS/S.BUS
Firmware Update: Supported
Temperature Range: -10C ~ +60C
Humidity Range: 20% ~ 95%
Weight: 10g
Dimensions: 44.8 x 26.6 x 11.3mm
Certifications: CE, FCC ID: 2A2UNSR800
- 1 x ST8 Transmitter
- 1 x SR8 Receiver
Key Info:
- Brand: FlySky
- Part No: FS-ST8+SR8-8CH
- Barcode: 5056135786284
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 8 Channel
- Format: Stick
