Description

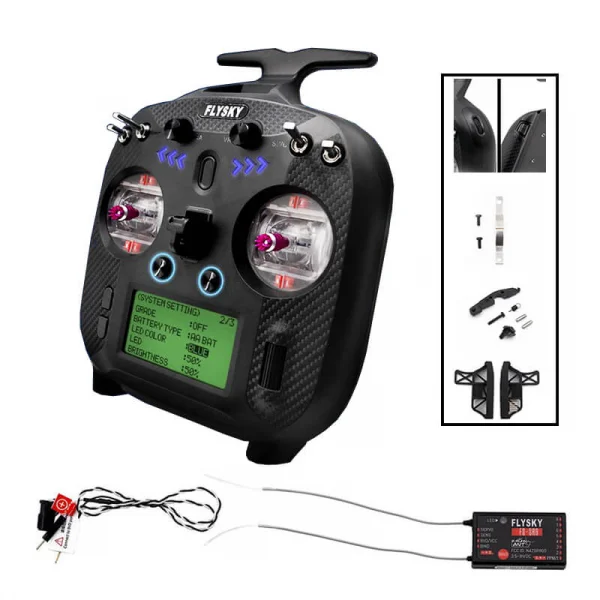

The FlySky FS-ST8 12CH 2.4G Radio System with 8CH SR8 Receiver (part number FS-ST8+SR8-12CH) delivers a versatile, upgraded control solution for a wide range of RC applications. This latest version adds pre-installed shoulder wheels and extra rear channel buttons, and includes user-installable accessories such as a JR bay adapter, a throttle pressure plate and return-to-centre components.
Key Features
- Digital proportional radio control system with intuitive, easy-to-use interface.
- RX SET menu for comprehensive receiver configuration.
- Lightweight, compact handset with ergonomic grip to reduce fatigue during long sessions.
- Upgraded controls with extra shoulder wheels and rear buttons.
Handset Specifications (FS-ST8)
- Channels: 8–12
- Wireless: 2.4GHz ISM, ANT RF protocol
- Maximum Power: <20 dBm E.I.R.P (EU)
- Range: More than 1000 m (air distance without interference)
- Resolution: 4096
- Power Input: 4x AA or 2S LiPo (JST)
- Charging Jack: None
- Connectors: USB Type-C, 3.5 mm audio jack
- Low Voltage Warning: AA <4.2 V, LiPo <7.2 V
- Antenna: Built-in double antennas
- Display: 128×64 LCD (dot matrix)
- Operating Temp/Humidity: -10°C to +60°C; 20%–95% RH
- Firmware Update: Supported
- Colour: Black
- Dimensions/Weight: 176 × 210.9 × 82.5 mm; 420 g
- Certifications: CE; FCC ID: N4ZST800
Receiver Specifications (FS-SR8)
- PWM Channels: 8
- Wireless: 2.4GHz ISM, ANT RF protocol
- Resolution: 4096
- Range: More than 1000 m (air distance without interference)
- Antenna: Dual antennas
- Operating Voltage: 3.5–9 V DC
- Data Output: PWM / PPM / i-BUS / S.BUS
- Operating Temp/Humidity: -10°C to +60°C; 20%–95% RH
- Firmware Update: Supported
- Dimensions/Weight: 44.8 × 26.6 × 11.3 mm; 10 g
- Certifications: CE; FCC ID: 2A2UNSR800
Suggested Compatibility
- Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes
- Multicopters and racing drones
- RC cars and boats
- Robots
What’s Included
- 1 × ST8 upgraded transmitter
- 1 × SR8 receiver
- 1 × JR bay adapter
- 1 × Setback throttle pressure plate
- 1 × Return-to-centre modification parts
Secured by Stripe
Specifications
This is the upgraded version, featuring additional shoulder wheels and extra rear channel buttons (installed). Also included in the box for user installation are a JR bay adapter, a throttle pressure plate and throttle return-to-centre components.
Features- Digital proportional radio control system.
- The RX SET (receiver setting) menu provides a number of the function setting menus to allow you to set up the receiver system in all aspects.
- Designed for ease of use with intuitive controls.
- Lightweight and compact making it easy to carry and use.
- The ergonomic shape ensures a comfortable grip and reduces hand fatigue, even during extended use.
- Extra shoulder wheels.
- Extra rear buttons.
Product Model: FS-ST8
Number of Channels: 8-12
Compatible Receiver: FS-SR8 or SR12 (Adapts receiver with ANT protocol)
Compatible RC Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, robots, cars or boats
Wireless Frequency: 2.4GHz ISM
Maximum Power: <20dbm (E.I.R.P) (EU)
RF Protocol: ANT
Distance: More than 1000m (Air distance without interference)
Resolution: 4096
Input Power: 1.5AA*4 or 2S Lipo(JST)
Charging Jack: None
Data Connector: USB Type-C, 3.5mm audio jack
Low Voltage Warning: AA battery <4.2v, lipo battery <7.2V
Antenna: Built-in double antennas
Display: 128*64 LCD (dot matrix screen)
Temperature Range: -10C ~ +60C
Humidity Range: 20% ~ 95%
Firmware Update: Supported
Colour: Black
Dimensions: 176 x 210.9 x 82.5mm
Weight: 420g
Certifications: CE, FCC ID: : N4ZST800
Product Model: FS-SR8
Compatible Transmitters: FS-ST8 (Adapts transmitter with ANT protocol)
Compatible RC Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, cars or boats
Number of PWM Channels: 8
Wireless Frequency: 2.4GHz ISM
RF Protocol: ANT
Resolution: 4096
Distance: More than 1000m (Air distance without interference)
Antenna: Two antennas
Operating Voltage: 3.5~9V DC
Data Output: PWM/PPM/i-BUS/S.BUS
Firmware Update: Supported
Temperature Range: -10C ~ +60C
Humidity Range: 20% ~ 95%
Weight: 10g
Dimensions: 44.8 x 26.6 x 11.3mm
Certifications: CE, FCC ID: 2A2UNSR800
- 1 x ST8 Upgraded Transmitter
- 1 x SR8 Receiver
- 1 x JR Bay Adapter
- 1 x Setback Throttle Pressure Plate
- 1 x Return-to-Centre Modification Parts
Key Info:
- Brand: FlySky
- Part No: FS-ST8+SR8-12CH
- Barcode: 5056135786277
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Stick
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
I bought this Transmitter to replace my Spektrum due to the difficulties in setting up the DX6. I find the Flysky so much easier to set up and adjust (Dinosaurs r us etc) for my non computerised mind. I would recommend it to anyone who, like me, has difficulty understanding all the settings and programming of a modern transmitter.
