FMS 1700mm PA-18 Super Cub With Floats + Reflex PNP
Brand: FMS
Part No: FMS110PF-REFV2
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description

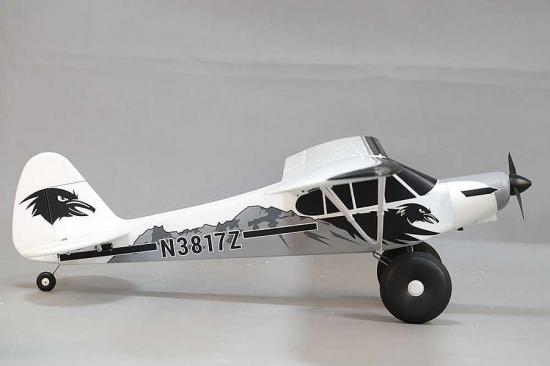

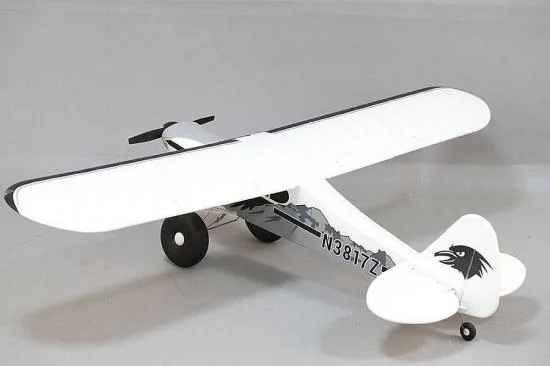

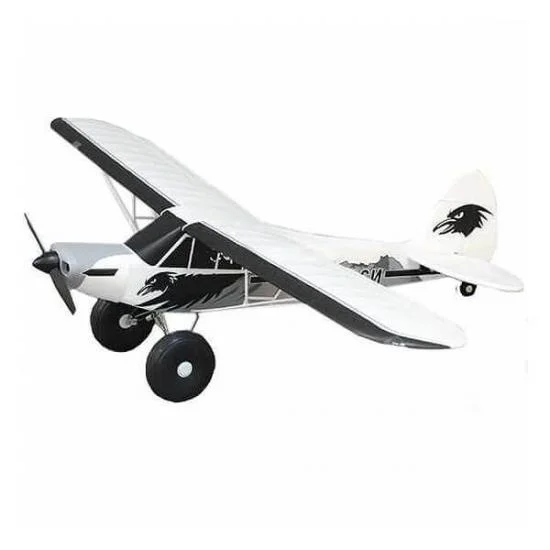

The FMS 1700mm PA-18 Super Cub PNP delivers classic bush-plane character with practical features for confident everyday flying. Supplied with both floats and wheels, plus the FMS Reflex system, this durable EPO model blends short take-off and landing capability with easy assembly. Part number FMS110PF-REFV2.
Scaling up from the popular 1400mm J-3 lineage, this PA-18 adds wingspan, power and control authority. Functional flaps, a high-lift airfoil, rugged CNC metal landing gear and 6.25-inch balloon tyres support STOL operations from a wide range of surfaces. Pre-installed ball-link pushrods and integrated wing connectors help speed the build, while the screw-together design requires no glue.
As a PNP (Plug-N-Play) package, servos, motor and ESC are factory-fitted. Add your own transmitter, receiver and a recommended 4S 2200–2600mAh LiPo (XT60) to fly. The large battery bay aids setup and balance, with a recommended CG at 80–85mm from the leading edge.
Key Features
- Powerful 3541-750KV outrunner motor with Predator 45A ESC.

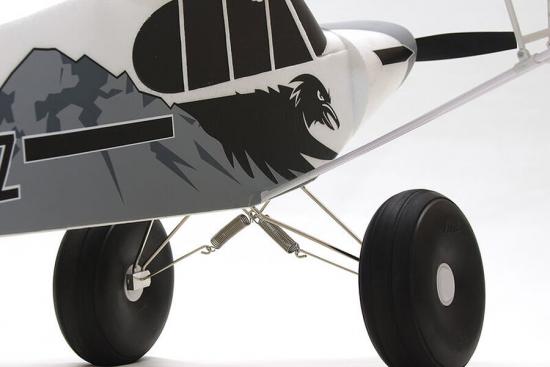

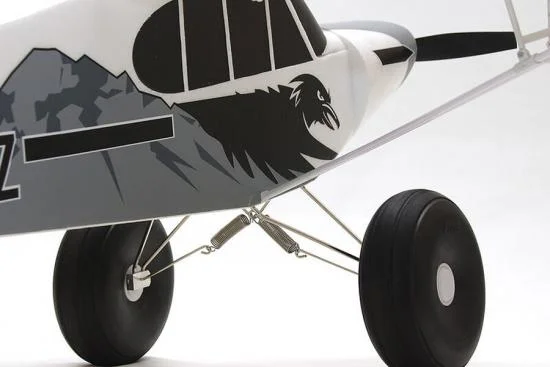

- CNC metal landing gear structure for less-than-perfect landings.

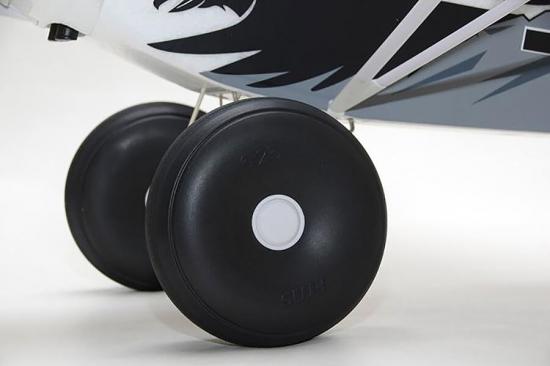

- 6.25-inch oversized balloon tyres for all-terrain operations.
- STOL capable (takes off in less than 3m/10ft).
- Pre-installed navigation and landing lights.
- Two-piece wing and horizontal stabiliser for easy transport.
- High-strength carbon fibre wing spars.
- Integrated servo connectors.
- Screw-together assembly.
- Large battery bay.
- Ball-linked pushrods for increased precision.
- Tough two-bladed nylon propeller.
- Functional flaps.
- Comes with floats and stainless-steel wing struts.
- Also includes wheels.
Specifications
- Wingspan: 1700mm (66.9in)
- Overall Length: 1136mm (44.7in)
- Flying Weight: 2100g
- Motor: 3541 KV750
- ESC: 45A
- Servos: 17g × 6
- Radio: 6 channel
- CG: 80–85mm from leading edge
- Propeller: 12 × 7.5, 2-blade
- Recommended Battery: 14.8V 2200–2600mAh 4S 35C
- Battery Connector: XT60
- Aileron/Elevator/Rudder/Flaps: Yes
- Retracts: No
- Approx. Flying Duration: 10–15 minutes
- Minimum Age: 14+
- Experience Level: Intermediate
- Recommended Environment: Outdoor
- Assembly Time: 15 minutes
- Assembly Required: Yes
- Material: Durable EPO
- Package: PNP
Required To Complete
- Transmitter
- Receiver
- Battery and charger
- AA batteries
Secured by Stripe
FMS 1700mm PA-18 Super Cub With Floats + Reflex System - PNP Manuals & Guides
Manuals & Guides
Specifications
The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
As a relative of the popular 1400mm J-3 Cub, the 1700mm PA-18 Super Cub retains great flight characteristics while offering increased power and wingspan.
Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized balloon tires- the 1700mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
Utilizing the latest FMS hardware and design, the 1700mm PA-18 Super Cub has pre-installed ball-link type pushrods, integrated servo connectors in the wing structure and can be assembled very easily using no glue at all.

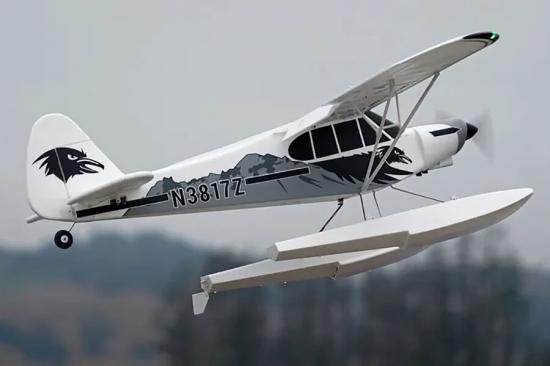

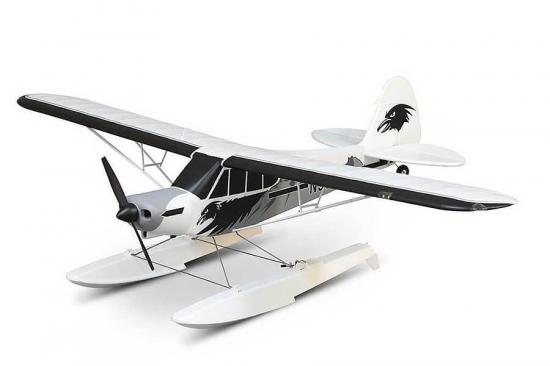

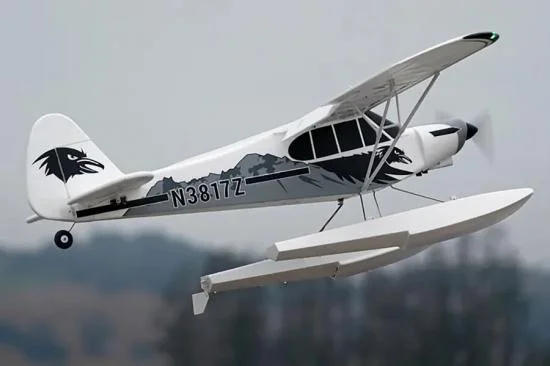

For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub comes with floats.
Versatile, fun and exceptionally relaxing to fly- the 1700mm PA-18 Super Cub is a great addition to any fleet!
Features- Powerful 3541- 750KV Outrunner motor with Predator 45A ESC provides adequate thrust for any situation.
- CNC metal landing gear structure for less-than-perfect landings.
- 6.25-inch oversized balloon tires for all-terrain operations.
- STOL capable (Takes off in less than 3m/10ft)
- Pre-installed navigation and landing lights

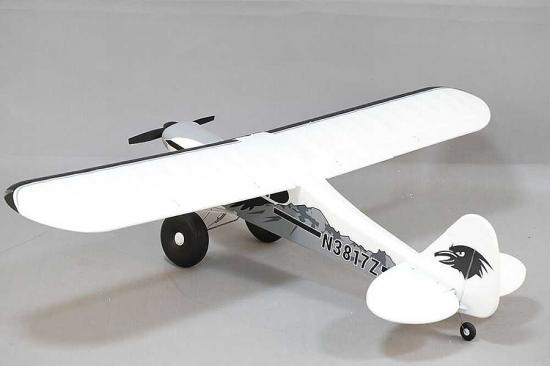

- Two-piece wing and horizontal stabilizer for easy transportation
- High-strength carbon fiber wing spars
- Integrated servo connectors
- Screw-together assembly
- Large battery bay
- Ball-linked pushrods for increased precision
- Tough two bladed Nylon propellers
- Functional flaps

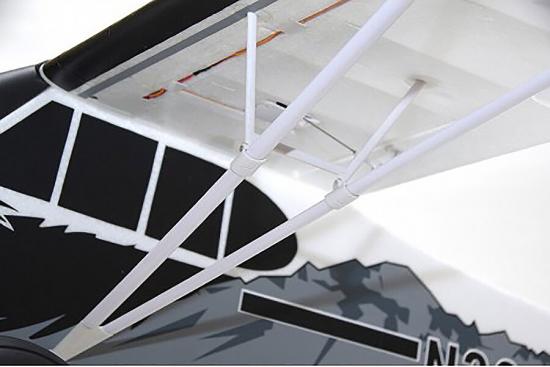

- Comes with floats and stainless-steel wing struts
- Also includes wheels
Wingspan: 1700MM/66.9in
Overall Length: 1136MM/44.7in
Flying Weight: 2100g
Motor Size: 3541-KV750
ESC: 45A
Servo: 17g*6
Radio: 6 Channel
CG (center of gravity): 80-85mm(From leading edge)
Prop Size: 12*7.5, 2-blade
Recommended Battery: 14.8V 2200-2600mAh 4s 35C
Battery Connector: XT-60
Aileron: Yes
Elevator: Yes
Rudder: Yes
Flaps: Yes
Retracts: No
Approx. Flying Duration: 10-15 minutes
Minimum Age Recommendation: 14+
Experience Level: Intermediate
Recommended Environment: Outdoor
Assembly Time: 15 minutes
Is Assembly Required: Yes
Material: Durable EPO
Package Options: PNP
- Transmitter
- Receiver
- Battery and Charger
- AA Batteries
For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org
For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org
Key Info:
- Brand: FMS
- Part No: FMS110PF-REFV2
- Barcode: 5056135754184
- Power: Electric
- Assembly Level: PNP (Plug n Play) / RR
- Flying Style:
• Sport
• Trainers
