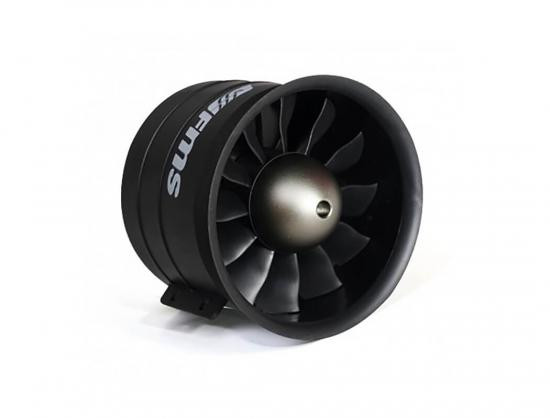

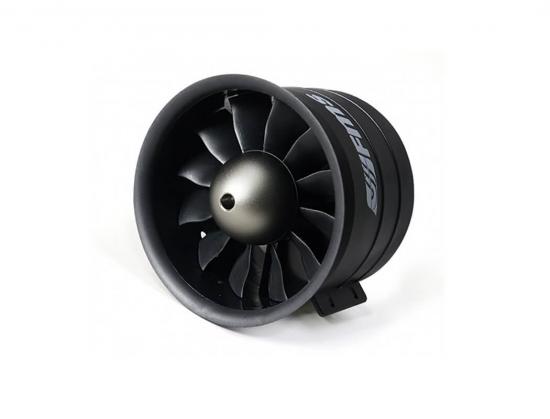

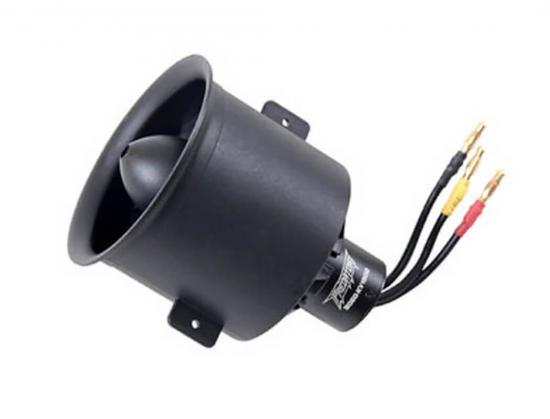

FMS 90mm Ducted Fan System 12-Blade W/3670-Kv1950 Motor

The FMS 90mm Ducted Fan System 12-Blade w/3670-Kv1950 Motor (FMSDF011) pairs a 90mm, 12-blade rotor with a factory-installed 3670 1950Kv inrunner. Designed for 6S (22.2V) operation, this integrated EDF power unit provides around 3,550g of static thrust at approximately 112A. Its nylon composite rotor with fibre construction helps keep weight to 340g within compact overall dimensions.

Key Specifications

• Rotor Blade Material: Nylon composite with fibre
• Outer Diameter: 93.8mm
• Length: 85.0mm
• Weight: 340g

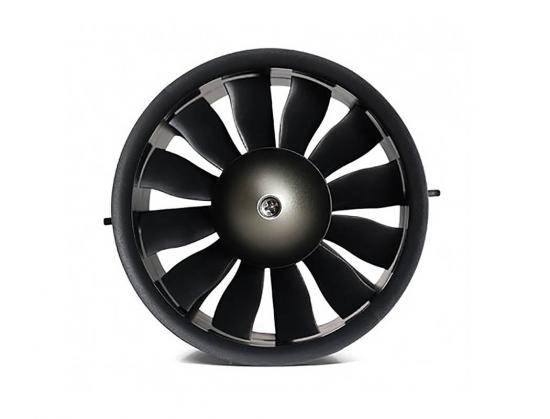

• Rotor: 90mm, 12 blade

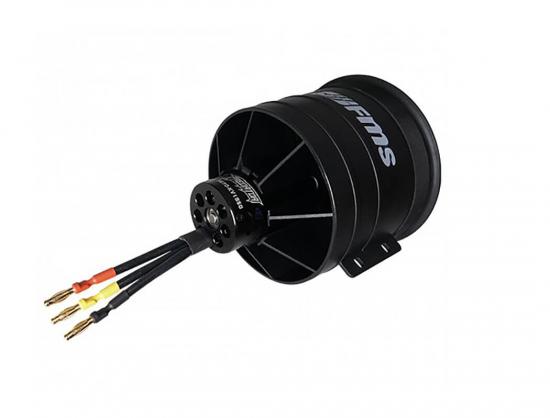

• Motor: 3670 1950Kv inrunner (installed)
• Working Voltage: 6S (22.2V)
• Static Thrust: Around 3,550g (112A)

This FMS EDF arrives as a matched fan-and-motor assembly for straightforward installation and consistent performance within its specified operating range.
