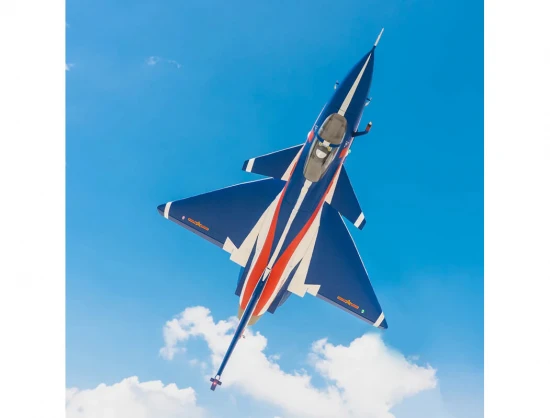

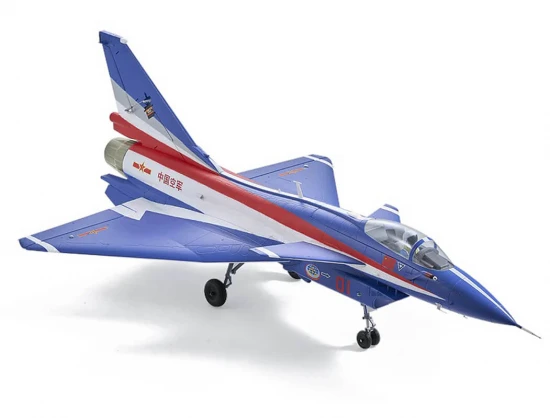

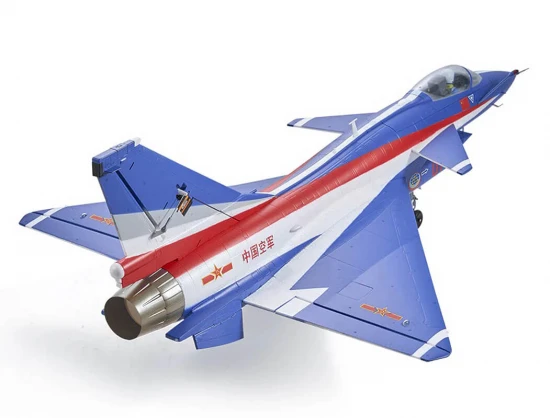

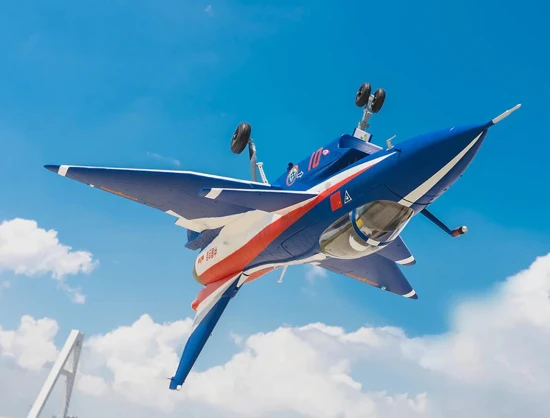

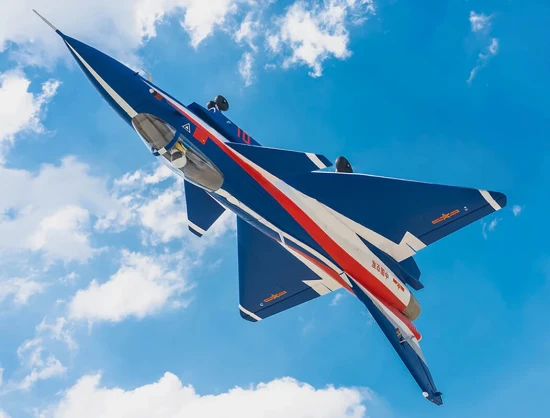

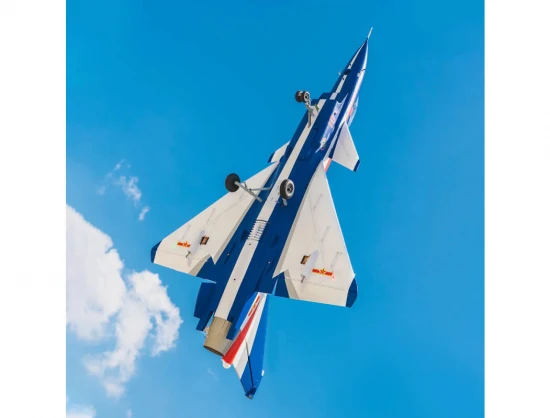

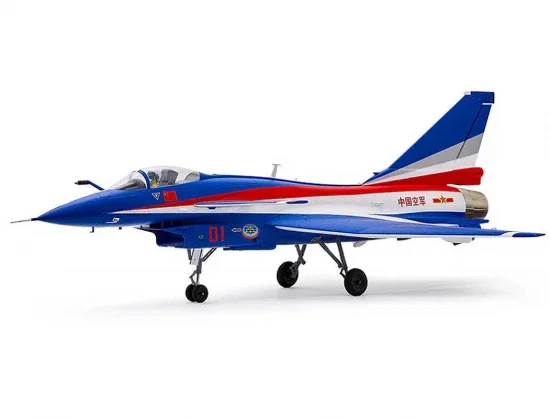

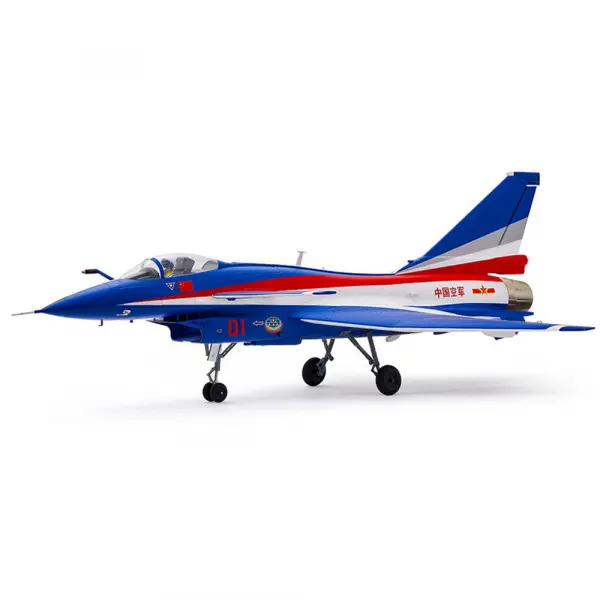

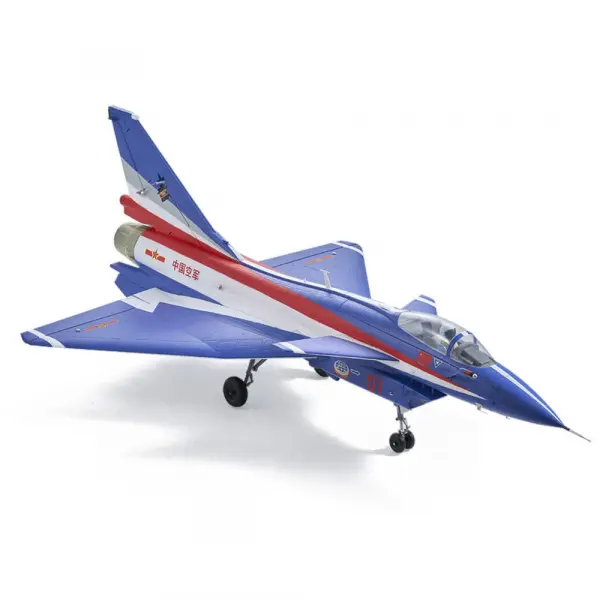

FMS J-10 64mm EDF With Reflex V3 - Blue

The J-10 fighter jet, nicknamed "Vigorous Dragon”, is a domestically developed high-performance, multi-role, all-weather third-generation fighter aircraft. It boasts high reliability, survivability, and maneuverability, with a large combat radius, short takeoff and landing distances, strong attack capabilities, and overall combat effectiveness reaching advanced international levels among similar fighter jets.

The J-10 EDF Jet features a unique delta wing and canard design for exceptional high-speed handling and also agile low-speed maneuverability. Using common 4S batteries, it is powered by a 64mm ducted fan with a brushless motor and a 40A ESC which helps to replicate the sound of a fighter jet. High-fidelity details include detachable weapon sets, an air refueling probe, navigation lights, and CNC-machined landing gear. Made from EPO 40 foam, it offers impact resistance and a water-resistant paint finish. The J-10 EDF jet is easy to assemble. Experienced modelers can complete assembly in about thirty minutes. Optional paint schemes are also available.

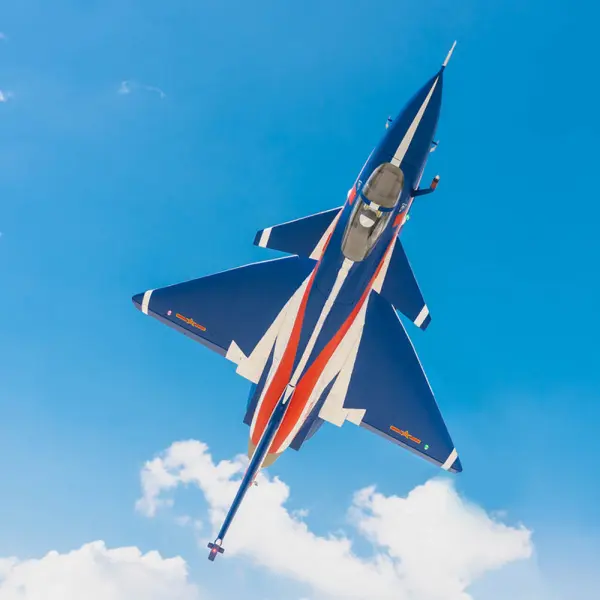

• The unique layout of a delta wing with canards provides the aircraft with excellent climb rates and climbing altitudes, allowing for easy execution of low-speed high-angle maneuvers. Additionally, the delta wing, canards, and vertical tail are all reinforced with embedded strengthening ribs, effectively increasing the structural integrity of the aircraft and facilitating high-speed flight.

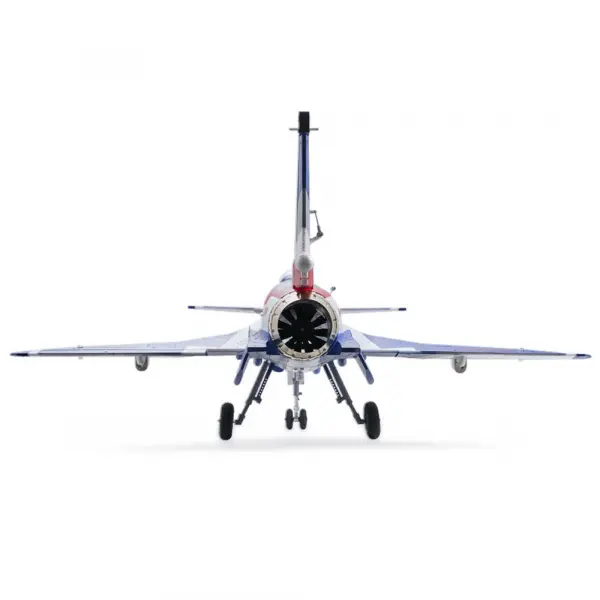

• Equipped with a 64mm 11-blade ducted fan with a 2840 KV3150 brushless motor and a high-performance 40A ESC, it is paired with commonly available 4S 2200mAh-2600mAh 25c batteries, effortlessly reproducing the thrilling sound of a fighter jet.
• High-fidelity details include but are not limited to air refueling probe, cockpit interior, pilot figure, and five high-intensity navigation lights.
• CNC-machined metal front landing gear with built-in CNC metal shock absorption, externally using realistic plastic parts.
• EPO 40 foam material with high-impact absorption and rigidity.
• Simulation water-based paint finish, with a full and tough paint film that is water-resistant, heat-resistant, and has a pleasing gloss finish.
• Features a simple-assembly structure, experienced players can complete all assembly and pre-flight testing in just thirty minutes.
• Optional paint schemes include the “August 1st” Aerobatic Team paint and the Air Force gray paint.

Flying Weight: Around  1100g
Wing Load: 54g/dm²   ( 0.11oz/in²)
Wing Area: 18.5dm²    (286.5 sq.in)
Wingspan: 690mm /27.2 in
Overall Length: 1110mm /43.7 in
Motor Size: 2840KV3150
ESC: 40A
Servo: 9gX4pcs
Radio: 6CH Channel
CG (center of gravity): 80-90mm
Prop Size: 64mm 12blades
Aileron: Yes
Rudder: Yes
Flaps: No
Retracts: No
Approx. Flying Duration: 3 minutes
Minimum Age Recommendation: 14+
Experience Level: Intermediate level
Assembly Time: 10minutes

• 64mm J-10 EDF PNP
• 40A ESC with Reverse Thrust Function (installed)
• 2840 KV3150 brushless motor (installed)
• 64mm 11-blade ducted fan (installed)
• 4x 9g Digital Servo (installed)
• Product Manual

• 6 Channel Transmitter and Receiver
• 14.8V 2200-2600mAh 25c Li-Po battery with XT60 connector
• LiPo Battery Charger

• Brand: FMS
• Part No: FMS149PBU-REFV3
• Barcode: 784085211413
• Flying Style:
  • EDF Jets
  • Sport
• Power: Electric
• Assembly Level: PNP (Plug n Play) / RR
