FTX Kanyon Crawler
Brand: FTX
Part No: FTX5563
In Stock: Usually ships same day
Looking for a step up from the basic package? Why not take a larger capacity battery coupled with a fast charger.
ET0208
SCH-EP3000S
Saves £26.57 over RRP
Want longer run time and a super quick charge - look no further than this combo package, supplied with TWO of our best batteries and a fast charger!
VZ0025
ET0208
Saves £33.59 over RRP

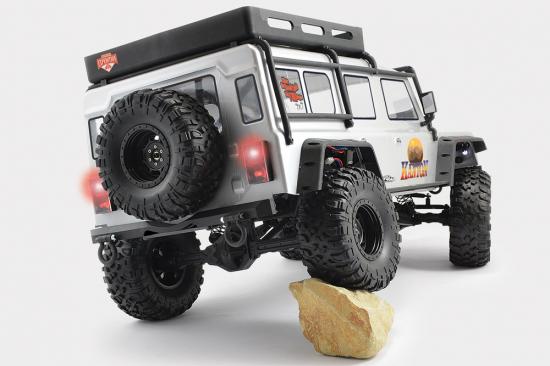

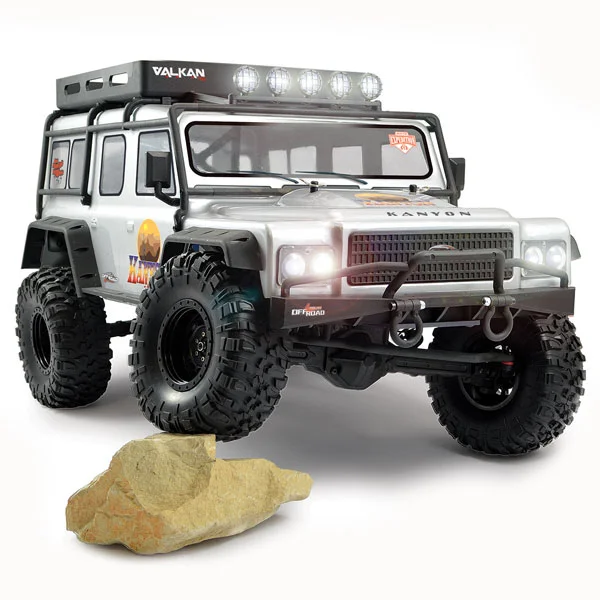

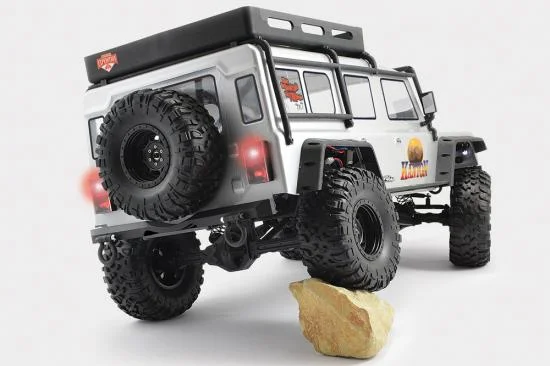

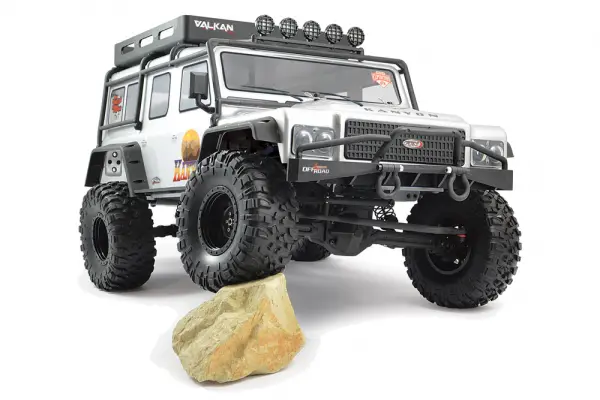

Upsize your trail adventures with the FTX Kanyon Crawler (FTX5563). This XL 1/10 RTR trail truck blends semi-scale looks with a robust drivetrain and supple multi-link suspension for confident progress over varied terrain. Ideal for first-time modellers seeking outdoor fun, the Kanyon arrives 99% ready-to-run with radio, electronics, battery and charger included.
With over 10% more size than many trail rigs, the Kanyon offers excellent ground presence and articulation. A high-torque 60T brushed motor, waterproof electronics and a 9kg steering servo deliver precise control, while factory-fitted LED lighting keeps the trail visible after dark.
Wheel And Tyres

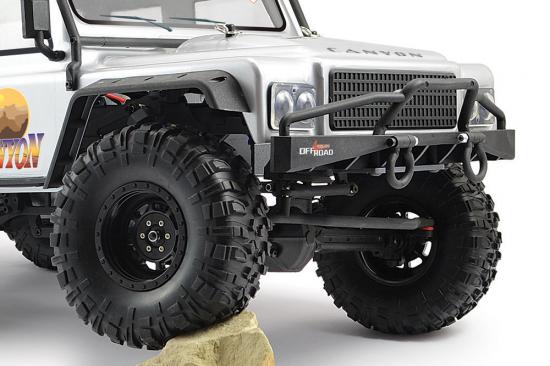

Supersoft block-pattern tyres on scale-style wheels provide dependable grip and a realistic finish, helping the Kanyon claw through loose, rocky and wet ground.
Body

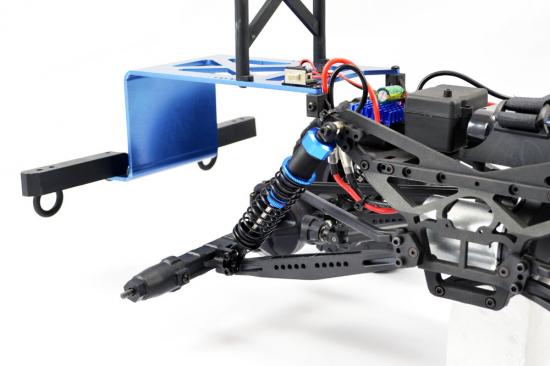

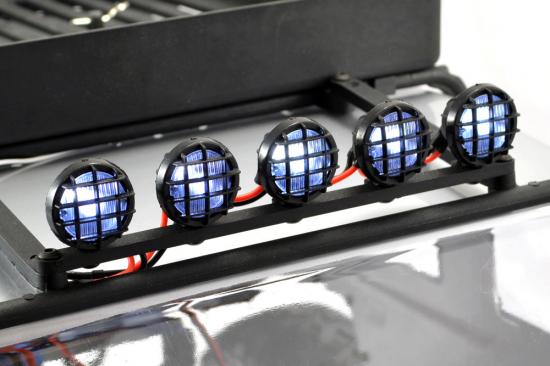

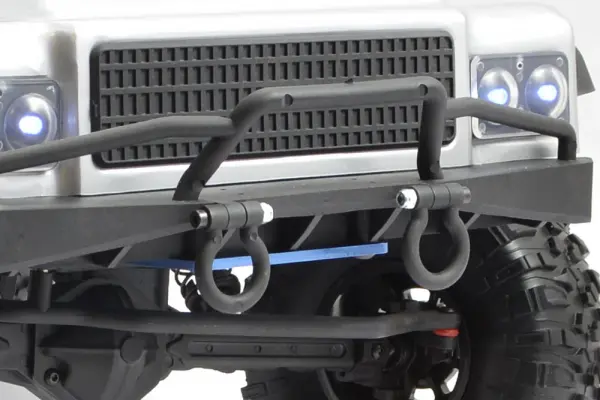

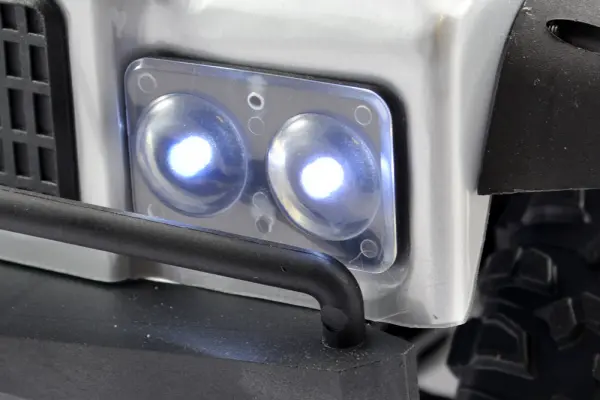

The semi-scale bodyshell is packed with moulded detail including wheel arches, roof rack, luggage tray, roll cage, grille and light bars. Aluminium front and rear bumpers and body mounts offer versatile positioning options. A total of 13 factory-fitted LEDs enhance visibility and scale presence.
Transmission And Motor

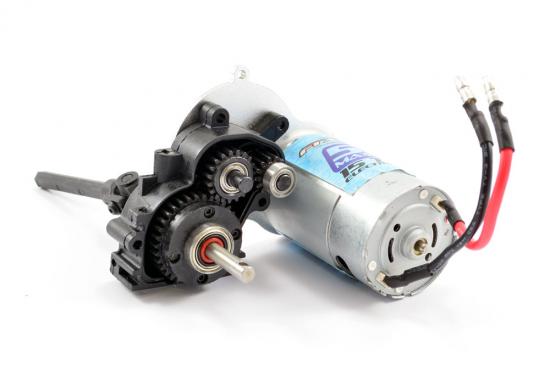

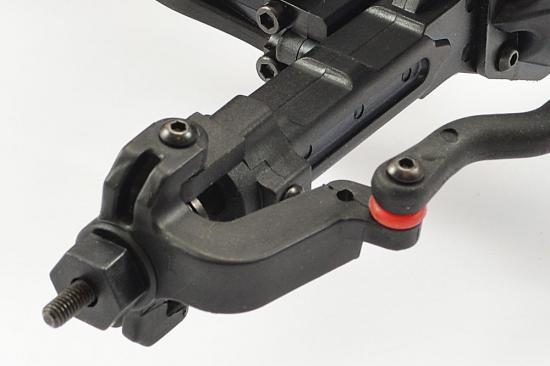

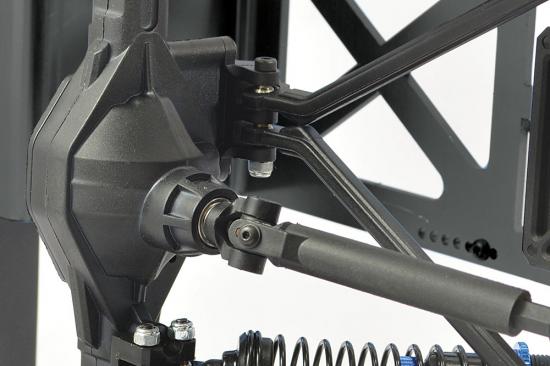

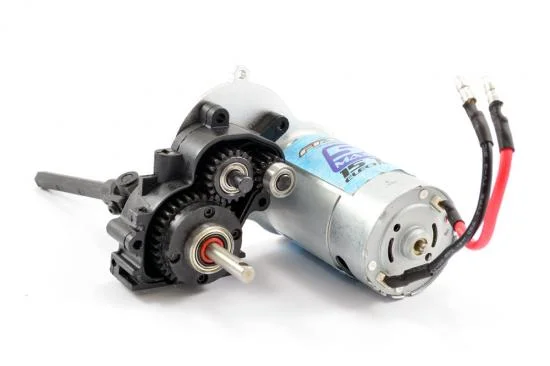

The 60T high-torque brushed motor drives a compact 3-gear transmission with metal output, crown and diff gears for reliability. Front universal CVA driveshafts, telescopic centre shafts and high-clearance locked axles keep power delivering to the ground.
Suspension And Steering

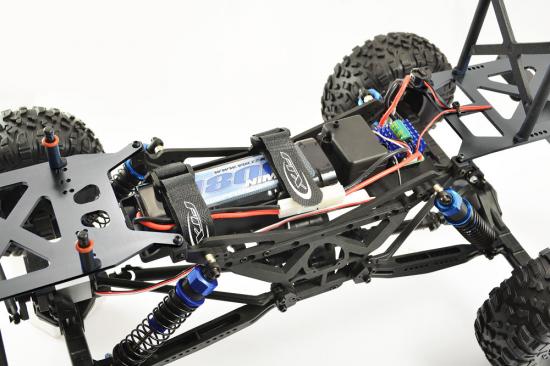

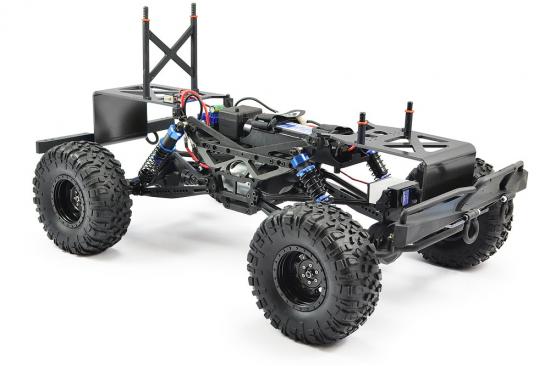

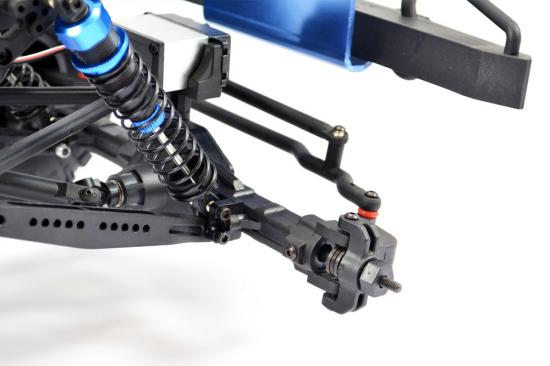

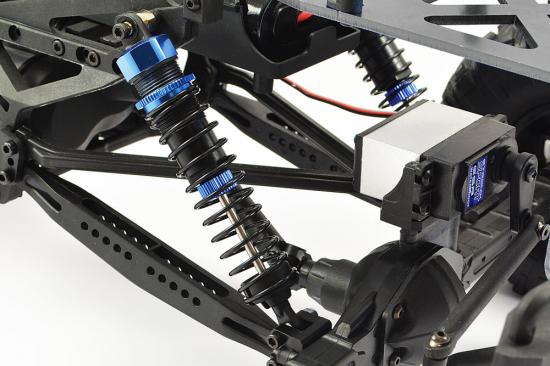

Oil-filled, threaded shocks and multi-link suspension deliver impressive axle articulation. Steering is handled by an Etronix 9kg waterproof servo to tackle tight technical sections with confidence.
Features
- 99% Ready-To-Run
- Etronix EX2 Sport 2.4GHz radio
- Etronix 9kg waterproof steering servo
- Waterproof brushed crawler ESC
- 60T high-torque brushed motor

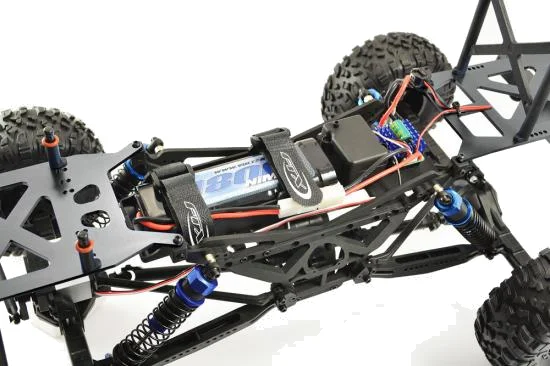

- Voltz 1800mAh 7.2V NiMH battery
- Wall charger
- Sealed receiver box
- Front and rear straight locked axles
- Link suspension for maximum articulation
- Telescopic sliding centre driveshafts
- Front CVA universal steering driveshafts
- Compact centre 3-gear transmission
- Front, centre and rear diff lockers
- Metal output, crown and diff gears
- Oil-filled adjustable shock absorbers
- Aluminium front/rear bumpers and body mounts
- Scale-inspired trail bodyshell
- Moulded fenders, roof rack and light bar
- Moulded bumpers with tow hooks
- Scale wheels with supersoft block-pattern tyres
- 13 factory-fitted LED lights
Specifications
- Length: 560mm
- Width: 305mm
- Height: 287mm
- Wheelbase: 340mm
Required To Complete
- 8 x AA batteries
Secured by Stripe
FTX KANYON 4X4 RTR 1:10 XL TRAIL CRAWLER
Upsize your trail experience with the Kanyon from FTX. This XL sized 1:10 scale vehicle is perfect for tackling any adventure you throw at it over varied terrain. Multi-link suspension featuring adjustable oil filled shock absorbers, provide excellent articulation to help you manage the rough stuff.
The FTX Kanyon is the perfect choice for first time modeller’s simply after some outdoor fun!
Wheel and Tyres
Supersoft aggressive lug pattern tyres are mounted to scale style wheels for a realistic finish. With a blend of semi-scale looks, reliable chassis platform and over 10% bigger size than most trail crawlers.
Body
The Kanyon’s off road inspired semi-scale bodyshell features a number of additional moulded accessories such as wheel arches, luggage tray, roll cage, front grill and head, tail, spotlights. The aluminium front and rear bumper and body mounts provide a wide selection of optional positioning for possible aftermarket options and to wrap things up 13 factory installed LED lamps provide the necessary illumination for you to keep your rig on the trail long after the sun goes down.
Transmission and Motor
The high torque 60T brushed motor drives a rugged, all metal output pinion, crown and transmission gears for extra reliability. Front universal CVA driveshafts and centre telescopic sliding shafts keep the power connected to all wheels through high clearance front and rear locked axles.
Shock Absorbers
Oil filled, threaded body shocks handle each corner and the huge axle articulation.
Servo
Due to the demands of crawling, FTX have chosen to include an Etronix 9kg steering servo to help navigate your Kanyon through the roughest of terrains.
If you want something that is quick, fun and can be taken and used just about anywhere then you need an FTX Kanyon.
FTX Kanyon XL 1/10th RTR Trail Vehicle Features:
- 99% Ready-To-Run
- Etronix EX2 Sport 2.4ghz radio
- Etronix 9Kg waterproof servo
- Waterproof brushed crawler ESC
- 60T High torque brushed motor
- Voltz 1800mAh NiMH 7.2v Battery
- Wall charger
- Receiver box
- Front and rear straight locked axles
- Link suspension for maximum articulation
- Telescopic sliding centre driveshafts
- Front CVA steering universal driveshafts
- Centre compact 3-gear transmission
- Front, centre & rear diff lockers
- Metal output, crown and diff gears
- Oil filled adjustable shock absorbers
- Alum. front/rear bumper & body mounts
- Scale inspired trail style bodyshell
- Moulded fenders, roof rack & light bar
- Moulded bumpers with tow hooks#
- Scale styled wheels with super soft block pattern tyres
- 13 Factory fitted LED lights
Spec Check:
- Length: 560mm
- Width: 305 mm
- Height: 287mm
- Wheelbase: 340mm
Please Note: This kit is sold in RTR format but requires the 8 x AA batteries for completion.
Key Info:
- Brand: FTX
- Part No: FTX5563
- Barcode: 5056135713921
- Scale: 1:10
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushed
- Surface Type: Off Road
- Vehicle Type: Rock Crawler
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
You get what you pay for - and sometimes a bit more. Don't expect the Kanyon to rival a TRX4's chassis ability, and don't expect a Hobao DC1's quality presentation, but this does a great job for it's price. Wide wheelbase and low centre of gravity has meant on several Dartmoor tracks this has performed far better than expected. Good rig, but do brace that floppy rear panel.
Absolutely amazing model. My 9 year old son bought this with his gift morning money and has driven it everyday. I want one. He very rarely lets me have a go!!! A battery upgrade is a must is it very Hungary but puts the power to very good use. I'm saving to get my own!

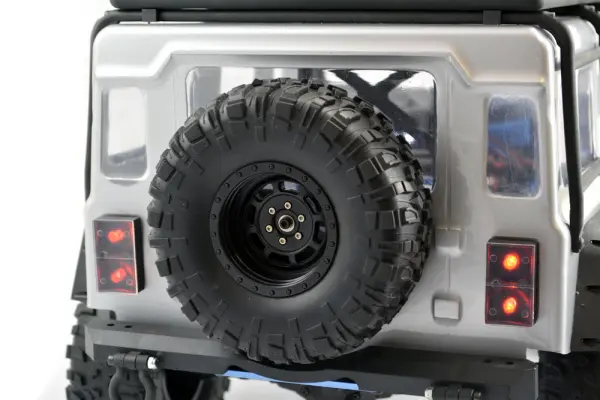

We did some homework on this model after my son showed real interest in it. We did the rail mod to support the body mounts, the gaffa tape inside the body and the sponge support inside the rear for the back door and spare tyre. The battery is a bit of a weak point but the model is unbelievably capable and deals with pretty much anything you can throw at it!! Excellent entry level model. We love it.
What a fantastic piece of kit, the ftx Kanyon Crawler, really is. If your thinking of getting a big crawler you won't go far wrong with the ftx anytime at all.
Very good model, my first crawler. Excellent service and communication from Wheelspin when I thought they hadn't sent the battery, was still in the box.
Bought this for my daughter who’s very happy with it thanks and fast shipping !!!!
Fantastic service, fast postage, excellently packaged, good price, very clear website will definitely buy from you again
Absolutely fantastic product and service, really appreciated. Will shop again
Can you replace/upgrade most of the parts on this car ? Just wondering in case anything gets broken and needs replacing or in the future i might want to upgrade a part .
A lot of bang for your buck with this crawler. As an entry level crawler it is great value and with loads of upgrading/aftermarket parts options, and plenty of videos online on how to strengthen the chassis/shell and other upgrades, you can steadily improve it further over time to be a fantastic rig. Buy it, you won't regret it.
WRITE A REVIEW
Questions & Answers
They are 2s or 7.2 nimh only and the electrics are waterproof.
Yes all you need to complete is a pack of AA batteries.
Yes, these take normal stick packs like you'd run with a carnage brushed
Yes if it's a standard size stick pack that should work fine
Sorry I don't understand?
No, 2s is recommended max
Not sure I understand the question, they are their own FTX chassis.
The body is somewhat land rover inspired I guess?
No these come with a 2 channel radio
Yes, just add to your basket and choose PayPal at checkout.
They quote it as waterproof - although that's not a gaurantee as to any particular "level" of waterproofing. Please bear in mind any level of waterproofing will have it's limits...!
This is between 8 - 10 mph due to it being a rock crawler
Yes
They are 2.2 rock crawler tyres
These use Tamiya style connectors.
Yes you could run a 2S LiPo if you wish
Yes, but you will need to enable LiPo mode on the ESC. Instructions are in the manual
