Futaba 12K with R3008SB Receiver (Mode 2)

Your T12K includes the following components:

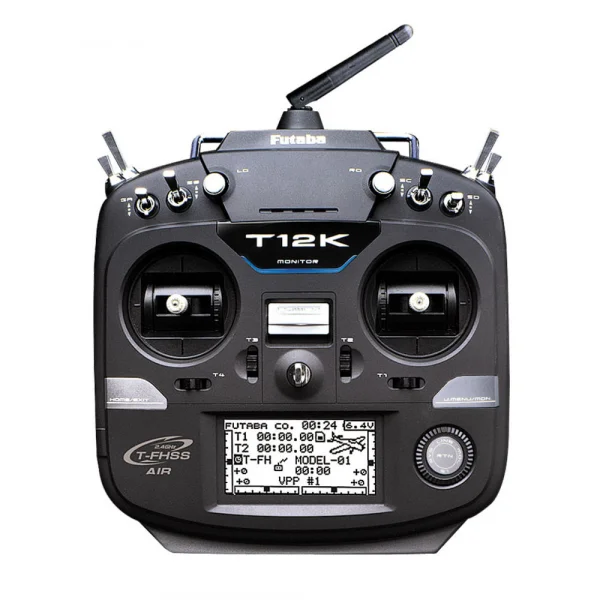

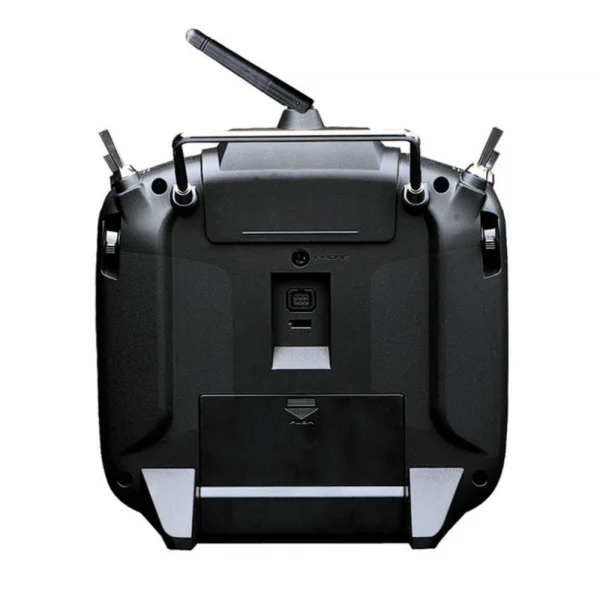

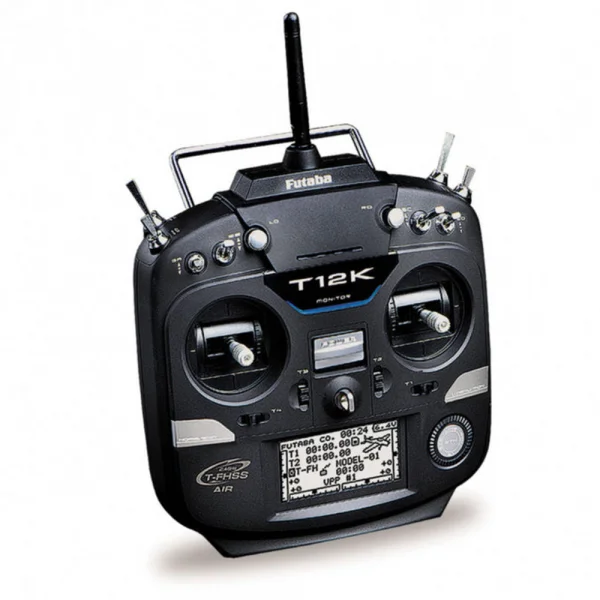

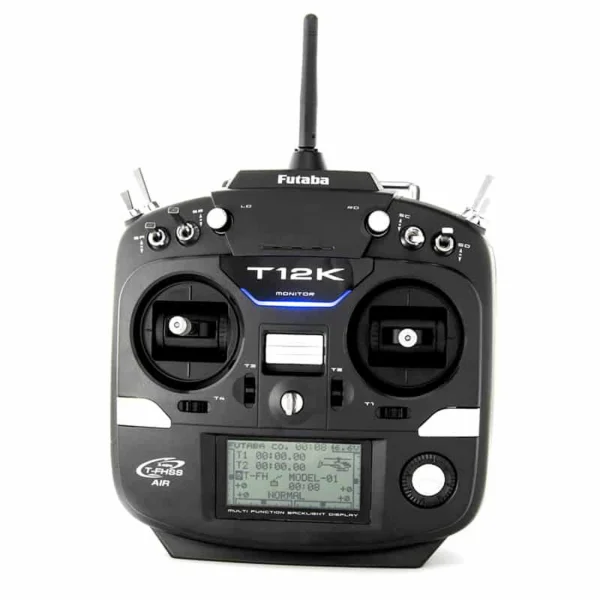

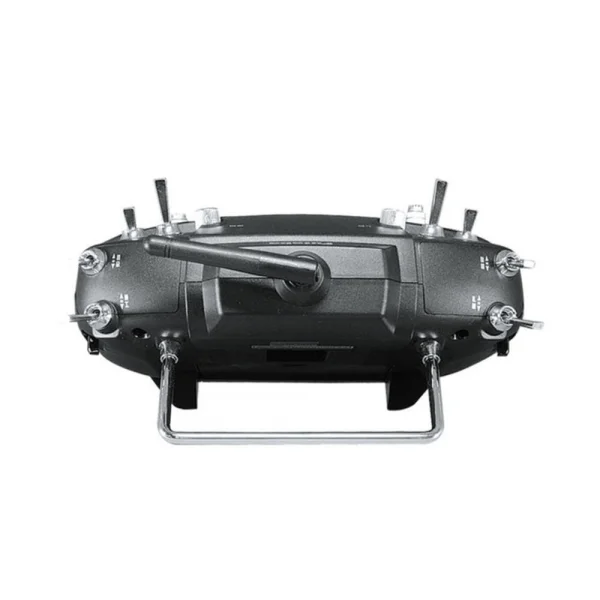

• T12K Transmitter
• Air Version includes ratcheting throttle
• Helicopter/FPV Versions includes ratcheting throttle
• R3008SB OR R3001SB Receiver

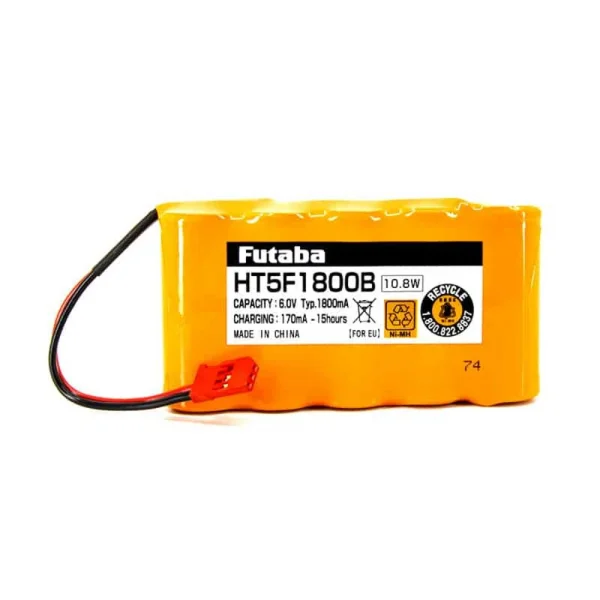

• HT5F1800B NiMH Battery and Charger

Transmitter Frequency:
2.4 GHz band

System:
T-FHSS Air, S-FHSS, switchable

Power Supply:
6.0 V HT5F1800B NiMH battery

Frequency Band:
2.4 Ghz

RF Power Output:
100mW EIRP

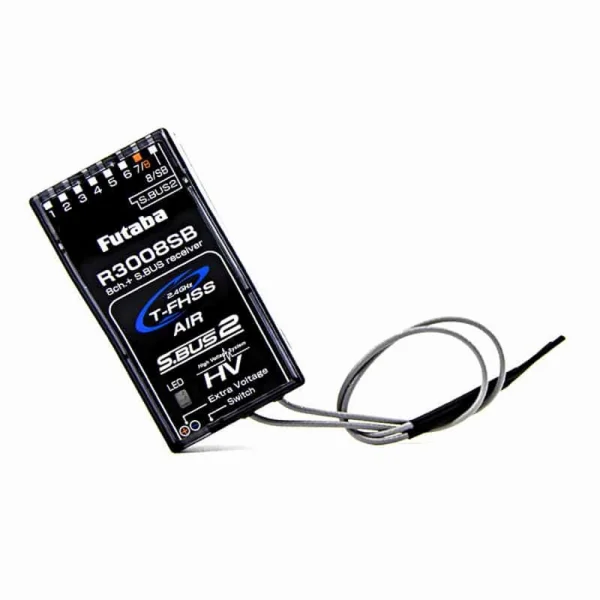

R3008SB

• Size:
  24.9 x 47.3 x 14.3 mm
  0.98 x 1.86 x 0.56
• Weight:
  10.1 g
  0.36 oz.
• Rated Voltage:
  DC 4.8 ~ 7.4V
• Operating Voltage:
  DC 4.0 ~ 8.4V

R3001SB

• Size:
  21.1 x 41.8 x 5.3 mm
  0.83 x 1.65 x 0.21 in
• Weight:
  4.2 g
  0.15 oz.
• Power Requirements:
  DC 4.8 ~ 7.4V
• Battery F/S Voltage:
  Sets up with a transmitter

Futaba 12K with R3008SB Receiver (Mode 2) Key Features:

• T-FHSS Air System
  The 12K transmitter has adopted the bidirectional communication system "T-FHSS Air". Data from the receiver can be checked in your transmitter. T-FHSS Air is a maximum 14 channels (linear 12 channels + switch 2 channels) 2.4 GHz dedicated system.
• S.BUS2 System
  By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
• Model Types
  Six swash types are available for helicopters. Six types of main wings and three types of tail wings are available for airplanes, multicopters and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
• Data Input
  The 12K is operated by a 6.0 V/1,800 mAh NiMH battery.
• Micro SD Card (Secure Digital Memory Card) *NOT INCLUDED
  Model data can be saved to a micro SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T12K transmitter software files are released, the software can be updated by using a micro SD card update.
• Edit Button
  Two edit buttons are provided, and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a push dial.
• Vibration Function
  Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

Manuals & Parts Explosions:

Futaba 12K with R3008SB Receiver (Mode 2) Tech Specs:

• Shipping Weight: 2.10kg / 4.63lbs

• Age Recommendation: 14+
• Channels: 14
• Radio Protocol: T-FHSS [Air], S-FHSS [Air]
• Colour: Black

• Brand: Futaba
• Part No: FUT05003123-3
• Barcode: 4513886030598
• Receivers Included: 1
• Frequency: 2.4Ghz
• Channels: 9+ Channel
• Format: Stick
