Futaba 3PR 2.4Ghz Radio With R203GF Receiver

Futaba 3PR 2.4Ghz Radio With R203GF Receiver

Brand: Futaba

Part No: FUT05003049-3

£80.99 RRP £89.99

In Stock: Usually ships same day

Collect Instore
Request Price Match Ask a Question Write a Review

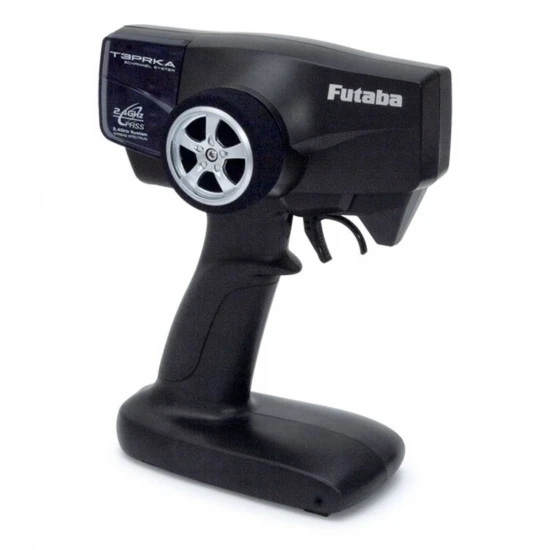

The Futaba 3PR 2.4GHz wheel-type transmitter paired with the R203GF receiver delivers dependable FHSS control for surface RC use. This 3-channel system provides straightforward setup with trims, dual rates and servo reversing, alongside core safety functions. Supplied under part number FUT05003049-3.

Operating on the 2.4GHz band with a one-way communication method, the 3PR offers an optimum operating range of up to 80m and runs on four AA batteries. The included R203GF receiver is compact and lightweight, with a wide operating voltage range to suit typical surface electronics.

Key Features

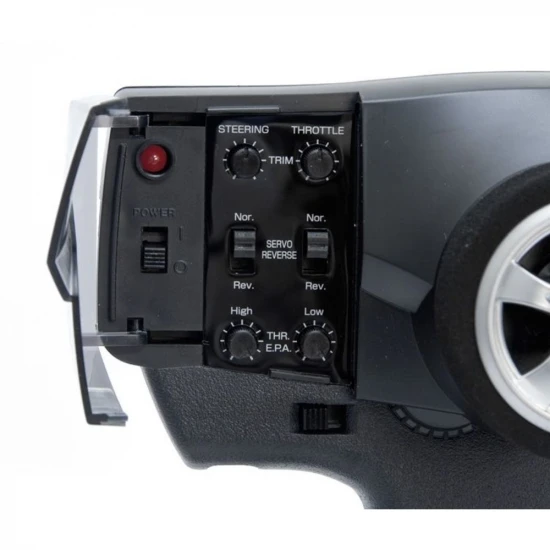

  • Steering Trim: Adjust steering neutral by moving the steering trim knob left or right.
  • Throttle Trim: Adjust throttle neutral by moving the throttle trim left or right.
  • Steering Dual Rates: Set steering travel to suit model and surface.
  • Steering Servo Reversing: Reverse the steering servo rotation direction.
  • Throttle Servo Reversing: Reverse the throttle servo rotation direction.
  • Throttle End Point Adjustment (EPA): Independently adjust forward and brake servo travel to fine-tune throttle response.
  • CH3 Function: An additional channel for two-position servo operation. Note: CH3 does not support EPA and does not operate linearly.

Transmitter Specifications

  • System: FHSS, wheel type, 3 channels
  • Communication Method: One-way operating system
  • Maximum Operating Range: 80m (optimum condition)
  • Safety: F/S, ID
  • Frequency: 2.4GHz band
  • Power Requirement: 4x AA (6V)
  • Current Drain: 100mA or less
  • Transmission Antenna: 1/2 wavelength dipole

Receiver Specifications

  • Model: R203GF
  • Size: 39 x 26 x 10mm (1.54 x 1.02 x 0.39in)
  • Weight: 8g (0.28oz)
  • Operating Voltage: DC 4.8–7.4V

Additional Tech Specs

  • Shipping Weight: 0.58kg (1.27lbs)
  • Age Recommendation: 14+
  • Channels: 3
  • Radio Protocol: S-FHSS [Surface], FHSS
  • Colour: Black
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Transmitter Specs

FHSS System, Wheel Type, 3 Channels

Communication Method:
One-way operating system

Maximum Operating Range:
80m (Optimum condition)

For Safety:
F/S, ID

Transmitter Frequency:
2.4 GHz band

Power Requirement:
(Dry Cell Battery) Penlight x 4 (6V)

Current Drain:
100 mA or less

Transmission Antenna:
1/2λ di-pole

Receiver Specs

R203GF

Size:
39 x 26 x 10 mm
1.54 x 1.02 x 0.39 in

Weight:
8 g
0.28 oz

Operating Voltage:
DC 4.8 - 7.4V

Futaba 3PR 2.4Ghz Radio With R203GF Receiver Key Features:

  • Steering Trim:
    Steering neutral adjustments can be made by moving the steering trim knob to the left or right.
  • Throttle Trim:
    Throttle neutral adjustents can be made by moving the throttle trim to the left or right.
  • Steering Dual Rates:
    Use this function to adjust the steering travel of your model.
  • Steering Servo Reversing:
    This function reverses the rotation direction of the steering servo.
  • Throttle Servo Reversing:
    This function reverses the rotation direction of the throttle servo.
  • Throttle End Point Adjustment (EPA):
    This function is used to adjust the forward and brake side servo travel. Each direction can be adjusted independent of each other. Use this feature to set the throttle servo travel.
  • CH3 Function:
    One other channel can be used besides the steering wheel and the throttle operation. Right and left operation of two actions can be done by using the servo. CH3 cannot operate EPA function and servo function linearly.

Futaba 3PR 2.4Ghz Radio With R203GF Receiver Tech Specs:

  • Shipping Weight: 0.58kg / 1.27lbs
  • Age Recommendation: 14+
  • Channels: 3
  • Radio Protocol: S-FHSS [Surface], FHSS
  • Colour: Black


    Key Info:
    • Brand: Futaba
    • Part No: FUT05003049-3
    • Barcode: 4513886022647
    • Receivers Included: 1
    • Frequency: 2.4Ghz
    • Channels: 3 Channel
    • Format: Steerwheel
    Standard Shipping

    £3.95 to most of the UK

    Express Shipping

    £6.95 to most of the UK

    Worldwide Shipping

    Available at checkout

    Reviews
    No specific product reviews yet, why not write one?
    WRITE A REVIEW
    All reviews are subject to moderation
    Questions & Answers
    Real questions from real customers. Why not ask your own?
    Does the futaba 3pr have a waterproof receiver. Cheers. Alan
    Alan Melham / 9th April 2021

    No, the R203GF is not waterproof

    Ben @ Wheelspin Models
    This 3 channel futaba steer wheel set , what is the third channel function on the transmitter please ? Presumably would work with a futaba 2 channel receiver ?
    Christian Humphreys / 10th February 2021

    Third channel is for whatever you wish - lights, winch, etc. Yes - you could bind to a 2 channel compatible receiver

    Ben @ Wheelspin Models
    Can I use the futaba 3pr 2.4ghz radio system and use Acom techiplus servos on a Tamiya Super Clobuster and a Tamiya Juggernaut 2 and connect it to a Hobbywing Quickrun 860 Duel Motor Electronic Speed Controller.
    Peter Livesey / 10th April 2018

    Yes, this will work with pretty much any servo or ESC.

    Ben @ Wheelspin Models
