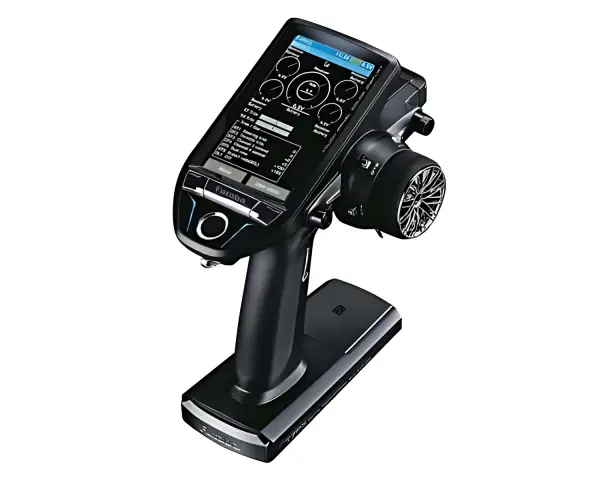

Futaba 7PX With R334SBS Receiver
Brand: Futaba RP
Part No: P-CB7PX
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #P-CB7PXRN AS A REPLACEMENT

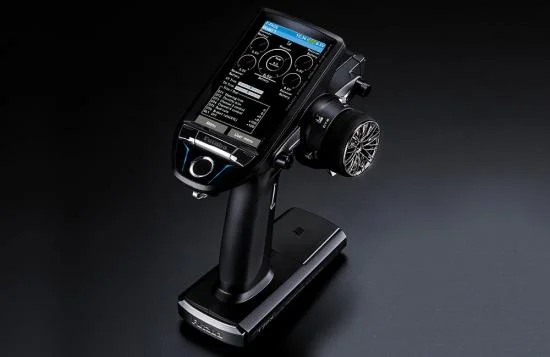

Futaba have pushed the boundaries of surface transmitters once again with the stunning 7PX. A premium radio for demanding users that is dedicated to land and water based RC modelling.

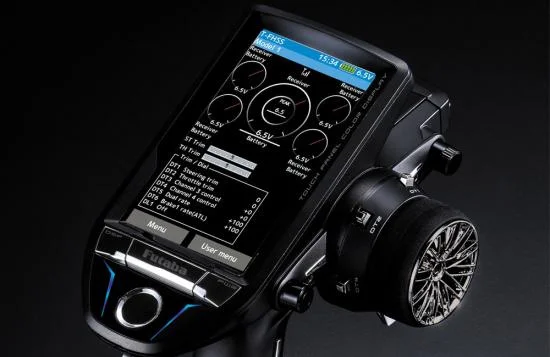

The case is moulded with a stunning deep satin black finish accented by chrome wheel and buttons. There are six push buttons, one 2-Position switch and 6 digital trims all of which are assignable to numerous different functions or any one of the 6 fully linear channels. The huge 4.3" colour touch screen is easy to use and responds fast to the touch. There is also a jog dial if you prefer to navigate that way.
Using a new system called 'SR' this is Futaba's the fastest responding radio so far with a frame rate of 2.45 milliseconds! This new system brings in a locked in feel and response that racers and performance drivers will truly appreciate. The T7PX is also compatible with Futaba T-FHSS, S-FHSS and FASST so you can select your preferred transmission system for each car to suit your requirements and budget. With T-FHSS telemetry the data can be displayed on the screen or relayed by a synthesized voice using the in-built speakers or headphones (not included).
The T7PX has the ability to update its software using SD card but it also have NFC (Near Field Communication) which means you can update the radio from an android phone just by opening an APP and placing it next to it! Just another way that Futaba is at the forefront of technology to make your hobby easier.
• Up to 7 channel control
• Futaba SR (Super Response) technology (2.40ms)
• Capable of Futaba SR/T-FHSS/S-FHSS/FASST systems
• Telemetry capable using T-FHSS
• 40 model memory (+ SD Card)
• 15 model names
• Easy software updates using SD card or NFC from an android phone

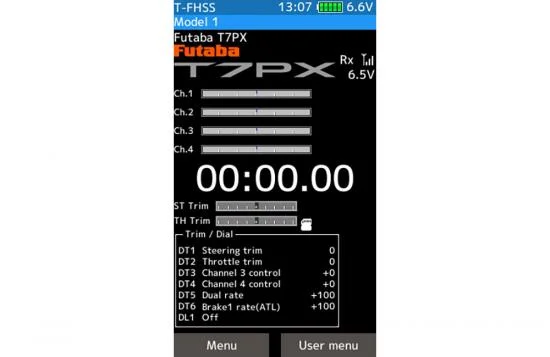

• 4.3" colour touch-screen LCD display
• Built-in speaker
• Audio earphone jack

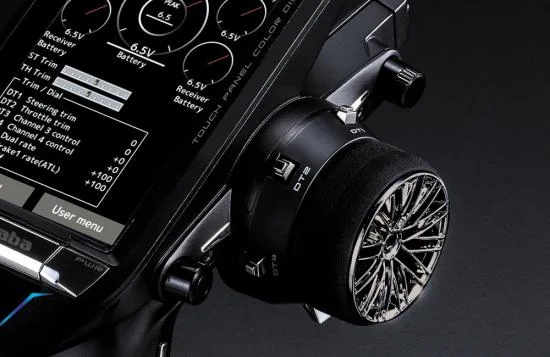

• Adjustable steering wheel
• 24 positions of steering wheel angle
• Adjustable throttle trigger
• 4 trigger sizes
• 7mm trigger adjustment
• 6 assignable digital trims
• 1 Rotary Dial
• 5 push switches
• 2-position switch
• Dual rates
• Exponential
• Adjustable speed
• End point adjustment
• Servo reversing
• Sub-trim adjustment
• Low battery alarm
• Lap timer
• Auto power-off
• ABS braking
• 5 channel mixes
• Left hand handle included
• 4WS mixing
• Brake mixing
• Gyro mixing
• Steering mixing
• Servo monitor
Box Contents
• Futaba T7PX Transmitter
• Futaba R334SBS Receiver
• Printed User Manual
Futaba Recommended Equipment
• Recommended low profile servo = Futaba BLS-571SV
• Recommended Receiver = Futaba R334SBS
Note:To get the best from the Futaba SR system you can update many Futaba SV servos using the 7PX controller itself to activate SR mode within them.
Specifications | |
---|---|
Interface | 1 Jog Dial + Touch Screen |
Mixes | 5 |
Model Memory | 40 (+ SD Card) |
ModelName | Up to 15 Characters |
Modulation | Futaba SR/T-FHSS/S-FHSS/FASST |
NFC | Yes |
Receiver | Futaba R334SBS (Included) |
Response Speed | SR = 2.45ms |
Response Speed | T-FHSS = 4.15ms |
Screen | 4.3" Color Touch LCD (5,118mm2) |
Screen Backlight | Yes |
Speaker | Yes |
Switches | 6 x Push, 1 x 2-Position |
Telemetry | Yes |
Trigger Adjustment | 7mm |
Trigger Size | Super Small/Small/Normal/Large |
Trims | 6 Digital |
Update | Using SD Card or NFC Android Device |
Dials | 1 |
Wheel Angle | 24 Positions |
Weight | 580g |
Channels | 4 Channel (7 Channel on S-FHSS) |
Frequency | 2.4GHz |
Voltage | 6 - 7.4V |
Secured by Stripe
- Brand: Futaba RP
- Part No: P-CB7PX
- Barcode: 4513886030208
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 7 Channel
- Format: Steerwheel
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
That's what Futaba include... it should suffice for the large majority of users - but if you need more channels you could use the 8 channel R2008SB
The 7PX is supplied with an R334SBS receiver, which operates on both T-FHSS SR and T-FHSS. When the receiver is set to T-FHSS, full telemetry can be used, and as standard the receiver supplies the receiver voltage level and signal strength (no sensors required). Adding sensors allows the engine temperature/rpm data (I/C cars) or main power battery/rpm/motor temperature etc (electric cars) to be shown on the Tx via telemetry.
As well as being shown visually, voice information/warnings can also be activated in the transmitter, as can vibration and audible (buzzer type) warnings – the operator can set the levels at which these warnings activate.
The 7PX outputs S-FHSS/T-FHSS/T-FHSS SR and FASST transmission systems, but only T-FHSS gives telemetry, so any of the following receivers can be used where telemetry is needed.
