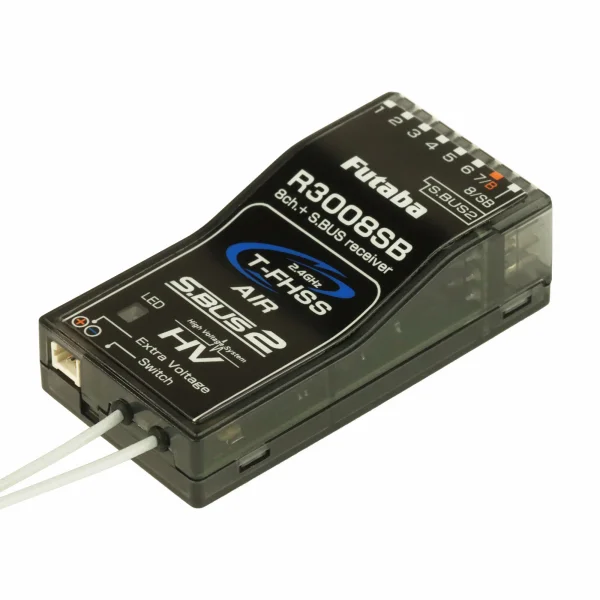

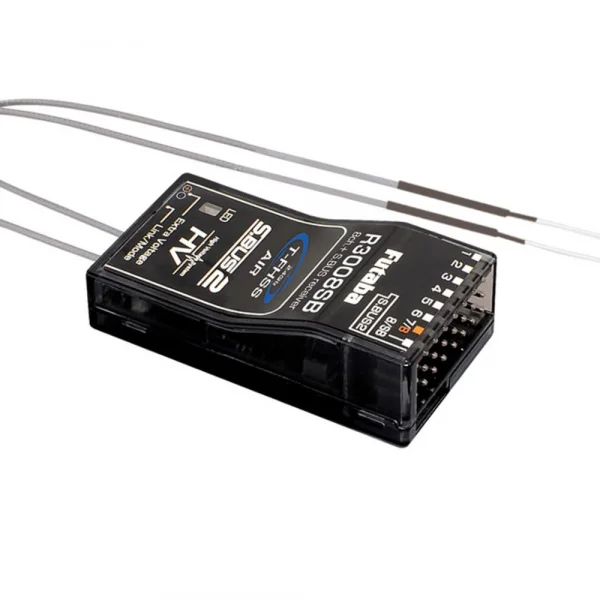

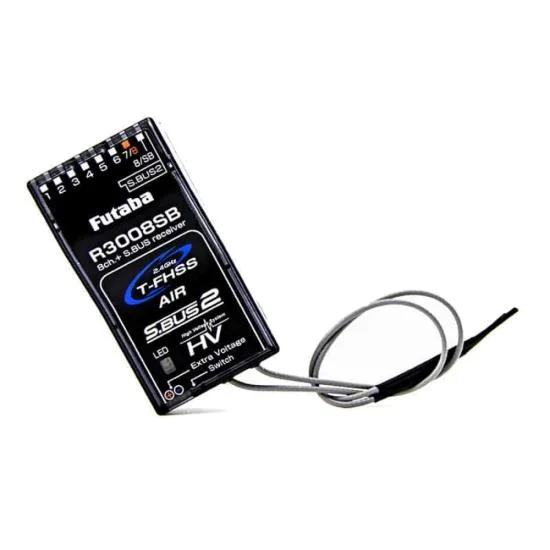

Futaba R3008SB 8-Channel Air Receiver FUT05102609-3

The Futaba R3008SB 8-channel Air Receiver (18-channel S.Bus) T-FHSS, part number FUT05102609-3, is an air receiver for T-FHSS systems. It provides eight conventional channels and supports up to 18 channels through its S.Bus connection, combining the channel formats stated in its product name.

This receiver has a dual-antenna arrangement and is specified as a high-voltage unit. Its input voltage range is 4.8–7.4 V, making this range the key electrical requirement to consider when selecting associated equipment. The receiver is finished in black and has a listed weight of 10.1 g.

The R3008SB is identified as an air receiver, with its eight-channel operation and 18-channel S.Bus capability clearly stated. The T-FHSS designation identifies the transmission system used by the product. Check the requirements of the intended radio installation against the receiver's voltage range, channel arrangement and connection method before use.

Specifications

• Channels: 8
• S.Bus capacity: 18 channels
• Input voltage: 4.8–7.4 V
• Antenna arrangement: Dual antenna
• Weight: 10.1 g
• Dimensions: 47 × 25 × 14 mm
• Colour: Black
• Age recommendation: 14+
