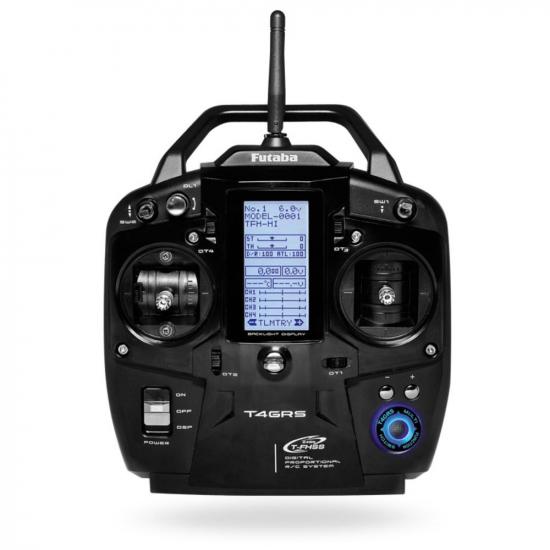

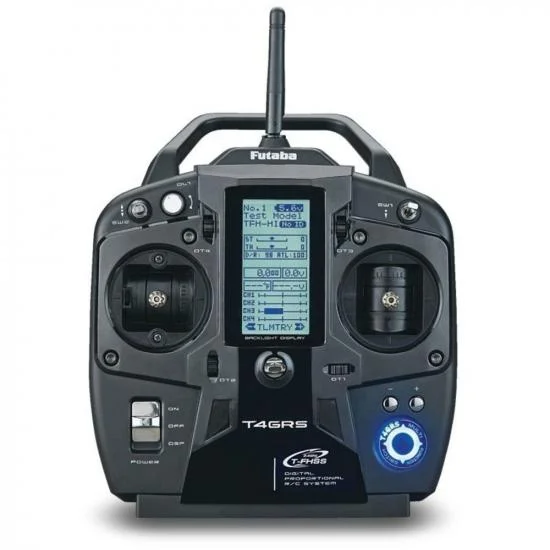

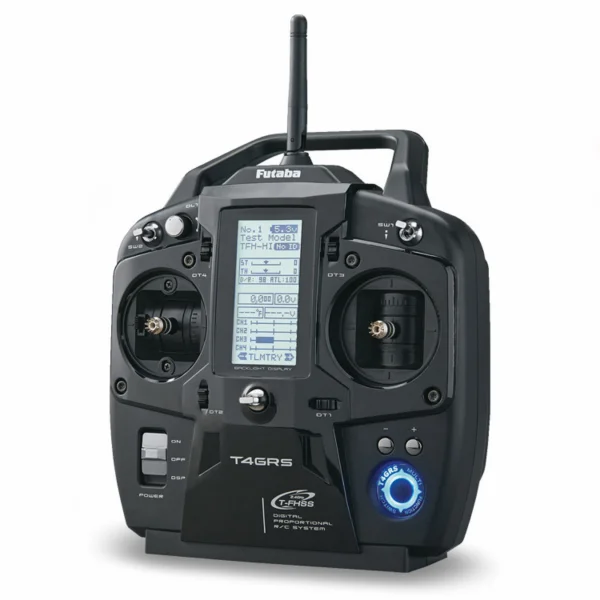

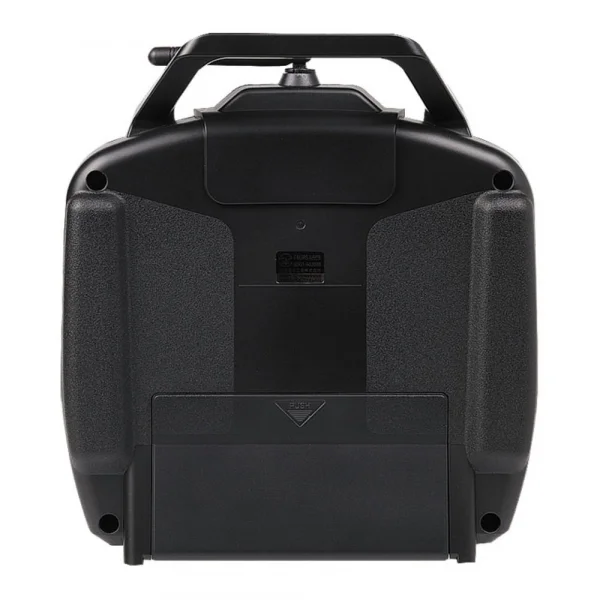

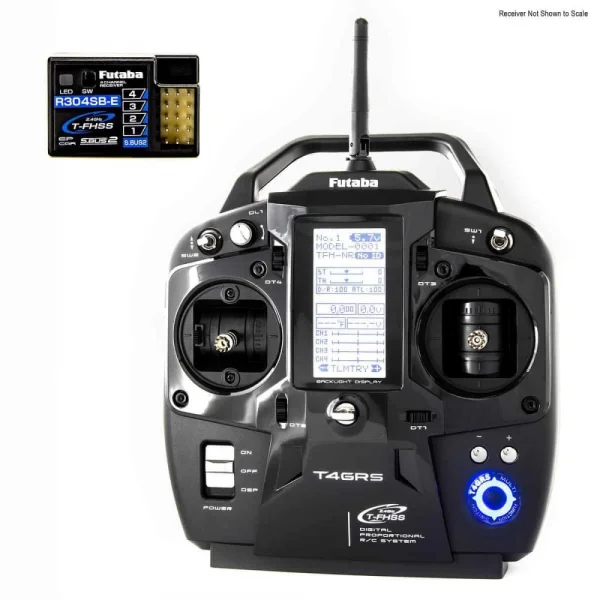

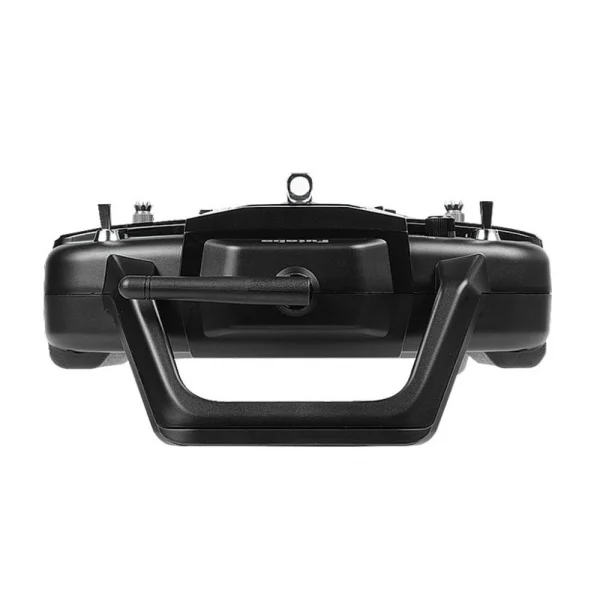

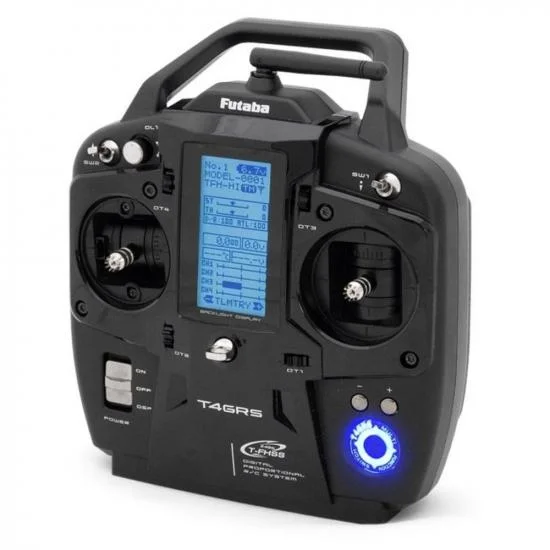

Futaba 4GRS Transmitter With R304SB Receiver

Futaba's mid range surface stick set has 4 channels, a 64x32mm backlit LCD, 40 model memories and, of course, Futaba s renowned telemetry system, which is crucial for honing the performance of your car ready for racing. Packed with features that are ideal for competition use, for both cars and boats, the T4GRS incorporates FHSS/S-FHSS and T-FHSS transmission modes and a supreme 4.4ms response speed.

• Model name (10 characters)
• Sub trim
• Servo reverse
• Fail-safe
• End point adjustment
• Exponential
• Servo speed
• Throttle speed
• Throttle acceleration
• ABS
• Channel 3/4 servo position
• Steering dual rate
• Throttle ATL
• Brake mixing
• Programmable mixing
• 4WS mixing
• Dual ESC mixing
• Gyro mixing
• CPS mixing
• Throttle model
• ESC link
• Data transfer
• Up timer
• Down timer
• Lap timer
• Lap list
• Stick adjust
• Telemetry
Telemetry functions
• Receiver battery voltage
• Temperature
• RPM
• External voltage

Futaba 4GRS Transmitter With R304SB Receiver Key Features:

• 2.4GHz T-FHSS telemetry system.
• S.Bus2 receiver.
• MC link function.
• Backlit 64x32mm LCD.
• Adjustable stick position.
• Mechanical ATL.
• Advanced Braking System.
• Throttle acceleration.
• Throttle speed.
• Steering speed.
• Programmable mixing.
• Brake mixing.
• Four wheel steer mixing.
• Dual ESC mixing.
• CPS-1 mixing.
• Gyro mixing.
• Fail-safe.
• 40 model memory.
• 10 character model name.
• Boat mode.
• Stick tension adjust.
• Timer up / down / lap.

Features:

• Telemetry System: The T4GRS transmitter has adopted the newly developed bidirectional communication system "T-FHSS".
• 2.4 GHz SS Radio Communication System: Frequency channel setting is unnecessary: Channel shifting takes place within the 2.4 GHz band automatically. This system minimises the interference from other 2.4 GHz systems.
• Model Memory For 40 Models: Model names can use up to letters, numbers and symbols so that logical names can be used. A model memory with different setups can be created using the model copy function.
• Menu Selection: The setup screens are called from menu screens. The menu screen can be selected from among 2 levels.
• Brake Mixing For Large Cars (BRAKE): Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.
• 4WS Mixing For Crawlers and Other 4WS Type (4WS): This function can be used with crawlers and other 4WS type vehicles.
• Dual ESCs Mixing For Crawler Cars (DUAL ESC): ESCs at the front and rear are controlled independently.
• Gyro Mixing (GYRO MIX): The sensitivity of Futaba car rate gyros can be adjusted from the T4GRS.
• CPS-1 Mixing (CPS MIX): LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
• Anti-Skid Braking System (TH A.B.S): This function applies the brakes so that the tires of gas powered cars, etc. do not lose their grip on the road even when braking at corners.
• Throttle Acceleration (ACCEL): Gas power cars have a time lag before the clutch and brakes become effective. The throttle acceleration function reduces this time lag.
• Throttle Speed (SPEED): Sudden trigger operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumptoion.
• Steering Speed (SPEED): When you sense that the steering servo is too fast, etc. the servo operating speed (direction that suppresses the maximum speed) can be adjusted.
• Racing Timer (TIMER): The lap timer can record 100 lap times and total time. The timer can also be started automatically by trigger operation. The race time and audible alarm can be set. Re-/fueling time are indicated by an audible alarm. An up timer is also provided.
• Digital Trim: The current trim position is displayed on the LCD screen. The operating amount of 1 step can also be adjusted.
• Function Select Switch (SWITCH)/Dial Function (TRIM DIAL): This assigns functions to 2 switches and fials (digital trim, digital dial). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.
• ESC-LINK Function (MC-LINK): This dedicated function allows you to set up the Link software so that your T4GRS can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC950CR, MC850C, MC851C, MC602C, MC402CR, etc.
• Tension Adjustment Function: The tension of the stick and throttle trigger springs can be adjusted from the inside.
• Mechanical ATL Adjustment: Make this adjustment when you want to decrease the total travel of the forward (up) side or brake (down) side of the throttle stick.
• Display Switch: Display switch allowes function setup without transmitting.

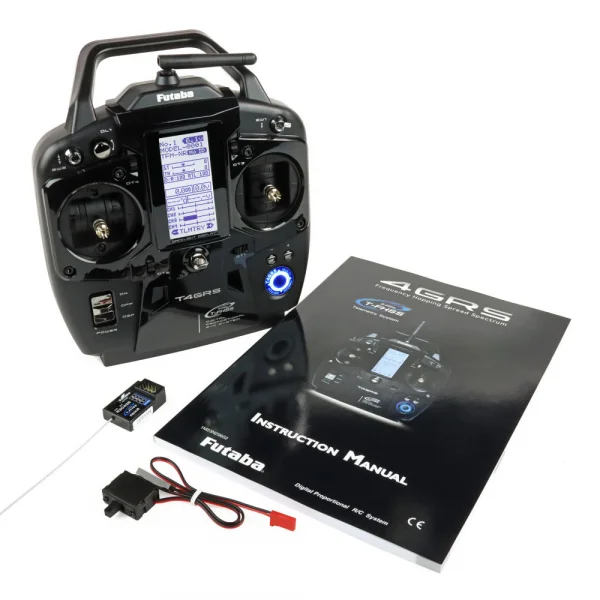

What's in the Box:

• 1x T4GRS 4-channel transmitter.
• 1x R304SB receiver.
• 1x Switch harness.
• 1x Comprehensive instruction manual.

Needed to Complete:

• 4x AA batteries for the transmitter.

Manuals & Parts Explosions:

Futaba 4GRS Transmitter With R304SB Receiver Tech Specs:

• Weight: 556g / 64oz
• Shipping Weight: 1.03kg / 2.27lbs
• Product Height: 195mm / 7.7in
• Product Width: 55mm / 2.2 (excluding handle)in
• Product Length: 180mm / 7.1in

• Age Recommendation: 14+
• Channels: 4
• Radio Protocol: S-FHSS [Surface], T-FHSS [Surface]
• Colour: Black

• Brand: Futaba
• Part No: FUT05003095-3
• Barcode: 4513886027017
• Receivers Included: 1
• Frequency: 2.4Ghz
• Channels: 4 Channel
• Format: Stick
