Description

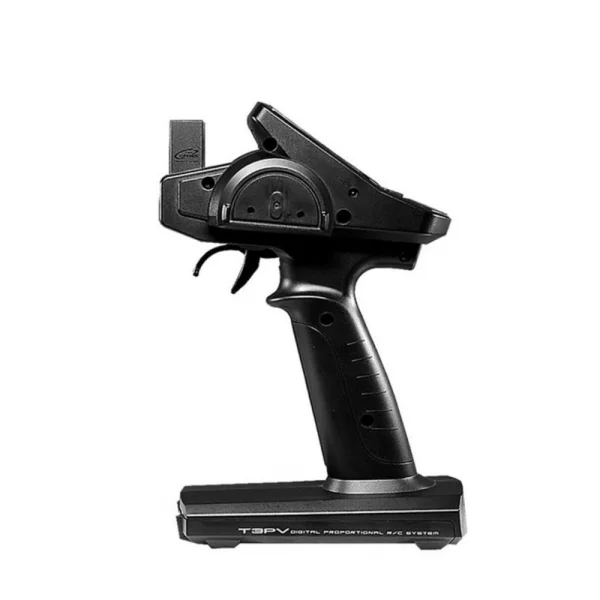

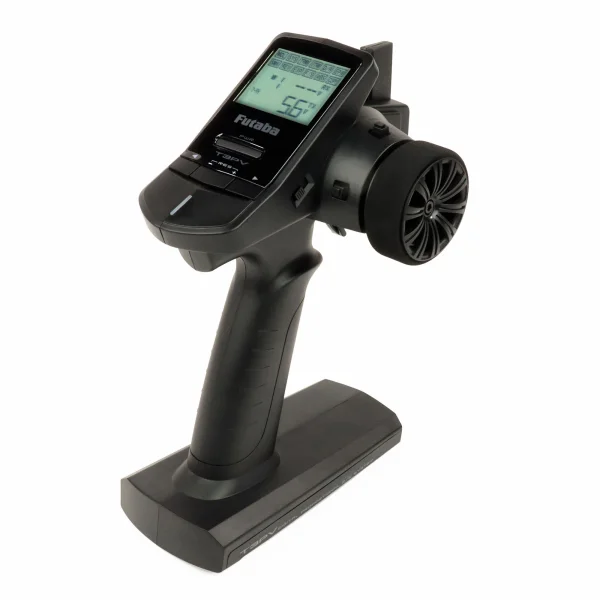

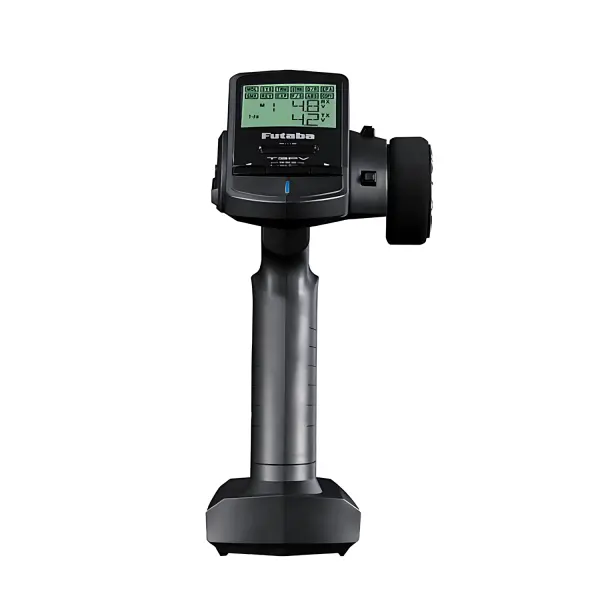

The Futaba 3PV With R203GF Receiver (part number FUT05003108-3) is a 3-channel 2.4 GHz surface radio set supplied with a T3PV transmitter and an R203GF receiver.
The T3PV transmitter uses Futaba's bidirectional T-FHSS telemetry system, and the set also supports the S-FHSS surface protocol. Because it works on the 2.4 GHz band, there is no frequency channel to set: channel shifting happens automatically, which helps minimise interference from other 2.4 GHz systems.
The transmitter stores settings for 10 models. Each can be given a name of up to 4 letters, numbers or symbols, and the data from the selected model can be copied to another memory. Steering and throttle trims are on the handset, and channel 4 has its own trim for rear steering or front brake adjustment. Sub trim sets the neutral position of the steering, throttle and channel 3 and 4 servos.
Setup options include steering dual rates, end point adjustment on channels 1 to 4, and servo reversing on each channel. Steering and throttle EXP change how sensitive the servo is around neutral or in the forward and brake directions. 4WS mixing suits crawlers and other four-wheel-steer cars, while brake mixing allows front and rear brakes to be set independently, as on 1/5 scale GP cars. An ABS function pulses the brake on and off to simulate anti-lock braking.
What's Included
- T3PV transmitter

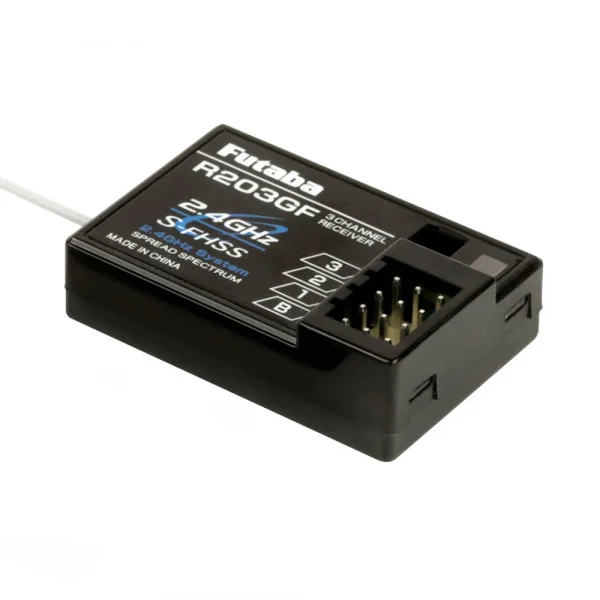

- R203GF receiver
- Mini screwdriver
Specifications
- Channels: 3
- Radio protocol: T-FHSS (surface), S-FHSS (surface)
- Colour: Black
- Age recommendation: 14+
- Shipping weight: 0.66 kg
Secured by Stripe
Futaba 3PV With R203GF Receiver Manuals & Guides
Manuals & Guides
Specifications
Futaba 3PV With R203GF Receiver Key Features:
- Telemetry System
The T3PV transmitter has adopted the newly developed bidirectional communication system "T-FHSS". - 2.4 GHz SS Radio Communication System
Frequency channel setting is unnecessary: Channel shifting takes place within the 2.4 GHz band automatically. This system minimises the interference from other 2.4 GHz systems. - Model Memory For 10 Models
Model names can use up to 4 letters, numbers, and symbols. The contents of the currently selected model data can be copied to another model. - Steering Trim

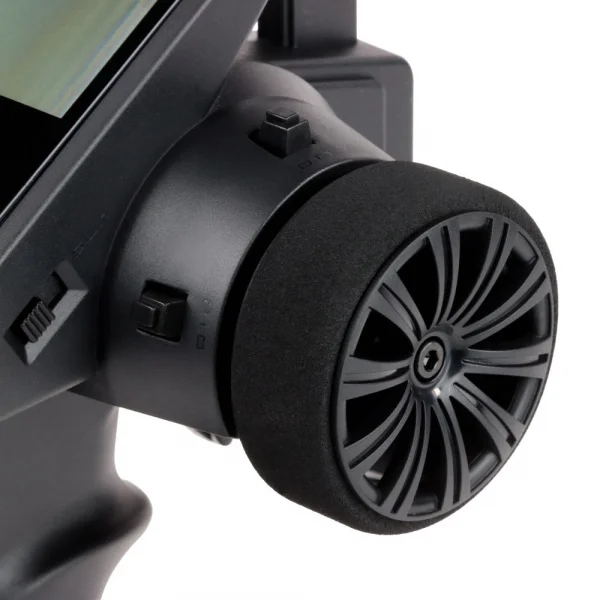

Steering neutral adjustments can be made by moving the steering trim knob to the left or right. - Throttle Trim
Throttle neutral adjustments can be made moving the throttle trim up or down. - Channel-4 Trim
At 4WS Mixing: The neutral adjustments of the rear steering servo can be made by pressing the +/- key.
At BRK Mixing: The neutral adjustments of the front brake servo can be made by pressing the +/- key. - Sub Trim
Use this function to adjust the neutral position of the steering, throttle, and channel 3 (4) servos. - Steering Dual Rates (D/R)
Use this function to adjust the steering travel of your model. - Steering End Point Adjustment (EPA-CH1)
This function is used to limit the servo movement to the left or right. This feature will compensate for any difference in right or left turning angles or radius due to the characteristics of your model. - Throttle End Point Adjustment (EPA-CH2)
This function is used to adjust the forward and brake side servo travel. Each direction can be adjusted independent of each other. Use this feature to set the throttle servo travel. - Channel-3 End Point Adjustment (EPA-CH3)
This function is used to limit the servo movement to the left or right. - Channel-4 End Point Adjustment (EPA-CH4)
This function is used to limit the servo movement to the left or right. - 4WS/BRK Mixing (SMX)
4WS mixing is used with crawler and other 4WS specification cars. The first channel controls the front side steering and the fourth channel controls the rear side steering. Brake (BRK) mixing is used when the front and rear brakes must be adjusted independently, such as in 1/5 GP cars, etc. This mixing uses the second channel to control the rear brakes and the fourth channel to control the front brakes. - Steering Servo Reversing
This function reverses the rotation direction of the steering servo. - Throttle Servo Reversing
This function reverses the rotation direction of the throttle servo. - Channel-3 Servo Reversing
This function reverses the rotation direction of the channel-3 servo. - Channel-4 Servo Reversing
This function reverses the rotation direction of the channel-4 servo. - Steering EXP
This function is used to change the sensitivity of the steering servo around the neutral position. - Throttle EXP
This function changes the sensitivity of the throttle servo in the throttle trigger forward side and brake side directions. - ABS
This function simulates a full size car's anti-lock braking by pulsing the brake on and off rapidly. Model stops as rapidly as possible without skidding.
What's in the Box:
- 1x T3PV Transmitter
- 1x R203GF Receiver
- 1x Mini Screwdriver
Futaba 3PV With R203GF Receiver Tech Specs:
- Shipping Weight: 0.66kg / 1.46lbs
- Age Recommendation: 14+
- Channels: 3
- Radio Protocol: T-FHSS [Surface], S-FHSS [Surface]
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05003108-3
- Barcode: 4513886028663
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 3 Channel
- Format: Steerwheel
