Hobbywing Quicrun 10BL120 G2 Combo 13.5T (HW38020382)
Brand: Hobbywing
Part No: HW38020382
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Quicrun G2 10BL120 ESC Combo With 3650Sd 13.5T Motor
Description

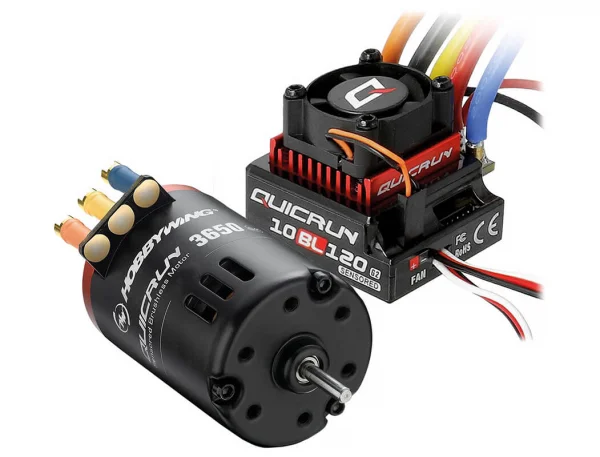

The Hobbywing Quicrun G2 10BL120 ESC Combo With 3650SD 13.5T Motor (HW38020382) pairs a proven 120A sensored brushless speed controller with a Quicrun 3650SD G2 motor rated at 13.5T (approx. 2850kV). Designed as a solid, cost-effective upgrade for 1/10-scale builds, this combo offers smooth, linear power delivery, robust protection features and flexible tuning to suit a wide range of on-road and off-road applications.
Features (ESC)
- Wide tuning range including turbo delay, turbo timing and boost timing
- Improved switch-mode BEC for stable servo and receiver power (6V/7.4V at 4A)
- Selectable motor rotation direction (CW/CCW)
- Compact design to suit varied chassis layouts
- Protective functions: overheating protection and low-voltage shutdown
- Top performance at a keen price point
Features (Motor)
- 2-pole rotor design
- Smooth, linear power delivery
- Good heat dissipation
- Fixed timing and simple Plug 'n Play setup

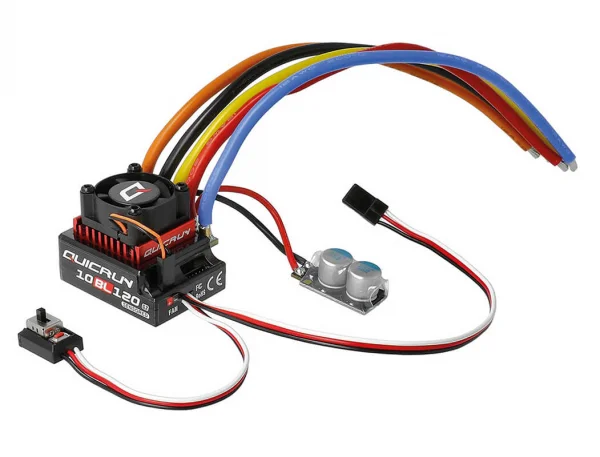

Specifications (ESC)
- Type: Brushless, sensored
- Continuous/peak current: 120A / 760A
- Input: 2–3S LiPo
- BEC: 6V / 7.4V, 4A (switch mode)
- Motor types: Brushless with or without sensor
- Motor limit: 2S ≥ 4.5T (3650); 3S ≥ 10.5T (3650)
- Cooling fan: Yes (powered via BEC)
- Programming: SET button, LED programming card, LCD programming box (G2)
- Dimensions: 44 × 36.8 × 32.3 mm
- Weight: 101.5 g

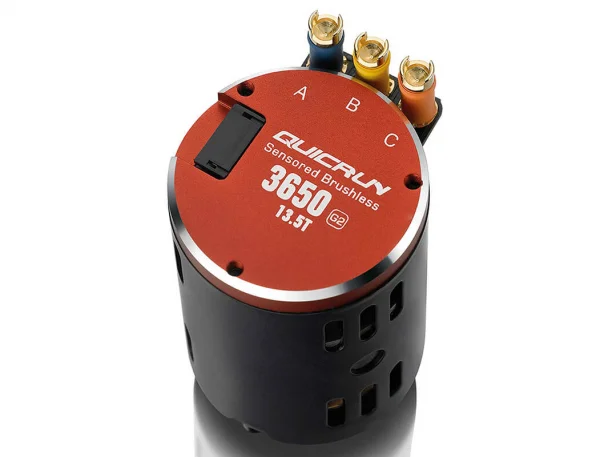

Specifications (Motor)
- Type: Brushless, sensored (inrunner)
- Turns / kV: 13.5T / ~2850kV
- Poles: 2
- LiPo cells: 2–3S
- No-load current: 2.4A
- Dimensions: 36 mm diameter × 52.8 mm length
- Shaft diameter: 3.17 mm
- Timing: Fixed
- Weight: 186 g
Suggested Compatibility
- 1/10 and 1/12 on-road (touring, drift, F1, M-chassis)
- 1/10 off-road (buggies, 2WD SCTs and trucks)
- STOCK/SPORT class use

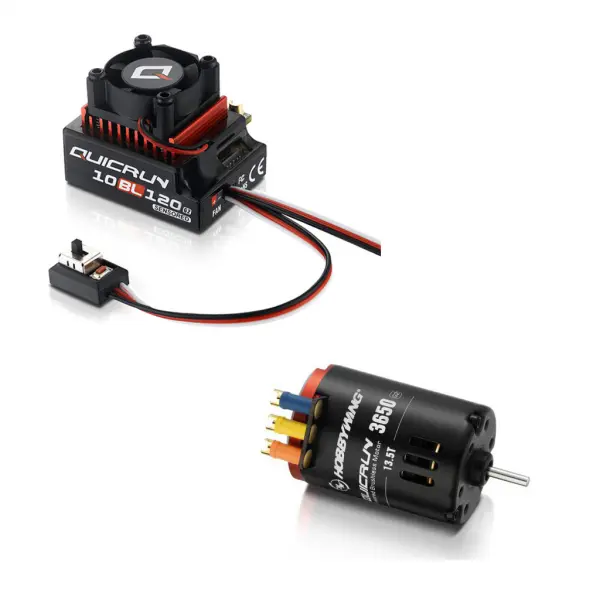

What's Included
- 1 × Quicrun 10BL120 G2 ESC
- 1 × Quicrun 3650SD G2 motor, 13.5T (~2850kV)
Secured by Stripe
Hobbywing Quicrun G2 10BL120 ESC Combo With 3650Sd 13.5T Motor Manuals & Guides
Specifications
This Quicrun combo includes the G2 version of the Quicrun 10BL120 controller as well as a versatile 3650SD G2 motor with around 13.5T or 2850kV. The 2nd generation of the Quicrun 10BL120 controller is a classic, solid brushless solution for 1/10 vehicles such as touring cars, buggies and drifters. With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor. The QuicRun series from Hobbywing offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - regardless of whether they have brushless motors or not.
Together, the two components form a cost-effective electronics team for beginners and advanced users alike.
Features (ESC)- A wide range of setting options (including turbo delay, turbo timing and boost timing)
- Improved BEC output with switch mode instead of linear mode
- Freely selectable motor rotation direction (CW or CCW)
- Top performance at a low price
- Compact design, suitable for a wide range of chassis
- Ideal for many applications and competitions
- Various protective functions:
- Overheating protection
- Low voltage shutdown
- Features (motor):
- 2-pole rotor design.
- Smooth and linear power
- Good heat dissipation
- Plug 'n Play
Type: Brushless, Sensor
Current (continuous/short): 120A / 760A
Input Voltage: 2-3S LiPo
BEC: 6V / 7.4V at 4A (switch mode)
Motor Types: Brushless motors with and without sensor
Motor Limit: 2S: >= 4.5T, 3650 motor / 3S: > = 10.5T, 3650 motor
Fan: Yes, operated via the BEC
Programming: - SET button / - LED programming card / - LCD programming box (G2)
Dimensions: 44 x 36.8 x 32.3mm
Weight: 101.5g
Suitable Vehicles: 1/10 touring car, buggy, drift
Type: Brushless / Sensor
Poles: 2
Speed: 2850kV
Turns: 13.5T
Number of LiPo Cells: 2-3S
Current Idle: 2.4A
Outer Diameter: 36mm
Length: 52.8mm
Shaft Diameter: 3.17mm
Weight: 186g
Timing: Fixed
Cells: 2-3
ESC: Quicrun 10BL120 G2
Duration: 120 A
Engine: Quicrun 3650SD G2 mit 2850kv
Scale: 1:10
BEC: 6-7,4V/4A
Short: 760 A
Size (mm): 44/36,8/32,3 mm
Engine-type: Brushless Sensored
Set Weight: 287,5 g
Selection Category: Set
Engine Type 2: Inrunner
Drive Type: Electric
- 1/10, 1/12 On-Road (racing or drift touring cars, F1, M cars, etc.) and Off-Road (buggies/2WD SCTs and trucks)
- STOCK/SPORT class competitions
- Beginners for practice and rock crawlers (applies to 21.5T and 25.5T motors)
- 1 x Quicrun 10BL120 G2 controller
- 1 x Quicrun 3650SD G2 with 13.5T or 2850kV
