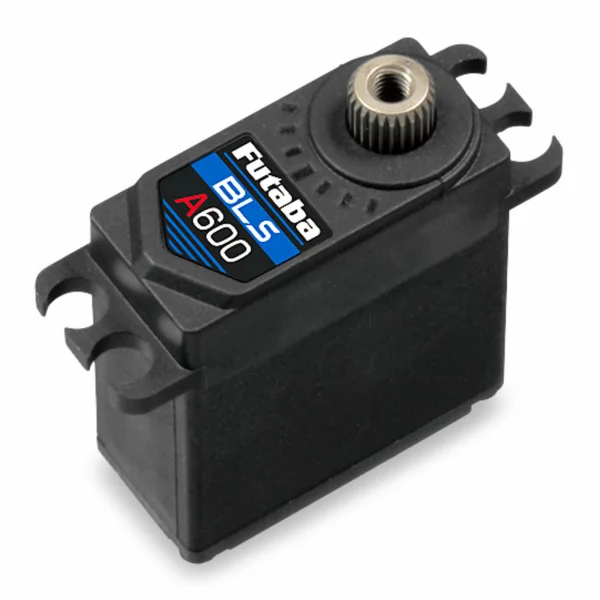

Futaba BLS-A600 Mini Brushless Servo S.Bus2 0.10s

The Futaba BLS-A600 is a high-voltage mini air servo featuring a durable brushless motor and multi-protocol connectivity. Supporting standard PWM alongside S.Bus and S.Bus2, it offers precise response in a compact, lightweight form factor. Ideal where a mini HV servo is required, the BLS-A600 combines speed, torque and reliability in a 28 g package. Part no. FUT05102730-3.

Key Features

• S.Bus and S.Bus2 support
• Brushless motor
• High-voltage (HV) operation
• PWM control compatibility

Technical Specifications

• Speed: 0.10 sec/60° (6.6V); 0.9 sec/60° (7.4V)
• Torque: 6.0 kgf·cm / 83.3 ozf·in (6.6V); 6.7 kgf·cm / 93 ozf·in (7.4V)
• Power supply: DC 6.0V–7.4V (no dry battery use)
• Size: Length 27 mm (1.07 in), Width 13 mm (0.51 in), Height 31 mm (1.2 in)
• Weight: 28 g (0.98 oz)
• Servo size: Mini
• Colour: Black
• Material: Metal
• Age recommendation: 14+
• Shipping weight: 0.07 kg (0.16 lbs)

What’s In The Box

• 1x BLS-A600 Mini Brushless Servo
• Horns
• Mounting hardware
