Futaba BLS-CM600 Mini Brushless Servo PWM/S.Bus2 6.5kg

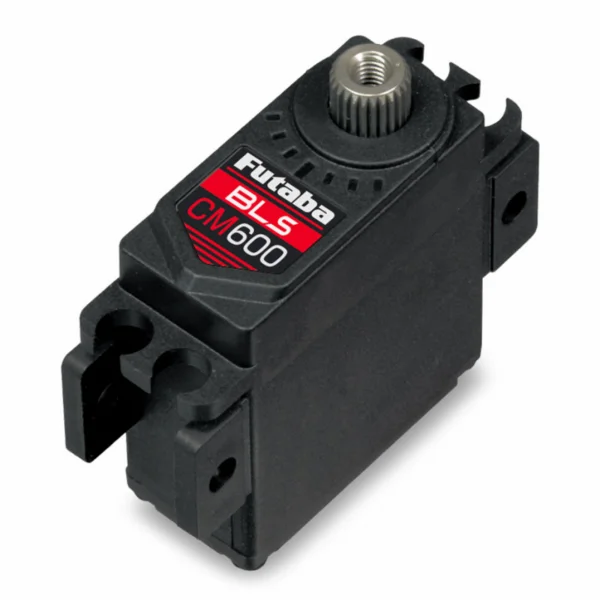

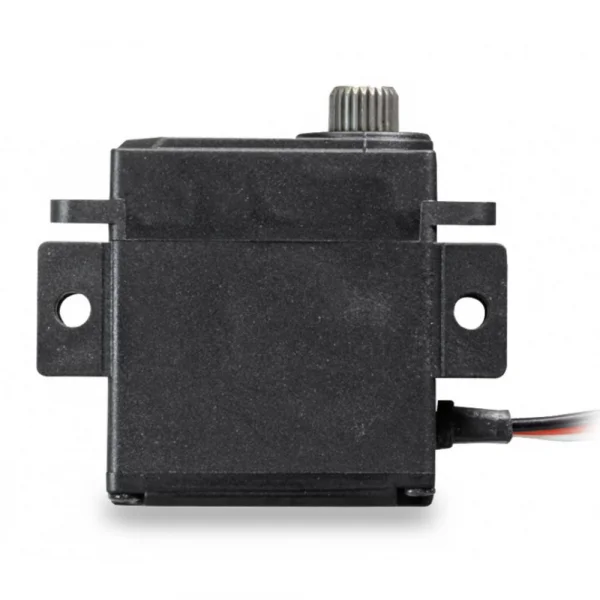

The Futaba BLS-CM600 Mini Brushless Servo PWM/S.Bus2 – 6.5kg 0.08s (part no. FUT05102731-3) is a compact surface-focused mini servo with a brushless motor and plastic case/gearing. Despite its small footprint, it delivers strong torque and rapid transit speeds, making it well-suited to precise control in surface applications. Dual PWM/S.Bus2 control options provide flexible installation and setup.

Key Features

• Mini servo for surface applications
• Brushless motor
• Plastic case and plastic gearing
• Size: 27.2 × 13.0 × 30.5 mm
• Weight: 28 g
• Torque: 5.4 kgf·cm (6.0 V), 6.7 kgf·cm (7.4 V)
• Speed: 0.11 s/60° (6.0 V), 0.09 s/60° (7.4 V)
• PWM and S.Bus2 control

What’s In The Box

• 1x BLS-CM600 Mini Brushless Servo
• Horns
• Mounting hardware

Tech Specs

• Dimensions (L×W×H): 27 mm × 13 mm × 31 mm (approx. 27.2 × 13 × 30.5 mm)
• Weight: 28 g / 0.99 oz
• Shipping weight: 0.07 kg / 0.16 lbs
• Torque (imperial): 74.9 oz-in (6.0 V), 93.0 oz-in (7.4 V)
• Servo size: Mini
• Colour: Black
• Material: Plastic
• Age recommendation: 14+
