Description
The Futaba CGY755 3-Axis 3D/F3C Helicopter Gyro and Governor (part number FUT05102681-3) is an all-in-one flight control unit that combines a cyclic gyro, a tail rotor gyro and a governor for radio-controlled helicopters.
It uses a 3-axis sensor and accelerometer, and it handles 760us cyclic and tail rotor signals. Futaba describes it as easy to set up for both 3D and F3C flying. The unit can be programmed wirelessly with the TX or through the handheld GPB-1 programming box, and it supports SBUS2 telemetry sensors and devices. The case is aluminium, and the gyro can be fitted using either rigid or tape mounting.
The pack contains one CGY755 3-Axis Gyro. The manufacturer recommends it for ages 14 and over.
Specifications
- Operating voltage: DC 4.2 to 8.4 V
- Size: 26.8 x 37.5 x 16 mm
- Weight: 20.2 g
- Colour: Black
Secured by Stripe
Futaba CGY755 3-Axis 3D/F3C Helicopter Gyro and Governor Manuals & Guides
Specifications
CGY755– Helicopter Flight Control Gyro
Operating Voltage:
DC 4.2 ~ 8.4V
Size:
26.8 x 37.5 x 16 mm
1.055 x 1.476 x 0.63 in
Weight:
20.2 g
0.141 oz
Futaba CGY755 3-Axis 3D/F3C Helicopter Gyro and Governor Key Features:
- All in one Cyclic Gyro, Tail Rotor Gyro, Governor
- High Quality 3 Axis Sensor and Accelerometer

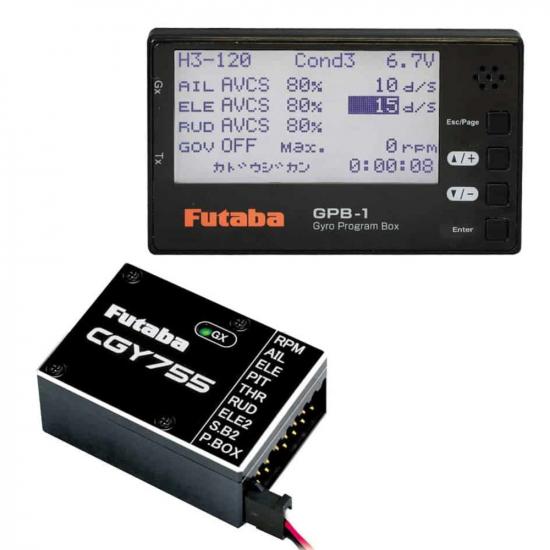

- Wireless Programmability with TX/GPB-1
- 760us Cyclic and Tail Rotor Capability
- Easy to set-up for 3D and F3C
- Programmable through Hand Held Box: GPB-1
- Supports SBUS2 Telemetry Sensors and Devices
- Aluminium Case
- Rigid or Tape Mounting
What's in the Box:
- 1x CG755 3-Axis Gyro
Futaba CGY755 3-Axis 3D/F3C Helicopter Gyro and Governor Tech Specs:
- Weight: 20.2g / 0.71oz
- Shipping Weight: 0.20kg / 0.43lbs
- Product Height: 16mm / 0.63in
- Product Width: 38mm / 1.48in
- Product Length: 27mm / 1.06in
- Age Recommendation: 14+
- Colour: Black
- Material: Plastic
Key Info:
- Brand: Futaba
- Part No: FUT05102681-3
- Barcode: 4513886033636
