Futaba CGY760R-GPB1 3-Axis Helicopter Gyro FUT05102652-3

Brand: Futaba

Part No: FUT05102652-3

£275.49 RRP £289.99
Pre-Order

Finance options available at checkout.

Popular with customers who buy products like the Futaba CGY760R-GPB1 3-Axis Helicopter Gyro, T-FHSS/FASSTest Rx and Governor with Programmer

Description

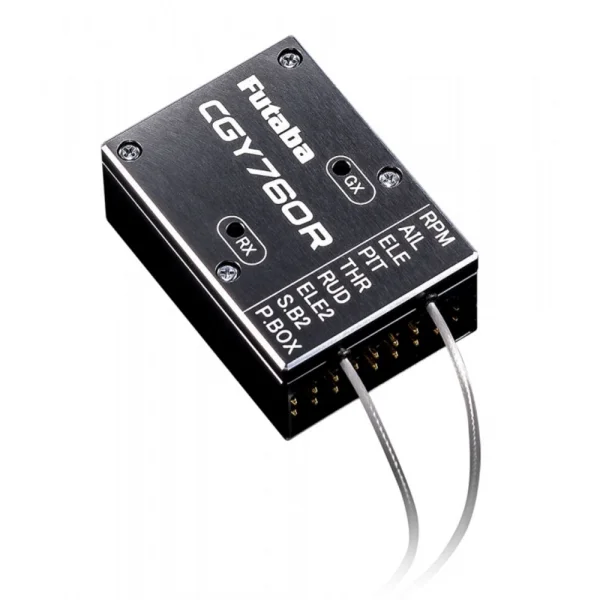

The Futaba CGY760R-GPB1 3-Axis Helicopter Gyro, T-FHSS/FASSTest Rx and Governor with Programmer (part number FUT05102652-3) is an all-in-one flight control unit for RC helicopters, combining a cyclic gyro, tail rotor gyro, governor and Futaba T-FHSS/FASSTest receiver in a single aluminium case.

Because the receiver, gyro and governor are built into one unit, it can replace several separate components in the model. It uses a 3-axis sensor with an accelerometer and handles 760us signals for both the cyclic and the tail rotor. Futaba describes it as easy to set up for 3D and F3C flying, and it supports SBUS2 telemetry sensors and devices. Suggested compatibility is RC helicopters in the 250 to 800 size range.

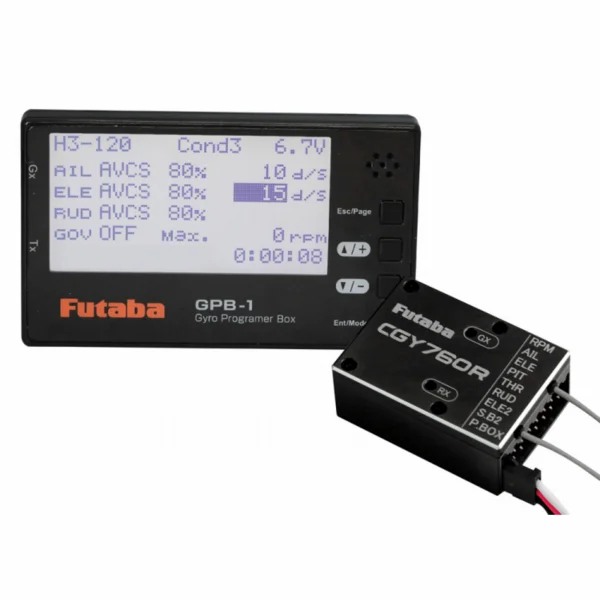

Settings can be adjusted wirelessly with a TX or through the supplied hand-held GPB-1 programming box. The gyro can be fitted with either rigid mounting or tape mounting.

What's Included

  • 1x CGY760R 3-axis gyro
  • 1x GPB-1 programming box

Specifications

  • Operating voltage: DC 4.2 to 8.4V
  • Size: 26.8 x 37.5 x 16 mm
  • Weight: 20.2 g
  • Radio protocol: FASSTest, T-FHSS (Air)
  • Colour: Black
  • Age recommendation: 14+
Secure Payments

Secured by Stripe

Futaba CGY760R-GPB1 3-Axis Helicopter Gyro, T-FHSS/FASSTest Rx and Governor with Programmer Manuals & Guides

Specifications

CGY760R– Helicopter Flight Control Gyro
Flight Control for RC Helicopters 250-800 Size (01102158-3)(01102159-3)

Operating Voltage:
DC 4.2 ~ 8.4V

Size:
26.8 x 37.5 x 16 mm
1.055 x 1.476 x 0.63 in

Weight:
20.2 g
0.141 oz

Futaba CGY760R-GPB1 3-Axis Helicopter Gyro, T-FHSS/FASSTest Rx and Governor with Programmer Key Features:

  • All in one Cyclic Gyro, Tail Rotor Gyro, Governor, Futaba TFHSS/FASSTest Receiver
  • High Quality 3 Axis Sensor and Accelerometer
  • Wireless Programmability with TX/GPB-1
  • 760us Cyclic and Tail Rotor Capability
  • Easy to set-up for 3D and F3C
  • Programmable through Hand Held Box: GPB-1
  • Supports SBUS2 Telemetry Sensors and Devices
  • Aluminium Case
  • Rigid or Tape Mounting

What's in the Box:

  • 1x CGY760R 3-Axis Gyro
  • 1xGPB1 Programming Box

Futaba CGY760R-GPB1 3-Axis Helicopter Gyro, T-FHSS/FASSTest Rx and Governor with Programmer Tech Specs:

  • Weight: 20.2g / 0.71oz
  • Shipping Weight: 0.27kg / 0.60lbs
  • Product Height: 16mm / 0.63in
  • Product Width: 38mm / 1.48in
  • Age Recommendation: 14+
  • Radio Protocol: FASSTest, T-FHSS [Air]
  • Colour: Black


    Key Info:
    • Brand: Futaba
    • Part No: FUT05102652-3
    • Barcode: 4513886030802
