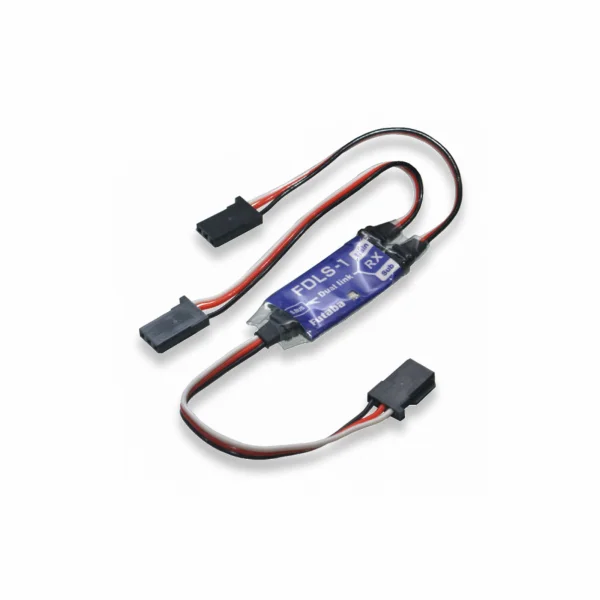

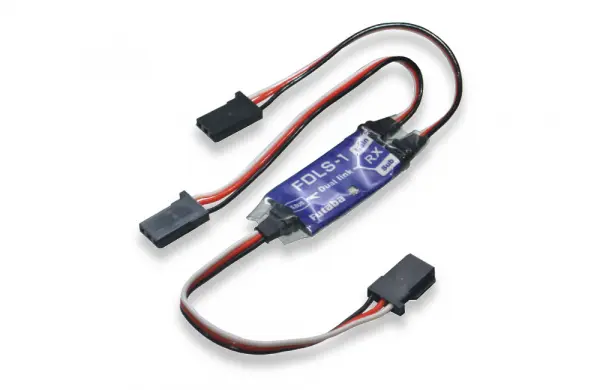

Futaba FDLS-1 Dual-Rx Link System

The Futaba FDLS-1 Dual-Rx Link System (FUT05102696-1) is a two receiver communication switch device designed to coordinate dual receiver setups under a single transmitter. Compact and lightweight, it integrates cleanly into RC models where dual Rx communication is required.

Built by Futaba, the FDLS-1 offers a practical balance of size and capability, with a 240 mm lead and broad voltage tolerance to suit typical receiver power systems.

Key Specifications

• Device Type: Two receiver communication switch device
• Length: 240 mm (9.5 in)
• Weight: 6.5 g (0.2 oz)
• Operating Voltage: DC 3.7–7.4 V (acceptable DC 3.5–8.4 V)
• Colour: Black
• Shipping Weight: 0.02 kg (0.04 lb)

Important Notes

• Both receivers must be under the control of the same transmitter.
• Mixing 2.4 GHz protocols will not allow the FDLS-1 to operate properly.
