Description

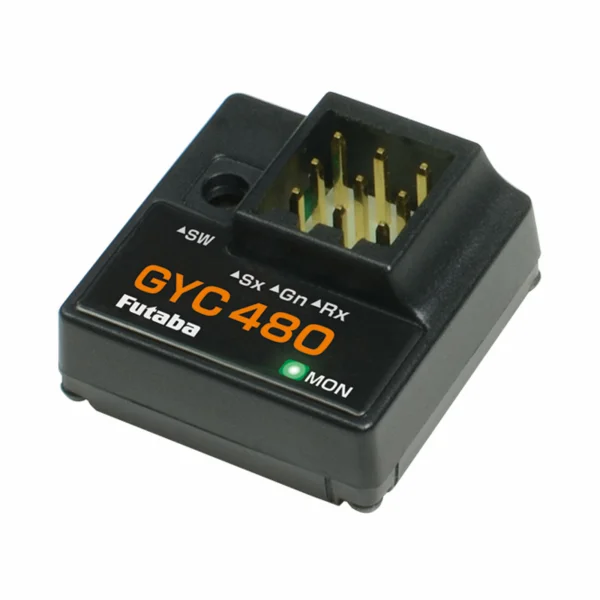

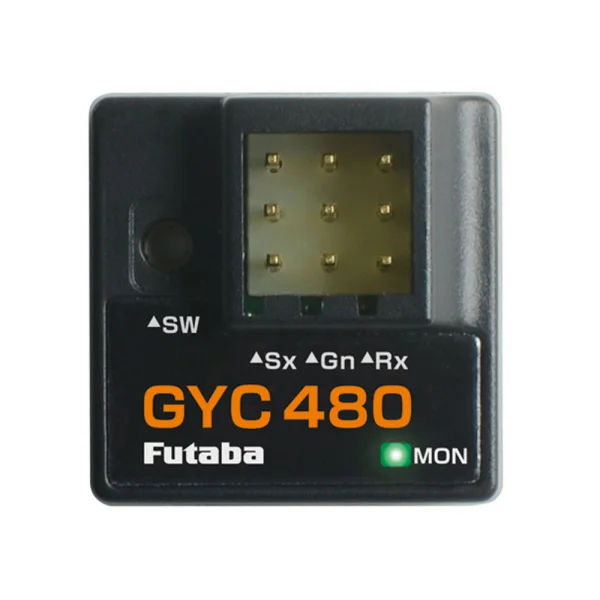

The Futaba GYC480 All Purpose Car Gyro (part number FUT05102754-3) is a compact steering gyro for RC cars, redesigned from the earlier GYC470 with the addition of a UR mode.
UR mode allows direct operation even through the gyro, and the unit is suggested for use with the high-speed response UR/SR mode servos of the F-4G system. The settings are aimed specifically at RC cars. They are intended to limit the effect of road surface irregularities while the fast UR response supports steady straight-line running and cornering, helping with lap times. Gyro sensitivity can be changed from the transmitter using the remote gain function, which needs a transmitter and receiver with three or more channels that can adjust the steering angle on all three.
The gyro works with digital servos only, including Futaba HPS and BLS types, and analogue servos cannot be used. It can be connected through S.BUS with an S.BUS receiver, but it also works with systems other than S.BUS. Adjustments include Normal and AVCS modes, a high-speed response mode, turn-in, gyro curve, left and right endpoints, EXP rate and stick priority. Wireless adjustment is available only with the F-4G T10PX, T6PV, R404SBS and R404SBS-E, and these need a software update before they can change GYC480 settings.
Specifications
- Sensor: vibration gyro
- Weight: 3.7 g
- Size: 21 x 21 x 11 mm
- Operating voltage: DC 4.0 V to 8.4 V
- Current consumption: 30 mA with no servo connected
- Operating temperature: -10°C to 45°C
- Colour: black
- Recommended age: 14+
Secured by Stripe
Futaba GYC480 All Purpose Car Gyro Manuals & Guides
Manuals & Guides
Specifications
Equipped with UR mode for direct operation even through the gyro
The classic grip gyro GYC470 has been redesigned with the addition of UR mode!
Functions:
- Compatible with the F-4G's UR/SR mode servos for high-speed response system.
- Remote gain function: Set the gyro sensitivity from the transmitter. (A transmitter/receiver with 3 or more channels and capable of adjusting the steering angle of 3 channels is required.)
- Settings specifically for RC cars: While suppressing the effects of road surfaces, etc., the synergistic effect with UR mode response provides comfortable straight-line and cornering performance to help improve lap times.
- Ultra-compact and lightweight: Ultra-compact and lightweight design achieved through full use of high-density mounting technology.
- Compatible with S.BUS systems (can also be used with systems other than S.BUS): Can be connected via S.BUS in combination with an S.BUS receiver.
- For digital servos only: For use with Futaba HPS/BLS servos and digital servos only. Analogue servos cannot be used.
- Normal/AVCS mode.
- High-speed response mode.
- Turn-in adjustment.
- Gyro curve adjustment.
- Left and right endpoint adjustment.
- EXP rate adjustment.
- Stick priority mode adjustment.
- Support wireless adjustment function.
A software update is required for T10PX, T6PV, R404SBS, and R404SBS-E to enable wireless settings for GYC480 and GYD560.
Futaba GYC480 All Purpose Car Gyro Key Features:
- Angular Velocity Detection Method: Vibration Gyro Sensor
- Operating Voltage: DC 4.0V - 8.4V
- Current Consumption: 30mA (when servo is not connected)
- Operating Temperature: -10°C - 45°C
- Functions: Monitor LED, S.BUS/S.BUS2 Compatible
Futaba GYC480 All Purpose Car Gyro Tech Specs:
- Weight: 3.7g / 0.13oz
- Shipping Weight: 0.05kg / 0.12lbs
- Product Height: 11mm / 0.43in
- Product Width: 21mm / 0.81in
- Product Length: 21mm / 0.81in
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05102754-3
- Barcode: 4513886040382
