Description

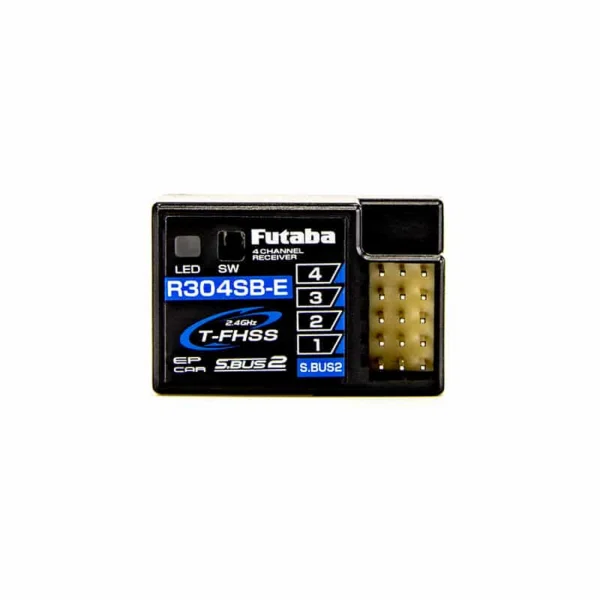

The Futaba R304SB 4-Channel S-BUS Receiver with integrated antenna is a compact T-FHSS telemetry unit optimised for indoor use, particularly smaller carpet-track cars where space is at a premium. Measuring just 35.1 x 23.2 x 12.5 mm and weighing only 7 g, it delivers reliable control in a tiny footprint. High-voltage capable and operable across 4.0–8.4 V, it suits a wide range of modern RC electronics, while S.BUS helps streamline wiring in tight installs.
Key Features
- T-FHSS telemetry system
- Integrated antenna
- Input voltage: 4.8–7.4 V
- High-voltage capable
- Compact size and lightweight (7 g)
Tech Specs
- Size: 35.1 x 23.2 x 12.5 mm
- Rated voltage: DC 4.8–7.4 V
- Operating voltage: DC 4.0–8.4 V
- Channels: 4
- Colour: Black
- Age recommendation: 14+
What's in the Box
- 1x R304SB-E 4-Channel Receiver
Suggested Compatibility
- Futaba T-FHSS telemetry radio systems
Important Notes
- Do not use the R304SB-E in GP cars.
- Use of analogue servos may cause servo trouble.
Secured by Stripe
Futaba R304SB 4 Channel S-BUS Receiver (Integrated Antenna) Manuals & Guides
Manuals & Guides
Specifications
R304SB-E– T-FHSS Telemetry System 4-Channel Receiver(Indoor Optimised for smaller carpet track type cars where space is at a premium!)
T-FHSS
Size:
35.1 x 23.2 x 12.5 mm
Weight:
7.0g
Rated Voltage:
DC 4.8V - 7.4V
Operating Voltage:
DC 4.0V - 8.4V
NEVER USE THE R304SB-E IN GP CARS
USE OF ANALOGUE SERVOS MAY CAUSE SERVO TROUBLE
Futaba R304SB 4 Channel S-BUS Receiver (Integrated Antenna) Key Features:
- Input Voltage: 4.8-7.4 V
- High Voltage
What's in the Box:
- 1x R304SB-E 4-Channel Receiver
Manuals & Parts Explosions:
Futaba R304SB 4 Channel S-BUS Receiver (Integrated Antenna) Tech Specs:
- Weight: 7g / 0.25oz
- Shipping Weight: 0.05kg / 0.10lbs
- Product Height: 13mm / 0.49in
- Product Width: 23mm / 0.91in
- Product Length: 35mm / 1.38in
- Age Recommendation: 14+
- Channels: 4
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05102601-3
- Barcode: 4513886026003
- Frequency: 2.4Ghz
- Channels: 4 Channel
