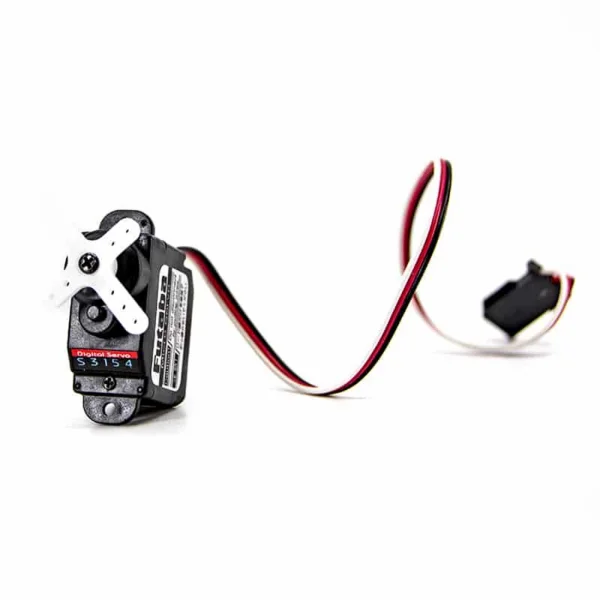

Futaba S3154 Sub-Micro Digital Servo 1.7kg/0.09s (4.8–6V)
Brand: Futaba
Part No: FUT05102308-3
Shadow Stock: Usually ships next day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Futaba S3154 Sub-Micro Digital Servo 1.7kg/0.09s 4.8V - 6V
Description
The Futaba S3154 is a sub-micro digital air servo for small electric powered models, combining precise control with fast transit in a compact, lightweight form. Operating on 4.8–6.0V, it offers swift 0.10–0.09s/60° speed and up to 1.7 kgf cm torque, making it well-suited to lightweight RC aircraft where space and weight are critical. Part number: FUT05102308-3.
Key Features
- Sub-micro digital servo for small electric powered models
- Size: 21.8 × 11.0 × 19.8 mm
- Weight: 7.9 g
- Torque: 1.5 kgf cm (4.8V) / 1.7 kgf cm (6.0V)
- Speed: 0.10 s/60° (4.8V) / 0.09 s/60° (6.0V)
Tech Specs
- Dimensions (in): 0.86 × 0.43 × 0.78 in
- Weight: 7.9 g / 0.28 oz
- Speed (oz-in reference): 0.10 s/60° at 4.8V / 0.09 s/60° at 6.0V
- Torque: 20.8 oz-in at 4.8V / 23.5 oz-in at 6.0V
- Servo size: Sub-Micro
- Colour: Black
- Age recommendation: 14+
- Shipping weight: 0.02 kg / 0.05 lbs
What’s in the Box
- 1 × S3154 Sub-Micro Digital Servo
- Horns
- Mounting hardware
Important Notes
- Not for gas-powered engine models or applications requiring high torque
- Do not exceed 6.0V and avoid sustained high loads to preserve service life
- Use only the servo horn designed for this micro servo
- Avoid excessive force or shock to prevent gear damage
Secured by Stripe
Futaba S3154 Sub-Micro Digital Servo 1.7kg/0.09s 4.8V - 6V Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
S3154– Micro Digital Air ServoFor Small Electric Powered Models
Speed:
0.10 sec/60° at 4.8V
0.09 sec/60° at 6.0V
Torque:
20.8 oz/in at 4.8V
23.5 oz/in 6.0V
Size:
0.86 x 0.43 x 0.78 in
Weight:
0.27 g
The S3154 servo is a micro servo for small electronicmodels. Pay special attention to the following points:
- Do not use with gas powered engine models or other models that require high torque
- Using supply voltage higher than 6.0V or applying high loads to the servo willshorten the life.
- Always use the servo horn specifically designed for this micro servo. Do not useconventional servo horns.
- Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
Futaba S3154 Sub-Micro Digital Servo 1.7kg/0.09s 4.8V - 6V Key Features:
- Size: 21.8×11.0×19.8mm
- Weight: 7.9g
- Torque: 1.5kgf cm (4.8V) / 1.7kgf cm (6.0V)
- Speed: 0.10sec/60° (4.8V) / 0.09sec/60° (6.0V)
What's in the Box:
- 1x S3154 Sub-Micro Digital Servo
- Horns
- Mounting Hardware
Manuals & Parts Explosions:
Futaba S3154 Sub-Micro Digital Servo 1.7kg/0.09s 4.8V - 6V Tech Specs:
- Weight: 7.9g / 0.28oz
- Shipping Weight: 0.02kg / 0.05lbs
- Product Height: 20mm / 0.78in
- Product Width: 11mm / 0.43in
- Product Length: 22mm / 0.86in
- Servo Size: Sub-Micro
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05102308-3
- Barcode: 4513886013027
