Description

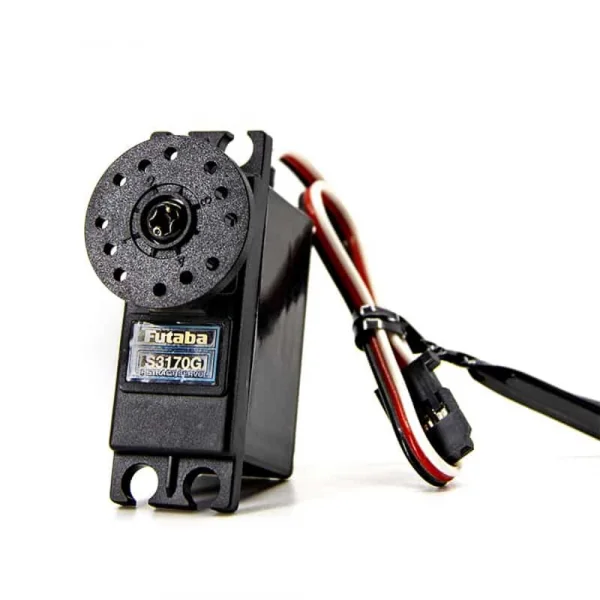

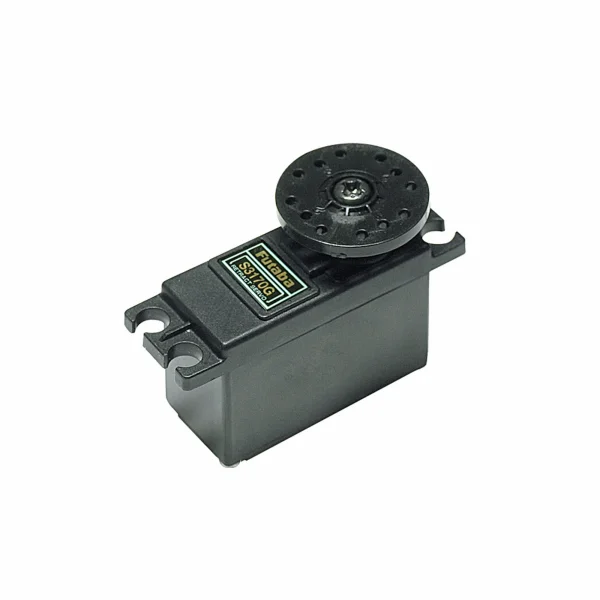

The Futaba S3170G Mini Digital Retract Servo MG (part number FUT05102422-1) is a low-speed, high-torque metal planetary gear servo for operating retracts on model aeroplanes.

On a 4.8V supply the servo is rated at 0.57 seconds per 60° with 7.0 kgf/cm of torque. At 6.0V it becomes quicker and stronger, reaching 0.47 seconds per 60° and 8.5 kgf/cm. It is a mini-size servo in black, weighing just 26 g, so it is easy to place in a compact airframe. Futaba recommends it for ages 14 and over.

The servo is supplied with horns and mounting hardware, and the horn set screw is 3 mm x 8 mm.

Specifications

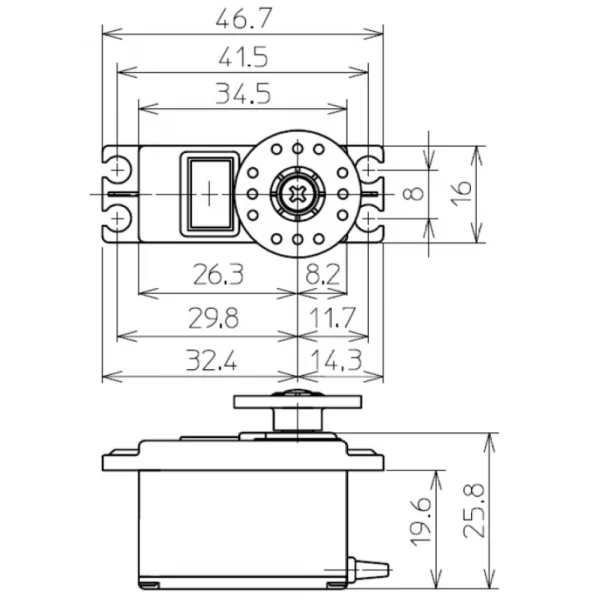

  • Size: 34.5 x 16 x 25.8 mm
  • Weight: 26 g
  • Torque: 7.0 kgf/cm (4.8V) / 8.5 kgf/cm (6.0V)
  • Speed: 0.57 sec/60° (4.8V) / 0.47 sec/60° (6.0V)

What's Included

  • S3170G Mini Digital Retract Servo
  • Horns
  • Mounting hardware
Secure Payments

Secured by Stripe

Futaba S3170G Mini Digital Retract Servo MG - 8.5kg - 0.47s Manuals & Guides

Manuals & Guides

Specifications

S3170G– Standard Analog Airplane Retract Servo
Low Speed High Torque Metal Planetary Gear Servo

Use the horn set screw supplied with the sevo. Screw size: 3mm x 8mm.

Speed:
0.57 sec/60° (4.8V)
0.47 sec/60° (6.0V)

Torque:
7.0 kgf/cm (4.8V)
97.2 ozf/in (4.8V)
8.5 kgf/cm (6.0V
118.1 ozf/in (6.0V)

Size:
34.5 x 16 x 25.8 mm
1.36 x 0.63 x 1.02

Weight:
26 g
0.92 oz

Futaba S3170G Mini Digital Retract Servo MG - 8.5kg - 0.47s Key Features:

  • Size: 34.5×16.0×25.8mm
  • Weight: 26g
  • Torque: 7kgf cm (4.8V) / 8.5kgf cm (6.0V)
  • Speed: 0.57sec/60° (4.8V) / 0.47sec/60° (6.0V)

What's in the Box:

  • 1x S3170G Mini Digital Retract Servo
  • Horns
  • Mounting Hardware

Futaba S3170G Mini Digital Retract Servo MG - 8.5kg - 0.47s Tech Specs:

  • Weight: 26g / 0.92oz
  • Shipping Weight: 0.07kg / 0.15lbs
  • Product Height: 26mm / 1.02in
  • Product Width: 16mm / 0.63in
  • Product Length: 35mm / 1.36in
  • Servo Size: Mini
  • Age Recommendation: 14+
  • Colour: Black
  • Material: Plastic


    Key Info:
    • Brand: Futaba
    • Part No: FUT05102422-1
    • Barcode: 4513886016240
