Description

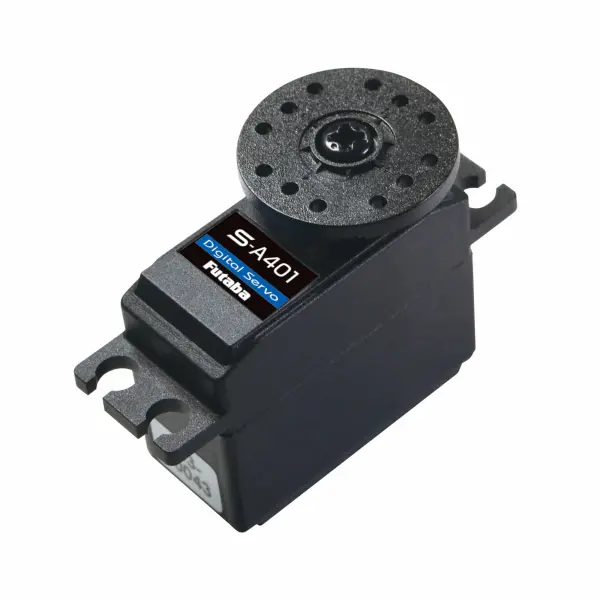

The Futaba S-A401 Mini Coreless Digital Servo PWM/S.Bus2 5.7kg 0.10s 6.0V - 7.4V, part FUT05102764-3, is a digital radio control servo for PWM and S.Bus2 systems. It uses a coreless motor, metal gears and an aluminium spline, with a twin bearing-supported output shaft. The servo operates across a rated voltage range of 6.0V to 7.4V and provides the speed and torque figures detailed below.
At 6.0V, the S-A401 has a speed of 0.12 seconds per 60 degrees and torque of 62.5oz/in. At 7.4V, speed increases to 0.10 seconds per 60 degrees, with torque rated at 79.2oz/in. Its mini format and stated dimensions make the servo suitable for installations where the available space needs to be considered.
Specifications
- Operating voltage: 6.0V–7.4V
- Speed: 0.12 sec/60° at 6.0V; 0.10 sec/60° at 7.4V
- Torque: 62.5oz/in at 6.0V; 79.2oz/in at 7.4V
- Dimensions: 33.0 x 15.0 x 27.5mm
- Weight: 27g
Secured by Stripe
Futaba S-A401 Mini Coreless Digital Servo PWM/S.Bus2 5.7kg 0.10s 6.0V - 7.4V Manuals & Guides
Specifications
With an emphasis on its modest size coupled with hugely respectable torque and speed ratings the S-A401 is the sort of servo you buy when you're looking for a fit-n-forget installation that'll still be doing its thing decades into the future. It's a servo that'll reward your investment with precision, silky-smooth operartion and durability.
Specification:
| Speed at 6.6V (sec): | 0.12 |
| Speed at 7.4V (sec): | 0.10 |
| Torque at 6.6V (kg.cm): | 5.0 |
| Torque at 7.4V (kg.cm): | 5.7 |
| Spline (teeth): | 25 |
| Input Voltage (V): | 4.8 to 8.4 |
Futaba S-A401 Mini Coreless Digital Servo PWM/S.Bus2 5.7kg 0.10s 6.0V - 7.4V Features:
- Metal gear.
- Aluminium spline.
- S.Bus2 compatible.
- Coreless motor.
- Twin bearing supported shaft.
- High operating voltage (8.4V).
- Programmable.
- Soft Start.
Key Info:
- Brand: Futaba
- Part No: FUT05102764-3
- Barcode: 4513886041594
