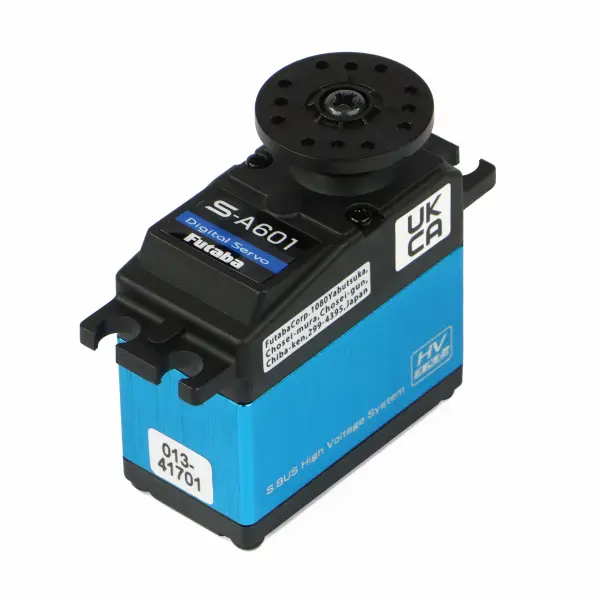

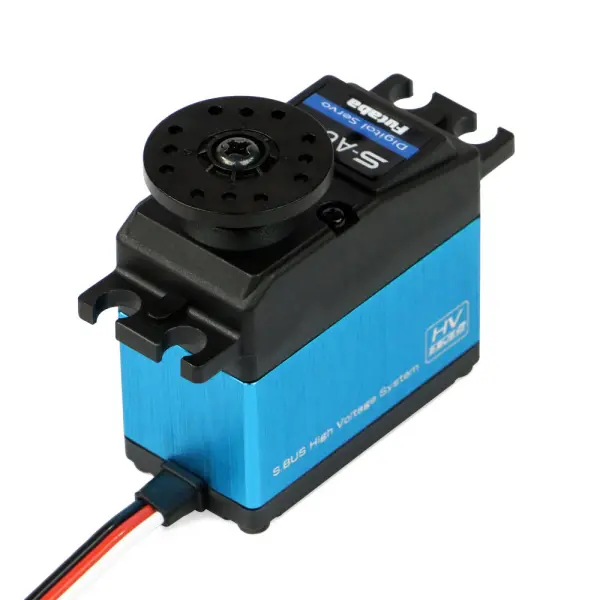

Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V — image 1 of 3
Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V — image 2 of 3
Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V — image 3 of 3
Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V
Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V
Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V

Futaba S-A601 Coreless Digital Servo

Brand: Futaba

Part No: FUT05102750-3

£123.49 RRP £129.99

Usually ships next day

UK Delivery
Get it by Tuesday 13th Oct (Order within 13h 29m)
Store Collection (Cannock)
Monday 12th Oct, once stock arrives

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Customers Also Buy

Popular with customers who buy products like the Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V

Servo Reverser Servo Reverser
£10.44
Futaba Screen Protection Sheet 10PX Futaba Screen Protection Sheet 10PX
£7.13
Futaba S-U305 Standard Digital Servo MG PWM/S.BUS2 8.9kg 0.18s 4.8V - 6.0V (Bulk) Futaba S-U305 Standard Digital Servo MG PWM/S.BUS2 8.9kg 0.18s 4.8V - 6.0V (Bulk)
£28.49
Futaba SBC HUB 100mm S.Bus Hub Lead Futaba SBC HUB 100mm S.Bus Hub Lead
£20.89
Futaba Trainer Lead (Square to Square Micro) Futaba Trainer Lead (Square to Square Micro)
£18.99
Futaba Battery Lid (for T8J) Futaba Battery Lid (for T8J)
£4.74
Futaba 2.4GHz Rx Antenna for Air receiver 150mm Futaba 2.4GHz Rx Antenna for Air receiver 150mm
£5.69
Futaba Upper/Bottom Servo Case Set S3003 Futaba Upper/Bottom Servo Case Set S3003
£2.84
Schumacher Foam Tyre Insert - Medium - 1:10 Buggy Rear (2) Schumacher Foam Tyre Insert - Medium - 1:10 Buggy Rear (2)
£1.89
Futaba R304SBS-E 4 Channel S-BUS Receiver (Integrated Antenna) Futaba R304SBS-E 4 Channel S-BUS Receiver (Integrated Antenna)
£42.75
Futaba R404SBS-E F-4G S BUS Telemetry Receiver Futaba R404SBS-E F-4G S BUS Telemetry Receiver
£65.25
Futaba S-U300 Standard Digital Servo PWM/S.Bus2 - 4.5kg - 0.19s Futaba S-U300 Standard Digital Servo PWM/S.Bus2 - 4.5kg - 0.19s
£15.51
Futaba 3PV With R304SB Receiver Futaba 3PV With R304SB Receiver
£112.49

Description

The Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V (FUT05102750-3) is a programmable digital servo for radio-controlled models. It uses a coreless motor, metal gears, dual ball bearings and an anodised metal centre case. PWM and S.Bus2 support provide two control and programming options, while soft start technology is included for servo operation.

The servo delivers 41.0 kg.cm of torque at 7.4V and 36.8 kg.cm at 6.6V. Its speed is 0.11 seconds at 7.4V and 0.12 seconds at 6.6V. The input voltage range is 4.8 to 8.4V, with a 25-tooth spline and a standard case size.

What's Included

  • Coreless digital servo

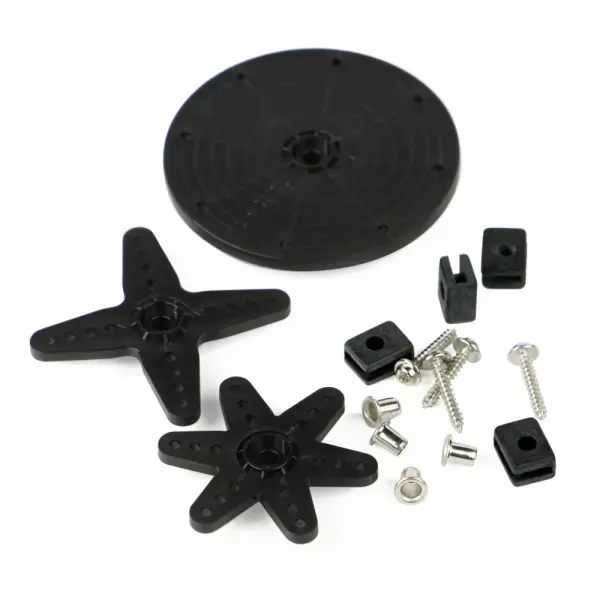

  • Horn and mounting screw set
  • Instruction sheet
  • Channel ID decal sheet
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

With an incredible 41 kg.cm of torque at 7.4V the S-A601 offers, arguably, the perfect balance between, size, torque, cost and quality. Dual ball raced with metal gears and an anodised metal case centre, the 601 is programmable, supports S.Bus2 and features soft start technology. Favoured by pilots of large scale aircraft who demand a robust and responsive control system, the S-A601, with its S.Bus2 compatibility, allows easy programming, clean wiring integration and ultimate peace of mind.

Specification:

Speed at 6.6V (sec):0.12
Speed at 7.4V (sec):0.11
Torque at 6.6V (kg.cm):36.8
Torque at 7.4V (kg.cm):41.0
Spline (teeth):25
Input Voltage (V): 4.8 to 8.4

Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V Features:
  • High operating voltage (8.4V).
  • High torque.
  • Supports S.Bus2.
  • Soft start.
  • Dual ball raced.
  • Programmable.
  • Standard case size.
Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V Includes:
  • 1x S9177SV Coreless Digital Servo.
  • 1x Horn and mounting screw set.
  • 1x Instruction sheet.
  • 1x Channel ID decal sheet.


Key Info:
  • Brand: Futaba
  • Part No: FUT05102750-3
  • Barcode: 4513886039744
