Description

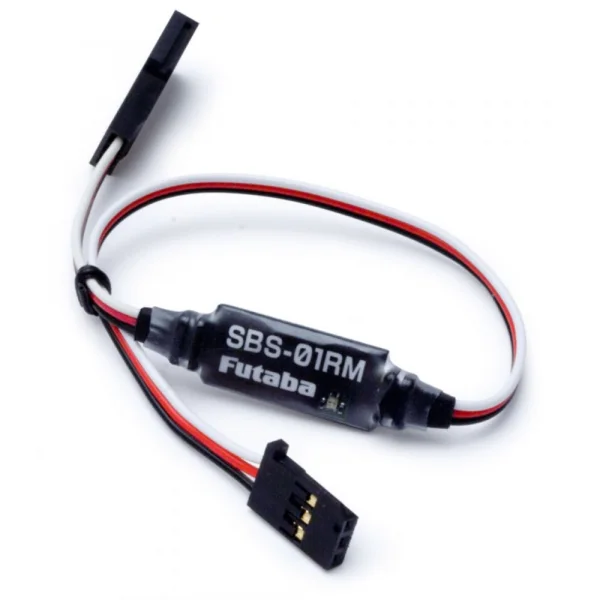

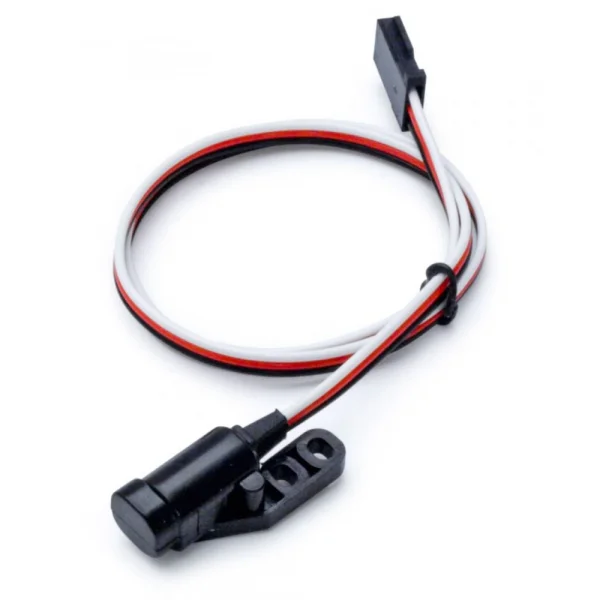

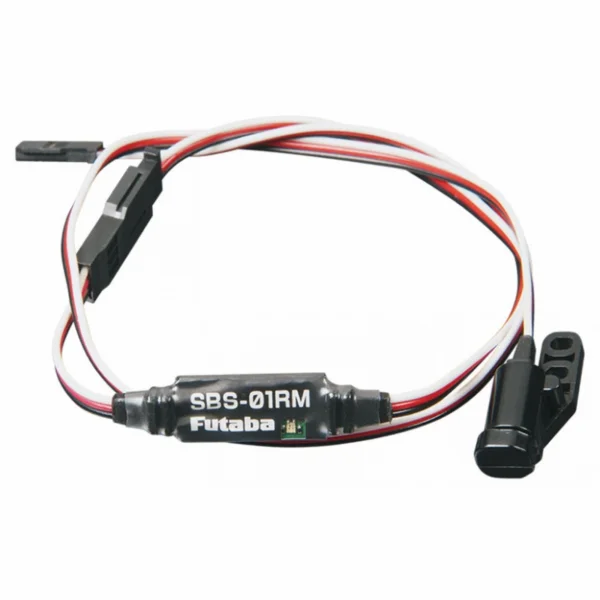

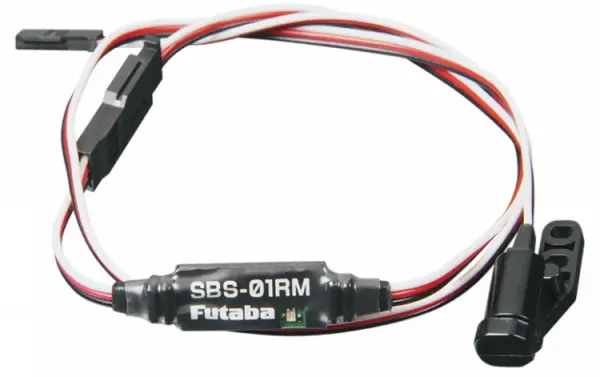

The Futaba SBS-01RM is a compact magnet-type RPM sensor for monitoring rotational speed of an attached engine, motor or similar component. Supplied under part number FUT05102559-1, it delivers reliable RPM feedback for telemetry-equipped set-ups.
With a wide measurement range and lightweight, slim lead, the SBS-01RM is easy to position and integrate in space-limited models. It operates from 3.7–7.4 V and weighs just 4.7 g.
Specifications
- Sensor type: Magnetic RPM sensor
- Use: Indicates the number of rotations of the item to which it is attached (engine, motor, etc.)
- Measurement range: 360–100,000 RPM/blades
- Lead length: 255 mm (10.0 in)
- Weight: 4.7 g (0.16 oz)
- Operating voltage: DC 3.7–7.4 V
- Colour: Black
- Shipping weight: 0.02 kg (0.05 lb)
Secured by Stripe
Futaba SBS-01RM Telemetry Magnetic RPM Sensor (360 to 50, 000rpm) Manuals & Guides
Manuals & Guides
Specifications
SBS-01RM: Magnetic RPM Sensor
Magnet-type RPM Sensor
Use:
Indicates the number of rotations of the item (engine, motor, etc.) to which it is attached.
Range:
360 ~ 100,000 RPM/blades
Length:
255 mm
10.0 in
Weight:
4.7 g
0.16 oz
Voltage:
DC 3.7 ~ 7.4V
Futaba SBS-01RM Telemetry Magnetic RPM Sensor (360 to 50, 000rpm) Tech Specs:
- Shipping Weight: 0.02kg / 0.05lbs
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05102559-1
- Barcode: 4513886023675
