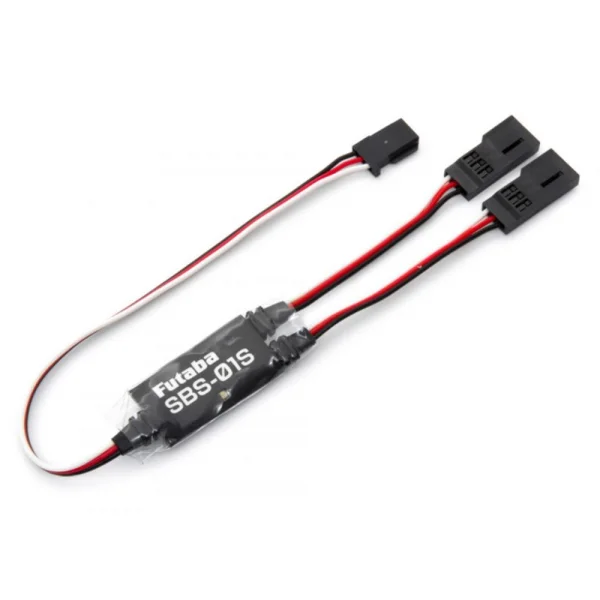

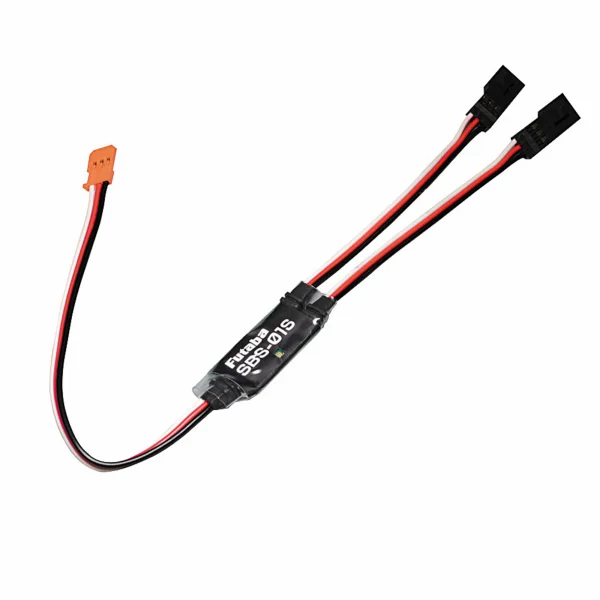

Futaba SBS-01S Telemetry Servo Sensor
Brand: Futaba
Part No: FUTEBB1140
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Futaba SBS-01S Telemetry Servo Sensor (Current/Operation/Temperature)
Description
The Futaba SBS-01S Telemetry Servo Sensor lets you view a connected S.Bus2 servo’s current, operation and temperature directly at the transmitter. Compact and lightweight, this sensor is ideal for monitoring servo load and performance on RC models. Part number FUTEBB1140 helps identify the exact Futaba accessory for your setup.
Key Specifications
- Measured Parameters: Current, operation, temperature
- Current: ~DC 10.0 A
- Temperature Range: -10°C to 115°C
- Operating Voltage: DC 3.7–7.4 V
- Lead Length: 300 mm (11.8 in)
- Weight: 9.6 g (0.3 oz)
- Colour: Black
- Age Recommendation: 14+
Suggested Compatibility
- S.Bus2 servos (excluding S.Bus2 760 µs neutral servos)
Important Note
- Cannot be used with S.Bus2 760 µs neutral servos.
What's In The Box
- 1x SBS-01S Telemetry Servo Sensor
Secured by Stripe
Futaba SBS-01S Telemetry Servo Sensor (Current/Operation/Temperature) Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
SBS-01S: Servo Information Sensor
Use:
S.Bus2 Servo's current, operation and temperature can be checked at the transmitter.
Current:
~DC 10.0A
Temperature:
-10°C ~ 115°C
Length:
300 mm
11.8 in
Weight:
9.6 g
0.3 oz
Voltage:
DC 3.7 ~ 7.4V
Cannot be used with S.Bus2 760 μs neutral servos.
What's in the Box:
- 1x SBS-01S Telemetry Servo Sensor
Futaba SBS-01S Telemetry Servo Sensor (Current/Operation/Temperature) Tech Specs:
- Shipping Weight: 0.02kg / 0.05lbs
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUTEBB1140
- Barcode: 4513886307911
