Futaba S-U400 Standard Digital HV Servo PWM/S.Bus2 - 7.9kg - 0.13s

Futaba S-U400 Standard Digital HV Servo PWM/S.Bus2 - 7.9kg - 0.13s

Brand: Futaba

Part No: FUT05102678-3

£30.55 ~~RRP £32.50~~

Shadow Stock: Usually ships next day

Collect Instore

Request Price Match Ask a Question Write a Review

The Futaba S-U400 Standard Digital HV Servo (FUT05102678-3) is a versatile airplane servo supporting both PWM and S.Bus2 control. Delivering up to 7.9kgf·cm torque at 7.4V with a quick 0.13sec/60° transit time, it pairs plastic gearing with a 6mm/25T spline and a 3‑pole cored motor in a compact, standard-size case weighing just 39g.

Key Features

Digital HV airplane servo with PWM and S.Bus2 capability
Torque: 7.9kgf·cm (7.4V) / 7.1kgf·cm (6.6V)
Speed: 0.13sec/60° (7.4V) / 0.14sec/60° (6.6V)
Standard size: 40.0 × 20.0 × 38.1mm
Lightweight: 39g
Plastic gearing, 6mm/25T spline
3‑pole cored motor
Colour: Black
Age recommendation: 14+

What’s Included

1× S-U400 Standard Digital Servo
Horns
Mounting hardware

Tech Specs

Servo size: Standard
Dimensions: 40mm (L) × 20mm (W) × 38mm (H)
Weight: 39g (1.38oz)
Speed: 0.14sec/60° (6.6V); 0.13sec/60° (7.4V)
Torque: 98.6 oz/in (6.6V); 109.7 oz/in (7.4V)
Shipping weight: 0.06kg (0.14lb)
Material: Plastic

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

S-U400– Standard Digital and S.Bus2 Capable Airplane Servo with Accessory Pack

Plastic Gearing
6mm/25T Spline
3Pole Cored Motor

Speed:
0.14 sec/60° (6.6V)
0.13 sec/60° (7.4V)

Torque:
98.6 oz/in (6.6V)
109.7 oz/in (7.4V)

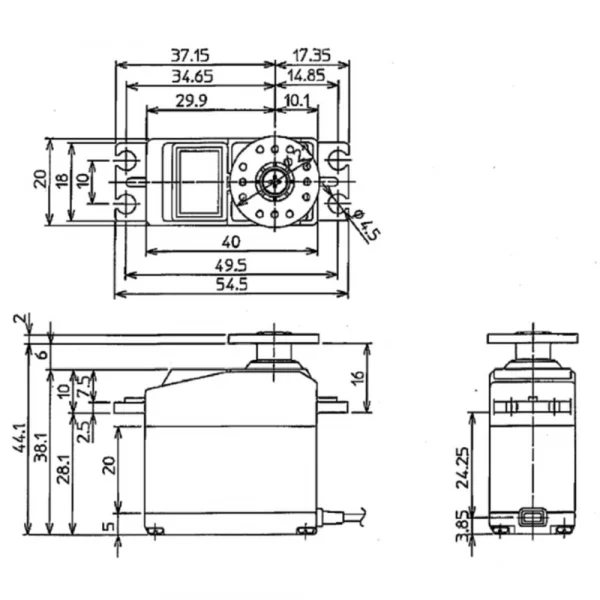

Size:
40.3 x 20.0 x 38.1 mm
1.59 x 0.79 x 1.50 in

Weight:
39.1 g
1.38 oz

Futaba S-U400 Standard Digital HV Servo PWM/S.Bus2 - 7.9kg - 0.13s Key Features:

Size: 40.0×20.0×38.1mm
Weight: 39g
Torque: 7.9kgf cm (7.4 V) / 7.1kgf cm (6.6V)
Speed: 0.13sec/60° (7.4V) / 0.14sec/60° (6.6V)

What's in the Box:

1x S-U400 Standard Digital Servo
Horns
Mounting Hardware

Futaba S-U400 Standard Digital HV Servo PWM/S.Bus2 - 7.9kg - 0.13s Tech Specs:

Weight: 39g / 1.38oz
Shipping Weight: 0.06kg / 0.14lbs
Product Height: 38mm / 1.50in
Product Width: 20mm / 0.79in
Product Length: 40mm / 1.57in

Servo Size: Standard
Age Recommendation: 14+
Colour: Black
Material: Plastic

Key Info:

Brand: Futaba
Part No: FUT05102678-3
Barcode: 4513886033490
Max Voltage: 7.4v+ (LiPo)
Gear Material: Plastic
